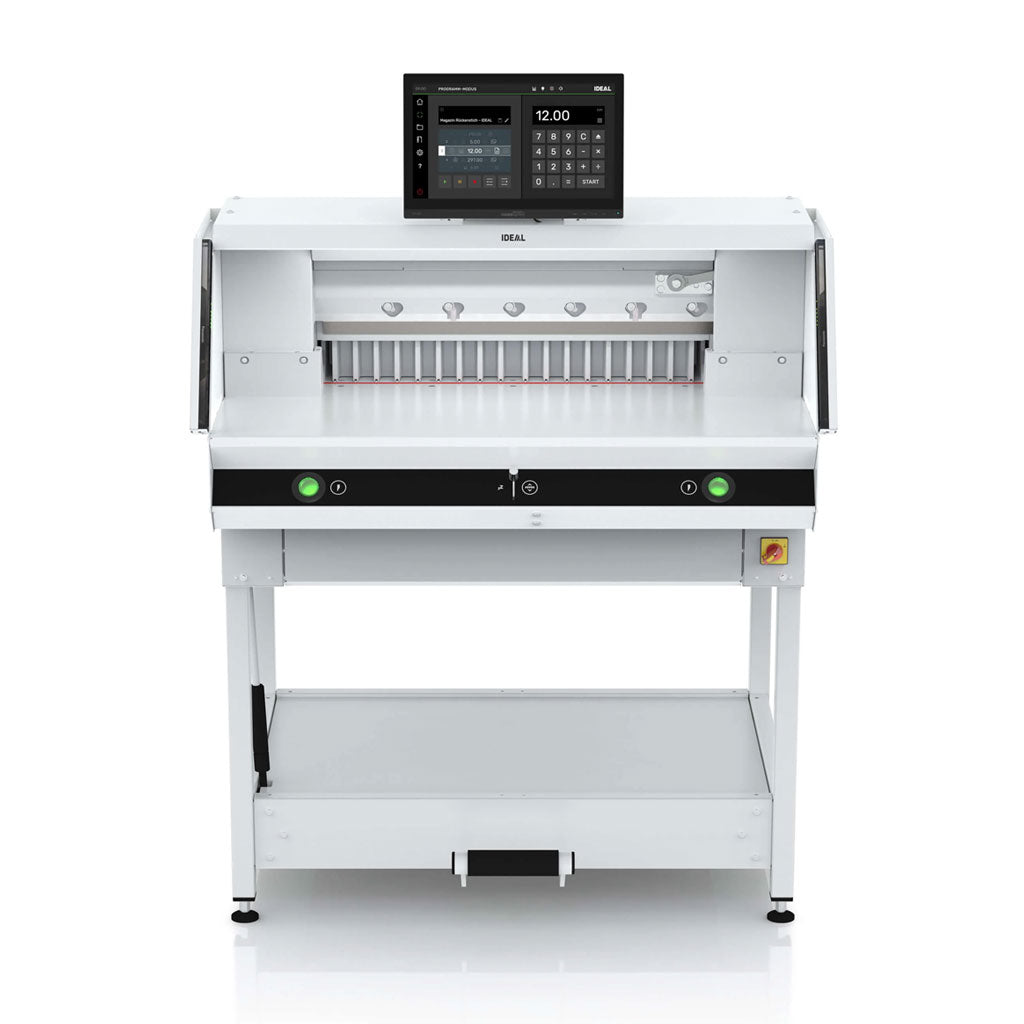

Ideal The 68 Guillotine

The IDEAL THE 68 is a programmable, state-of-the-art stack cutter – designed for the highest demands on efficiency, ease of operation, and precision. With a cutting length of 680 mm and a cutting height of up to 80 mm, this model is ideal for printing companies, bookbinders, and finishers with regularly high cutting volumes.

Experience faster, smarter, and more intuitive cutting with the new Ideal 68 programmable guillotine.

Featuring a large 15.6-inch touchscreen display, it offers tablet-like touch and swipe controls for effortless programming, project management, and operation. Designed with user-friendly digital functions and intuitive controls, this next-generation guillotine helps increase productivity while simplifying everyday workflows.

Its precision electro-mechanical blade drive and hydraulic clamp drive deliver accurate, reliable performance, while the integrated IR light beam safety curtain provides enhanced operator safety during use.

The guillotine offers both programmable and manual back-gauge positioning, complemented by a 680 mm table depth for efficient handling of materials. The adjustable back-gauge features narrow separations and plastic gliders to ensure smooth, precise positioning.

For complete control, the hydraulic clamp bar features infinitely programmable clamping pressure, easily adjusted via the touchscreen to suit different materials. An electronically controlled false clamp plate is ideal for delicate work, ensuring even distribution of clamping force and protecting sensitive materials from damage.

Thanks to its solid all-metal construction, an ergonomically adjustable working height (950–1000 mm) and durable components, the THE 68 is particularly robust and sustainable – with long-term spare parts supply and excellent repairability. A future-proof cutting system for professional use "Made in Germany".

Highlights

• Cutting length - 680mm.
• Cutting height - 80mm - 77mm with false clamp.
• Narrow cut - 15mm - 60mm with false clamp.
• Table depth - 680mm.
• Table dimensions: 430 mm front table depth, 375 mm usable
• Ideal for Sheet Sizes up to B2 (707 x 500 mm).
• Cuts up to 80 mm of 80gsm (Appox 800 sheets).
• Large 15.6" touch screen display (1366 x 768 pixels).
• Pin electric code lock to secure the machine.
• Switch between measuring units - mm, cm, inch.
• Power back gauge.
• Independent mechanical foot clamp for Pre-Clamping Requirements. (Perfect for Cutting Awkward Stock).

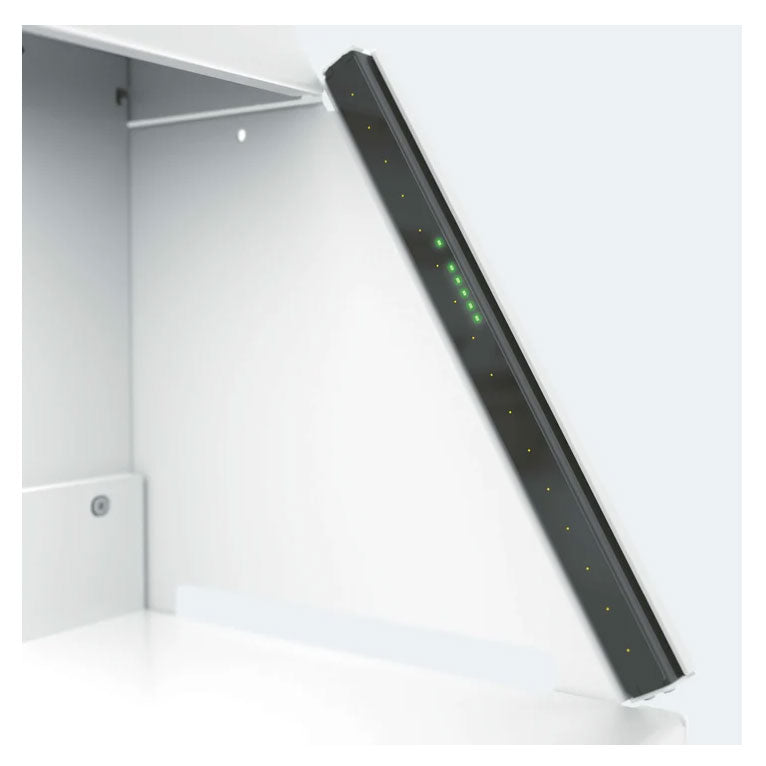

• IR safety curtain on front table..

• Electric cut
• Hydraulic clamp with fully adjustable clamping pressure from 250 to 1,000 daN controlled via Tablet.

• Easy to use touch pad programming with 15.6" multi-touch display.

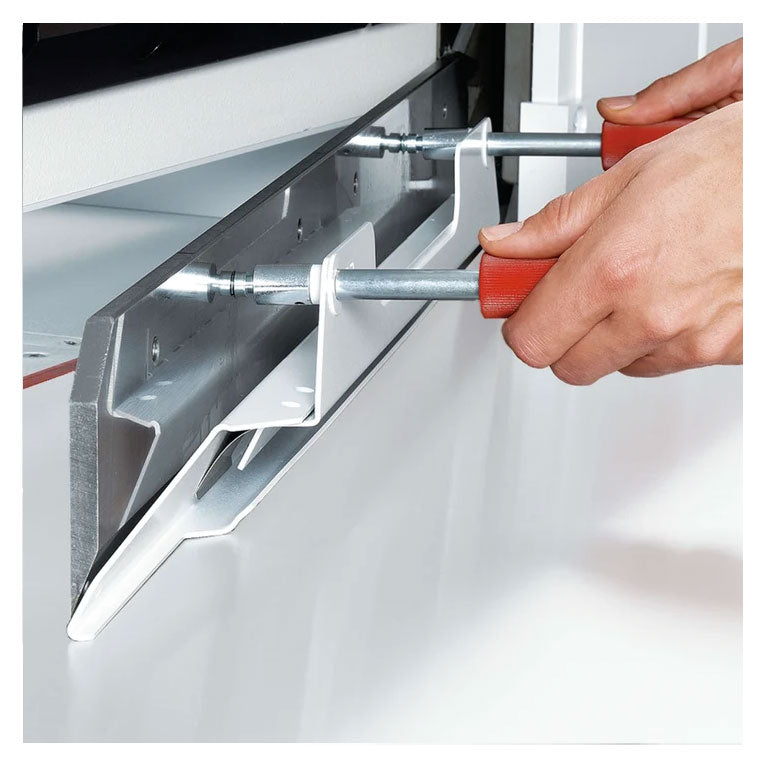

• Safe blade change.
• Intergrated tool storage for blade changing at the front of the machine.
• Made in Germany.

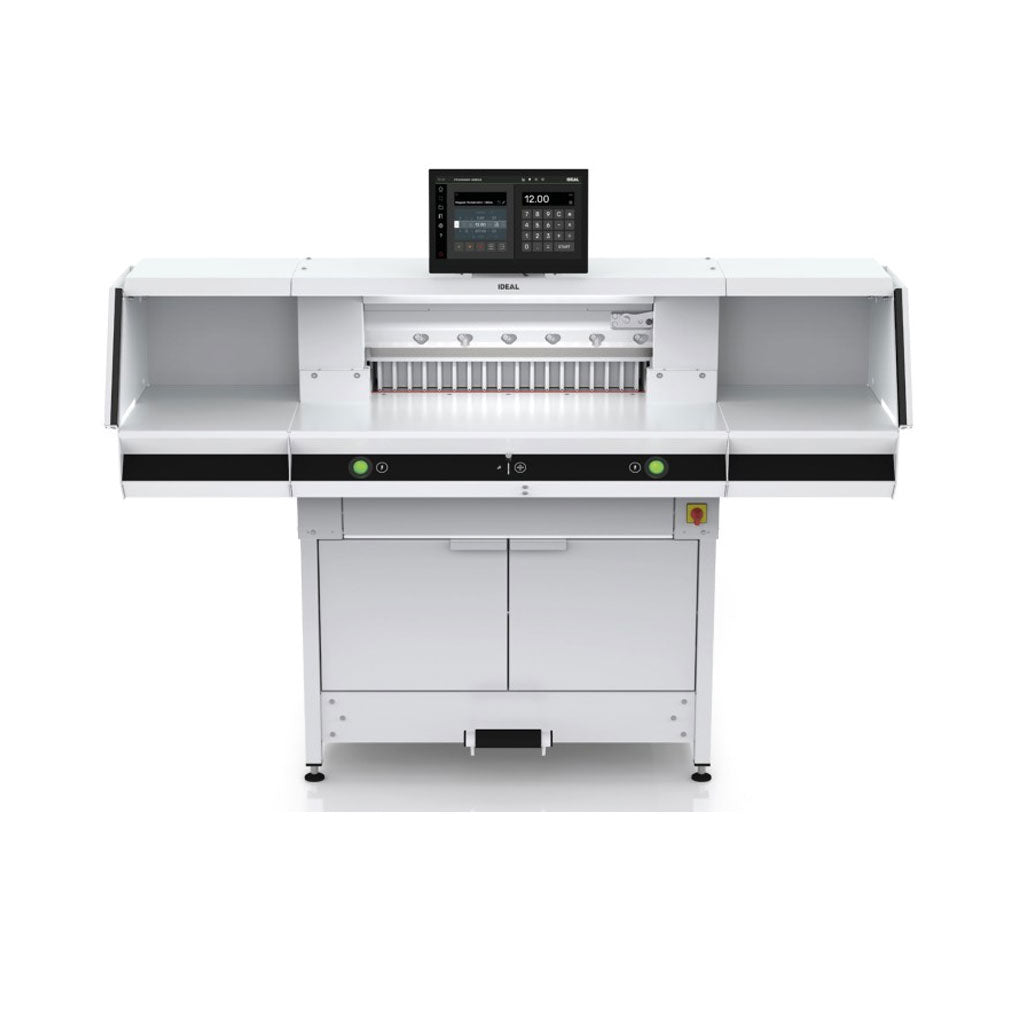

• Large Working Area with Optional Side Table Extensions & cladding panels for stand (see below image).


Dimensions: 1523 x 1099 x 1331 mm (H x W x D), width with extension table 1899 mm
Weight: 330 kg, 343 kg with additional tables, 343 kg with cladding, 356 kg with cladding and additional tables
