*NOT AVAILABLE FOR ONLINE PURCHASE* IDEO10

Ideal-EBA 5255 Electric Guillotine


View or download a PDF for this product Download PDF

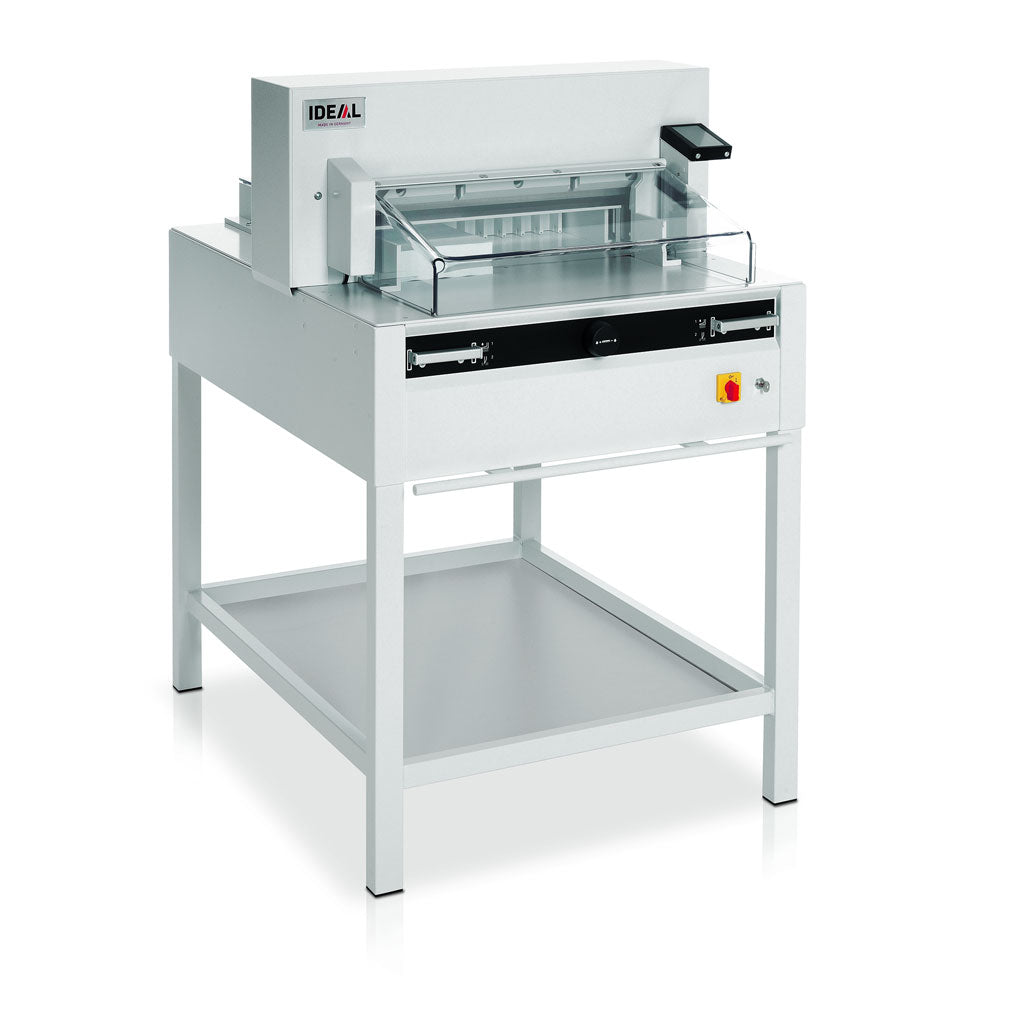

The new Ideal 5255 sets a new standard for the 520mm width electric guillotine.

Equipped with the new, patented EASY-CUT blade activating bars for convenient and safe cutting.

The ergonomic working height of 94 cm guarantees effortless, fatigue-free operation. Comprehensive SCS safety package: hinged, electronically controlled safety guard on the front table; safety cover on the rear table; main switch and safety lock with key; electronically controlled true two-hand operation; 24 volt controls (low voltage); patented safety drive; automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device with covered cutting edge; blade depth adjustment from the outside of the machine; easy blade and cutting stick change from the front of the machine without removing covers.

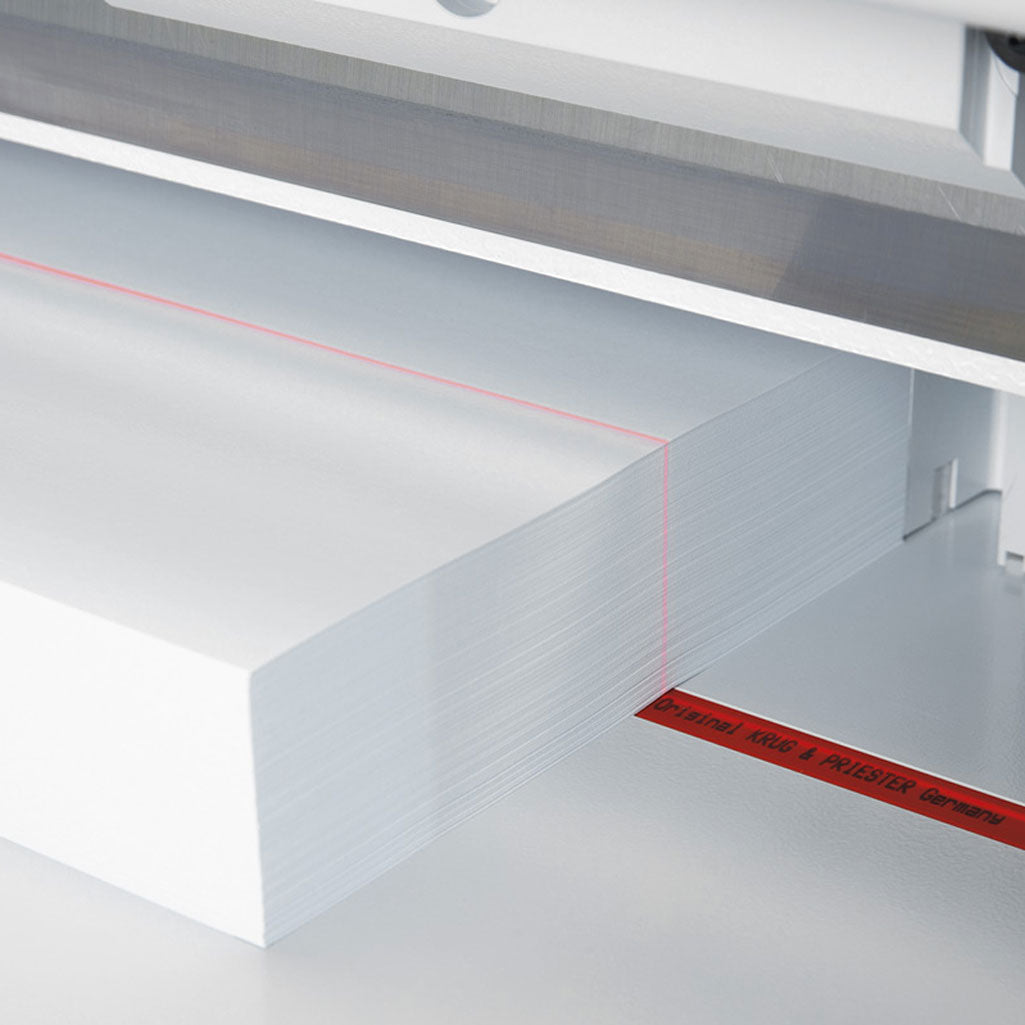

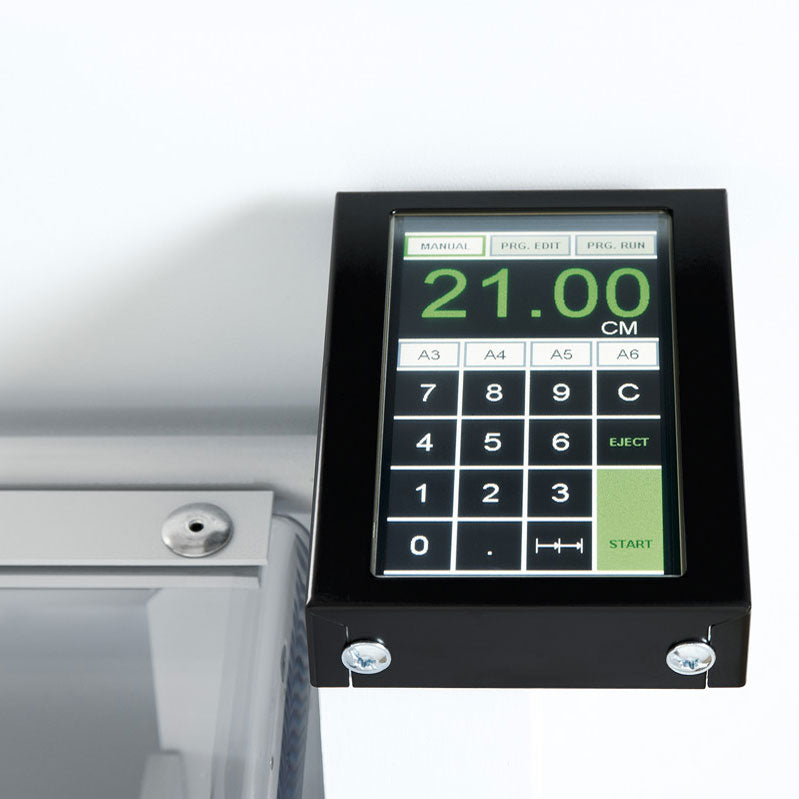

Electric backgauge drive with touch pad for easy setting, multilingual operator guidance and digital display. Measurement readout in cm or inches (display accurate to 1/10 mm or 1/100 inch). 99 programs with 99 steps in each program (up to 15 repeat cuts can be integrated into a program as one single program step). Program runs automatically. 10-button key pad for presetting of measurement. Pre-programmed measurements for A3 to A6 standard paper sizes. Memory key for repeat cuts. Automatic SET function for reference measurement via start button. Programmable EJECT function - for pushing out the paper. Self-diagnostic system with error indication on display. Electronic hand wheel for manual backgauge positioning with infinitely variable speed control (from very slow to very fast). Electro-mechanical blade and clamp drive. Blade made of German high quality steel. Solid steel blade carrier and adjustable blade guides. Adjustable backgauge with narrow separations and plastic gliders. Optical cutting line with bright and durable LEDs. Two side lays each on front and rear tables.

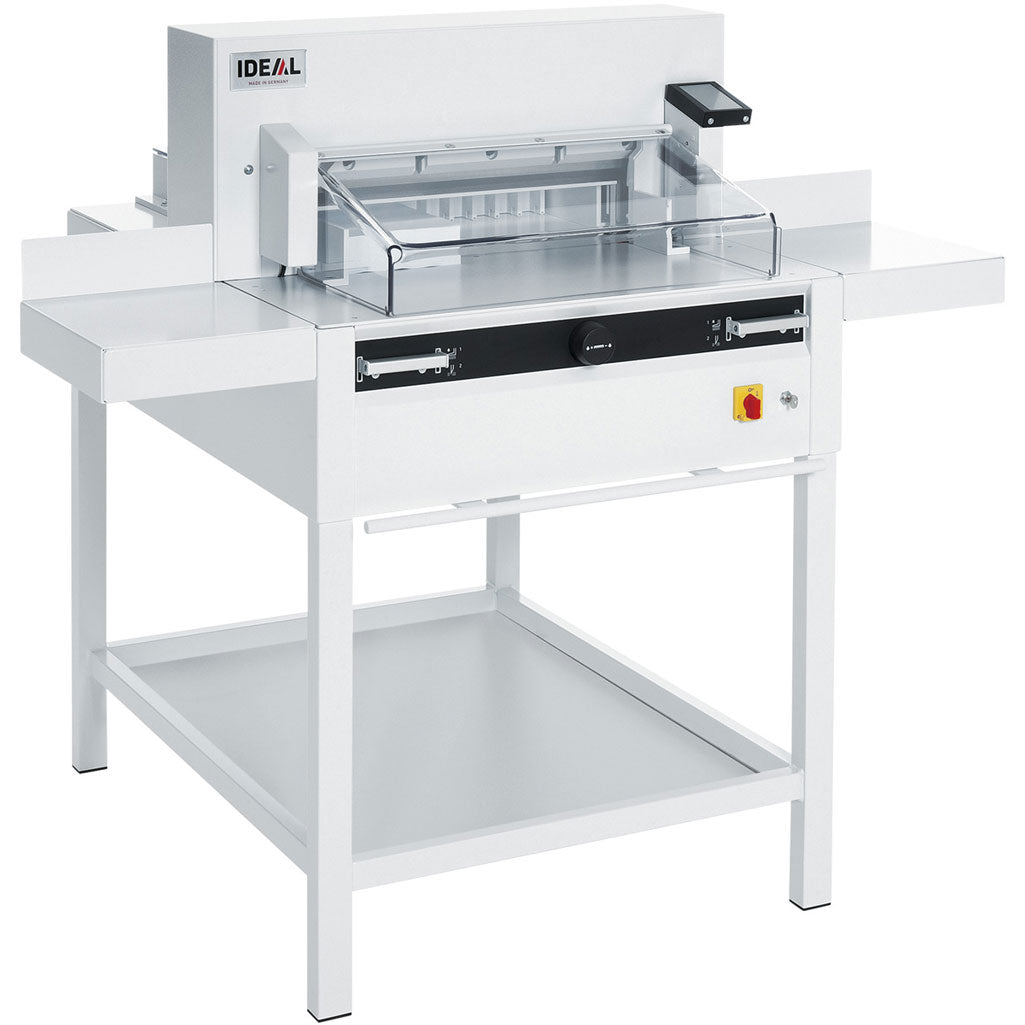

Solid all-metal construction. Complete with stand, storage shelf, practical tool holder and stacking angle. Optional set of side tables available at an extra cost.

Why Buy?

Need to cut SRA2 in half? then this guillotine may be for you

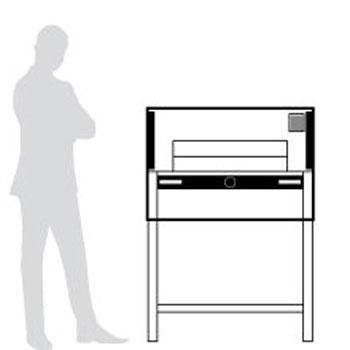

The ergonomic working height of 94 cm guarantees effortless, fatigue-free operation.
Moreover, the automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device with covered cutting edge; blade depth adjustment from the outside of the machine; easy blade and cutting stick change from the front of the machine without removing covers. 99 programs with 99 steps in each program (up to 15 repeat cuts can be integrated into a program as one single program step). Program runs automatically.

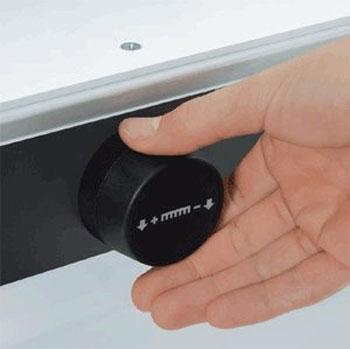

Electronic hand wheel for manual backgauge positioning with infinitely variable speed control (from very slow to very fast). Electro-mechanical blade and clamp drive.
Solid steel blade carrier and adjustable blade guides. Adjustable backgauge with narrow separations and plastic gliders.


  • Cutting length - 520mm
  • Cutting height - 80mm
  • Narrow cut - 35mm
  • Table depth - 520mm
  • Electric back gauge
  • Electro-mechanical cut
  • Electro-mechanical clamp
  • Transparent safety guard
  • Touch pad programming
  • Optional side tables



Available now our new showroom IDEAL 5255 at a very special price

RRP £7367 save over £2,300

buy now for just

£4995

'We are one of the UK 's longest established IDEAL guillotine suppliers'
You may even be able to part exchange trade-in your old guillotine.
