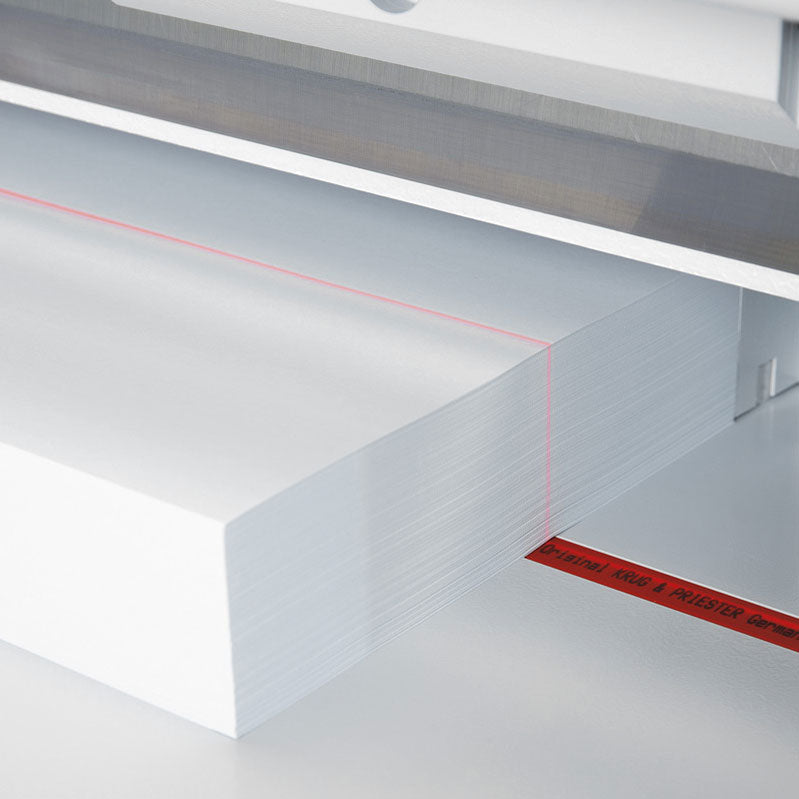

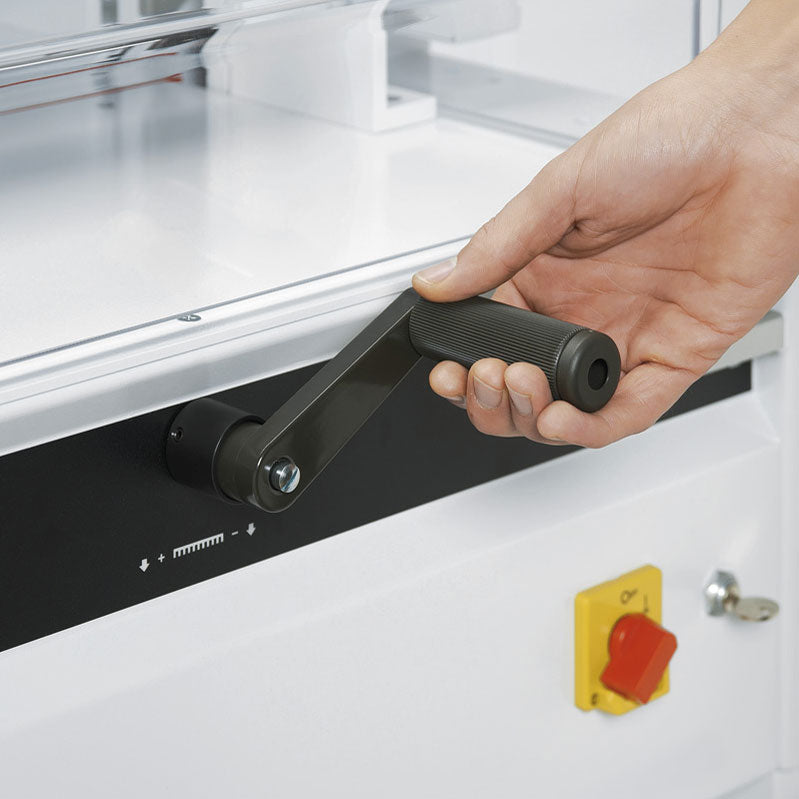

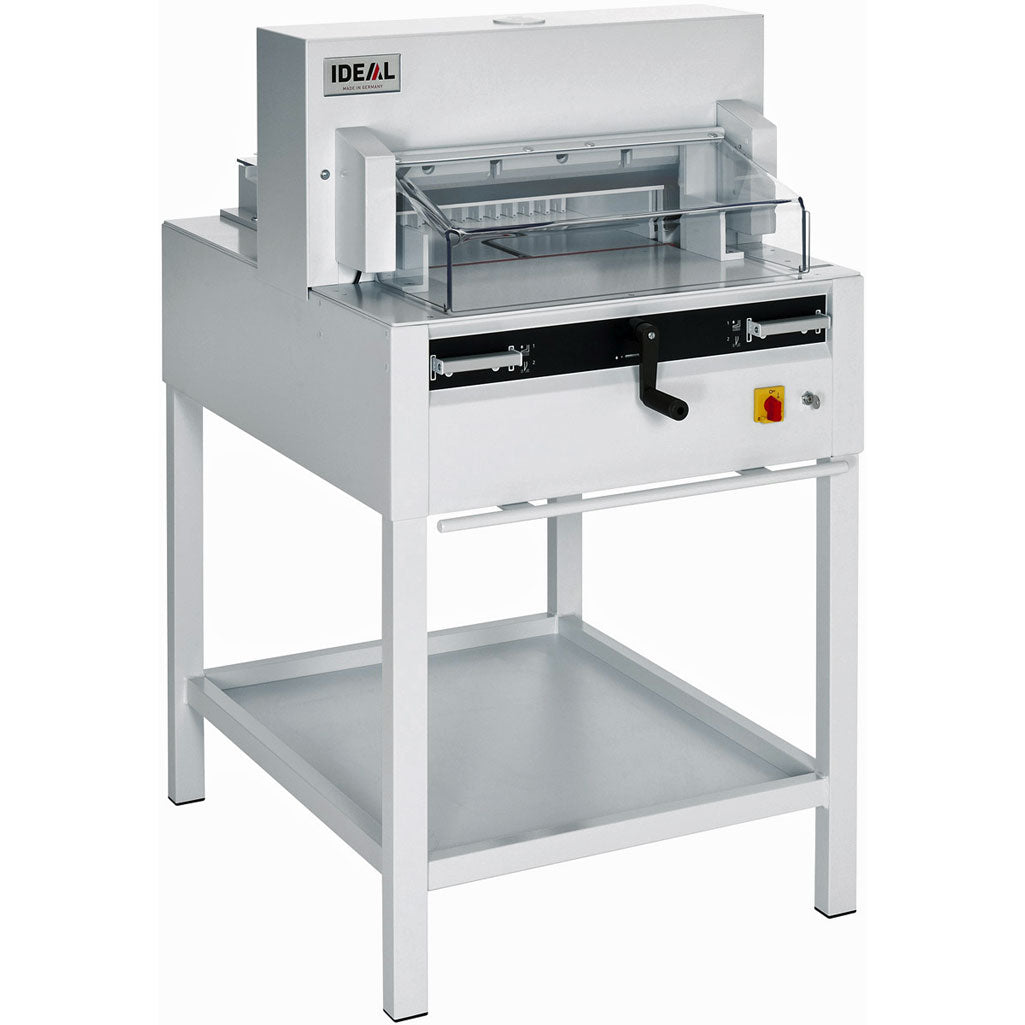

The IDEAL 4850 offers both electro-mechanical drive of the cutting blade and automatic clamping in a simple to operate guillotine that comes on its own table. LED lights produce a highly visible cutting line while hand positioning of the back gauge is controlled through a precision scale and spindle drive. IDEALâs Safety Cutting System is employed to ensure absolute reliability in cutting. Side lays make sure that even the smallest piles are positioned exactly for cutting. The IDEAL 4850-95 covers a range from 475mm cutting length to 30mm and with a maximum 80mm cutting height.
Powered guillotine with automatic clamping offers a productive machine with highly accurate positioning of paper thanks to illuminated cutting lines, adds up to a productive package that is simple to operate with a low training requirement. The clamping and cutting action produce a professional finish making the IDEAL 4850 good for short run quality print work.
Safety-first operation with transparent hoods which lock during the cutting process, does not impinge on loading the IDEAL 4850 because the hood swings away for ease of access. The illuminated cutting line provides reassurance that the back gauge is set correctly. This is positioned according to an easy to read scale from the front table. Blade height adjustment and cutting stick removal are from the side of the machine, eliminating any risk from the blade itself. Blade removal is safe and simple thanks to a dedicated tool.
Offers ability to cut SRA2 to SRA3 size
Cutting length:475 mm
Cutting height:80 mm
Narrow cut:30 mm
Table depth:458 mm
Front table operation
Electo-mechanical blade drive
Transparent front hood locks during cutting
Blade depth adjustment from outside machine
Front side lays for exact position of pile
Complete with stand

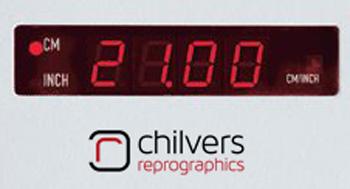

Digital backgauge readout

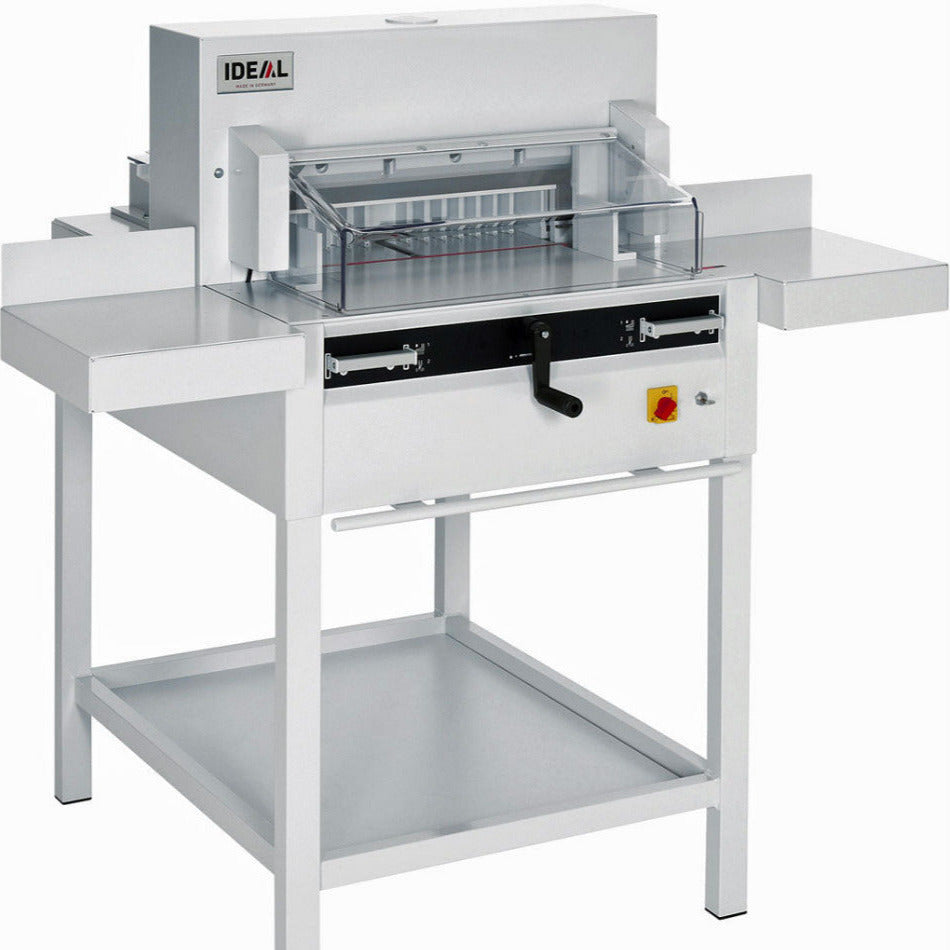

Optional side tables
'We are one of theUK 's longest established IDEAL guillotine suppliers'
You may even be able to part exchange trade-in your old guillotine.
