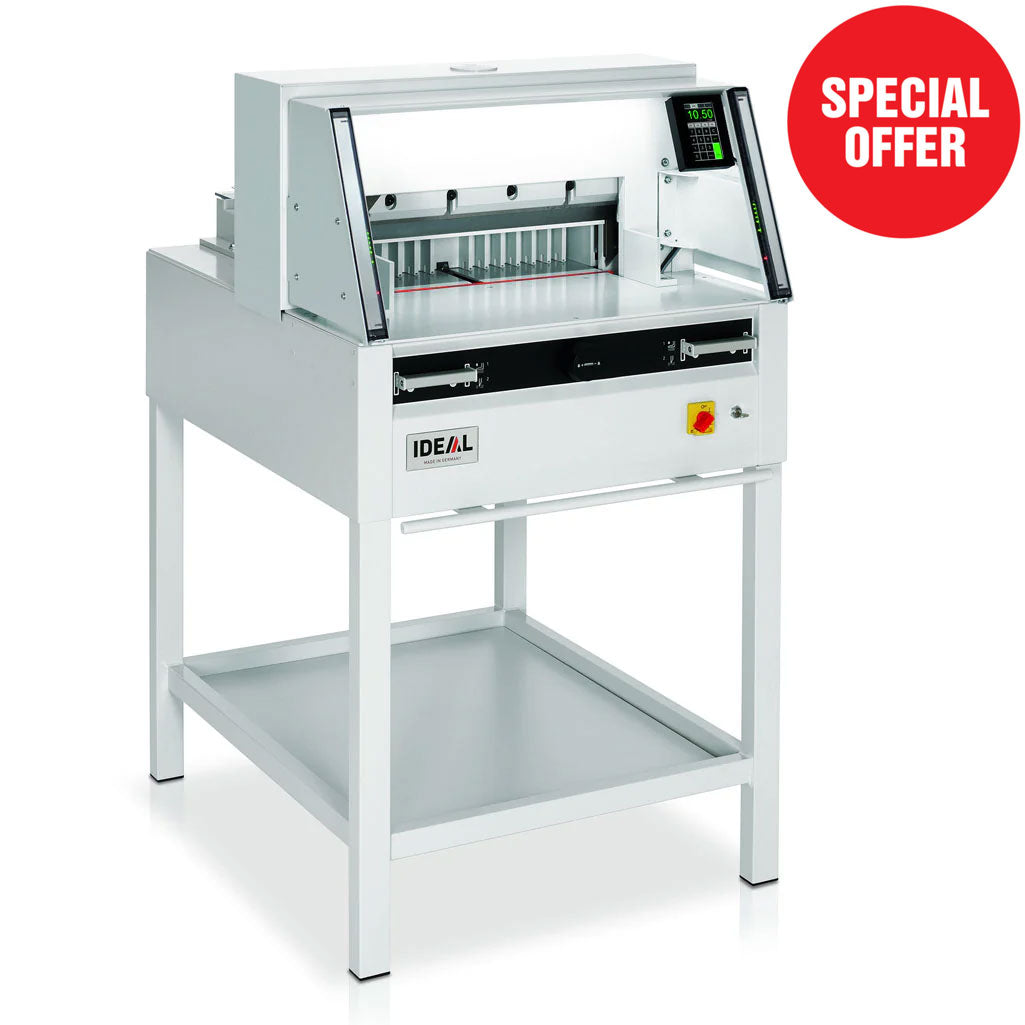

    Ideal-EBA 4860 Electric Guillotine

    View or download a PDF for this product Download PDF

    Contact us on 01908 563149 for our best available price

     The 4860 is the ideal solution for print companies looking for a productive small format guillotine packed with professional features. This guillotine is highly accurate with both an optical cut line indicator, electronically controlled backgauge and fine adjustments possible using the infinitely variable backgauge control wheel. Safety is assured thanks to the two handed operation and IR safety curtain.

    If you are looking for the benefits of light beam guards in a small guillotine then the Ideal 4860 is in our view Ideal.

    Why Buy?

    If space is a premium or your existing guillotine is slowing down production this model is just for you. The use of IR safety curtains make it approximately 20% faster than alternative models with a physical guard. As with all IDEAL guillotines it is made in Germany to the highest specifications and safety standards.

    Light beam guards save valuable time and money they are very common on very large guillotines, on smaller electric guillotines a plastic guard is normal. These can really slow down production where as a light beam guard can drastically improve production speeds.

    Features and Specifications

    • Electro-mechanical blade and clamp drive
    • Electric backgauge drive with touch pad for easy setting
    • Multilingual operator guidance, digital display and measurement readout in cm or inches
    • 99 programs with 99 steps in each program (up to 15 repeat cuts can be integrated into a program as one single program step)
    • Pre-programmed measurements for A3 to A6 standard paper sizes
    • Memory key for repeat cuts
    • SCS Safety Cutting System
    • SET function key for reference measurement
    • Programmable EJECT function for pushing out the paper
    • Electronic hand wheel for manual backgauge positioning with infinitely variable speed control (from very slow to very fast)
    • Optical cutting line with bright and durable LEDs
    • EASY-CUT: convenient two-hand operation via two-step blade activating bars with separate trigger points for blade and clamp (patent pending)
    • Self-diagnostic system with error indication on display
    • adjustable backgauge with narrow separations and plastic gliders
    • Solid all-metal construction
    • Complete with stand and storage shelf
    • Practical hook-in tool holder on back table
    • Power supply: 230 V / 50 Hz / 1~ (other voltages available), motor performance (input capacity): blade drive 1.1 kW, clamp drive 0.32 kW, backgauge drive 0.1 kW
    • Dimensions (H x W x D): 1290 x 755 x 990 mm, Weight: 232 kg, Colour: pearl grey

    Cutting length (mm) = 475
    Cutting height (mm) = 80
    Table depth (mm) = 450
    Narrow cut (mm) = 35

    Call now on 01908 563149 for our best introductory deal on the new Ideal guillotine range.

    'We are one of the UK 's longest established IDEAL guillotine suppliers'

    You may even be able to part exchange trade-in your old guillotine.
