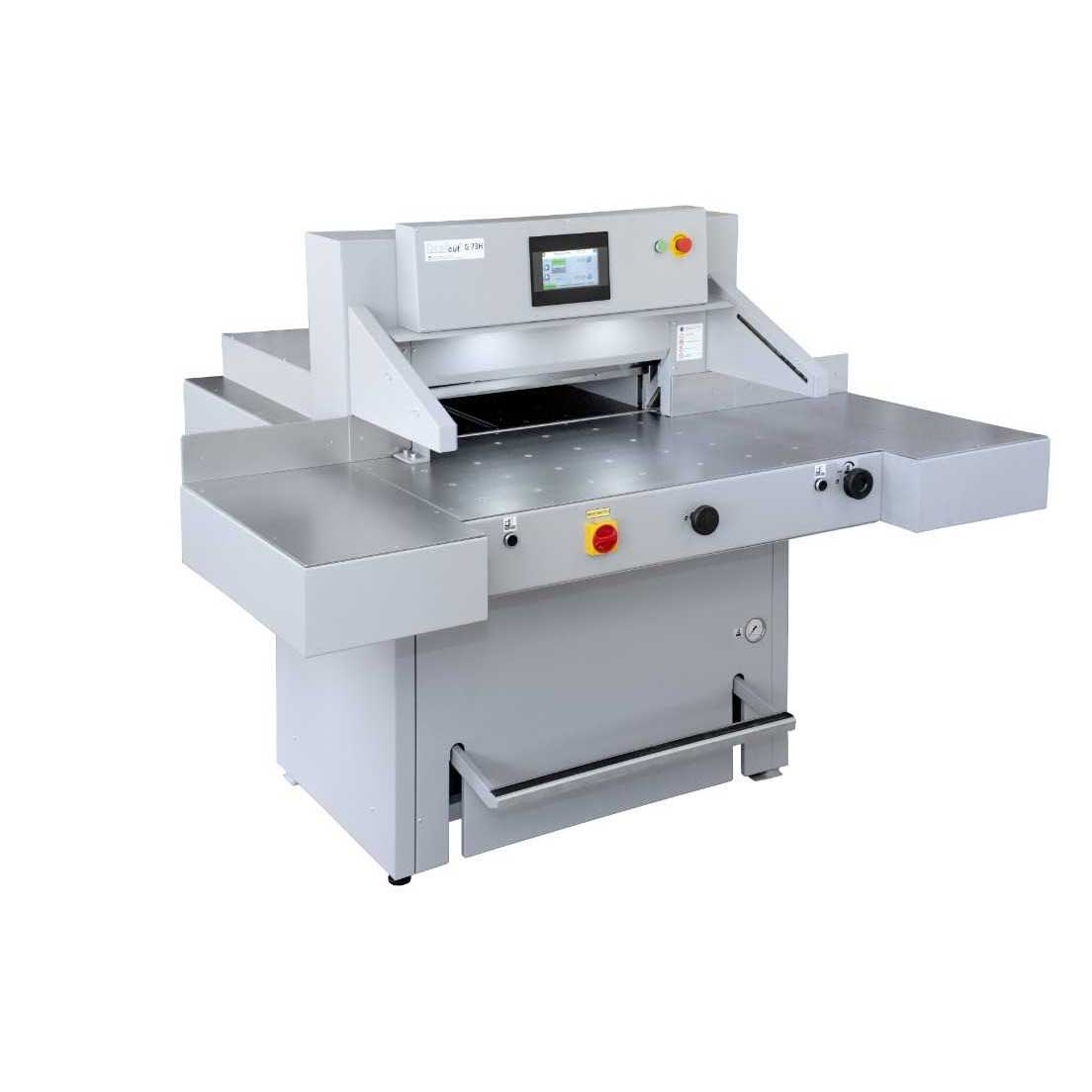

    Grafcut G73H Hydraulic Guillotine

    The Grafcut G73H Hydraulic guillotine is a solidly built robust and easy to use guillotine. Highly productive fully hydraulic (clamp & knife) guillotine that is packed with professional features. It's large colour touch screen controls all adjustable aspects of the guillotine including back-fence adjustments, size calculations and memory store as well as incorporating blade change reminders and service information to keep your guillotine in perfect order.

    A 100 program memory with auto eject function (prevents your hands from going under the blade for document retrieval) removes the need to remember long sequences of cut patterns and means all your repeat jobs can be recalled in seconds.

    As always safety is assured thanks to the two-handed operation and InfraRed (IR) safety curtain that is fitted as standard.

    Grafcut guillotines are made in Europe with over 40 years experience.

    • Cutting Width - 730mm
    • Cutting depth - 710mm (program mode) 730mm (manual mode)
    • Cutting Height - 100mm
    • Smallest cut - 30mm without false clamp (60mm with falst clamp)
    • Fully hydraulic system with adjustable pressure (fluent adjustment on operator panel)
    • Powerful hydraulic knife and clamp drive
    • Air table front & back as standard
    • Front table height - 925mm
    • High cutting accuracy - 0,1mm
    • Clamping pressure adjustment on touch screen
    • Foot pedal for material pre-clamping
    • User friendly, fully programmable 7" touch screen with 100 programs/100 steps
    • Programs can all be given full names
    • Daily cut counter (re-settable) and total counter
    • Visual diagnostics of sensors and electronic components
    • Optical cutting line indicator
    • Stainless steel table surface
    • Option to add password, locking the guillotine
    • Spare blade included
    • Jogger block, 5 cutting sticks, blade change cradle and tool kit
    • Side tables (dimensions 375 x 658mm) can be removed

      Dimensions with side tables - 1855 x 1755 x 1460(H) mm
      Dimensions without side tables - 1105 x 1755 x 1460(H) mm
      Weight - 690 kg  3 phase 415V 32A power supply
