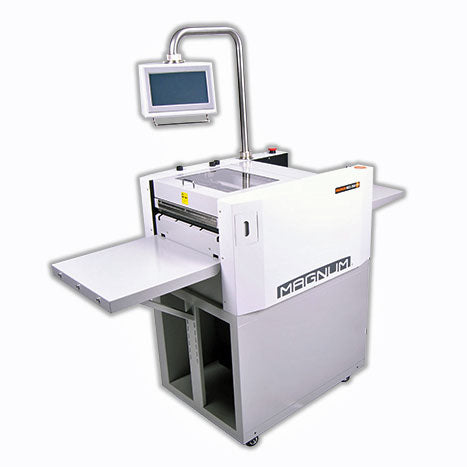

    Magnum MCC-35A Creaser / Perforator / Cutter (With Air Feed)

    The Magnum MCC-35A is a 3-in-1 system that allows you to crease/cut and perforate. The MCC-35A allows you to create bespoke professional results with the 32 crease / perforates in one pass using the preset programs.

    • Max paper size 330x660mm
    • Supports laminated stock
    • 230mm Touch screen display
    • High speed job changeover with preset programs
    • Top vacuum feeding with central registion
    • New slide in type crease/perforate dies
    • Adjust slitter position precicely by gauge
    • Slit cassette micro adjustment
    • 50mm vacuum pile feeder
    • Mark reader for image drift compensation
    • Create up to 32 cut/crease/perforations in one pass
    • Easily exchangeable slide-in crease/perforate tools. Machine supplied with 12TPI Perf bar as standard.
    • Ultrasonic double feed detector
    • Infeed - Automatic
    • 100 - 350gsm paper
    • Interchangeable crease width (0.6, 1, 1.2, 1.4mm). Machine supplied with a 1mm Crease bar.
    • Slitting - 4 slitters / 2 side trimmers / 2 gutter slitter with fixed 8mm gap

    Dimensions - 1680x580x1140mm / 116kg.
