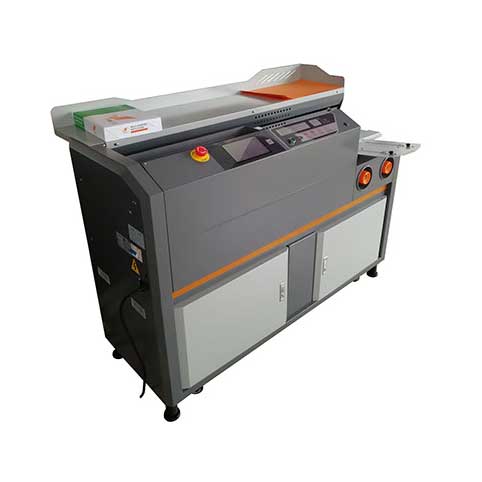

  • Easy Binder 90 Perfect Binder

    The Easy Binder 90 is a reliable, simple to operate, user friendly professional perfect binding (also known as hot glue binding) machine with all the features you would find in a machine twice the size and 4 times the cost in an ultra compact package.

    Perfect binding machine for most litho and full colour digital print with short to medium volume requirements and runs perfectly with the Planamelt R digital hot melt adhesive pellets.

    In auto mode, the full benefits of the Easy Binder 90 can be realised through the automation of the clamping, release, nipping and binding functions with minimal operator intervention and maximum productivity.

    • Milling up to 1.5 mm is possible.
    • Bind books up to 50mm.
    • Bind pads up to 60mm.
    • Book block tray with 2 height settings using a spacer plate for different milling depths.
    • Gluing/binding spine length from 10cm to 44cm
    • Integrated high power chip extractor with chip collection bag
    • 2 glue pot system with variable temp to 180 degrees
    • 1st pot is for side gluing with driven angled wheels with fast setting glue to let the cover sit tight on the book
    • 2nd pot is with a slower setting glue to penetrate and set into the exposed fibre and grip solidly
    • Dust Brush after milling station.
    • 2 glue rollers
    • Nr 1 applicator roller with glue wave
    • Nr 2 reverse spreader / scraper
    • Adjustable tank height
    • Automatic setting centred book cover press for skew free even pressure on both sides
    • Glue tank with scraper to remove excess glue.
    • Side gluing rollers auto adjust.
    • Adjustable side & dorsal pressure
    • Adjustable clamping and book holding time
    • Function for gluing books without using the cover press
    • Full mechanical cycle in about 4 seconds
    • Digital display with self diagnostics.
    • Machine comes complete with mobile stand and storage cupboard.

    Dimensions - W-220mm / D-800mm / H-1600mm. Weight = 220 kg.
