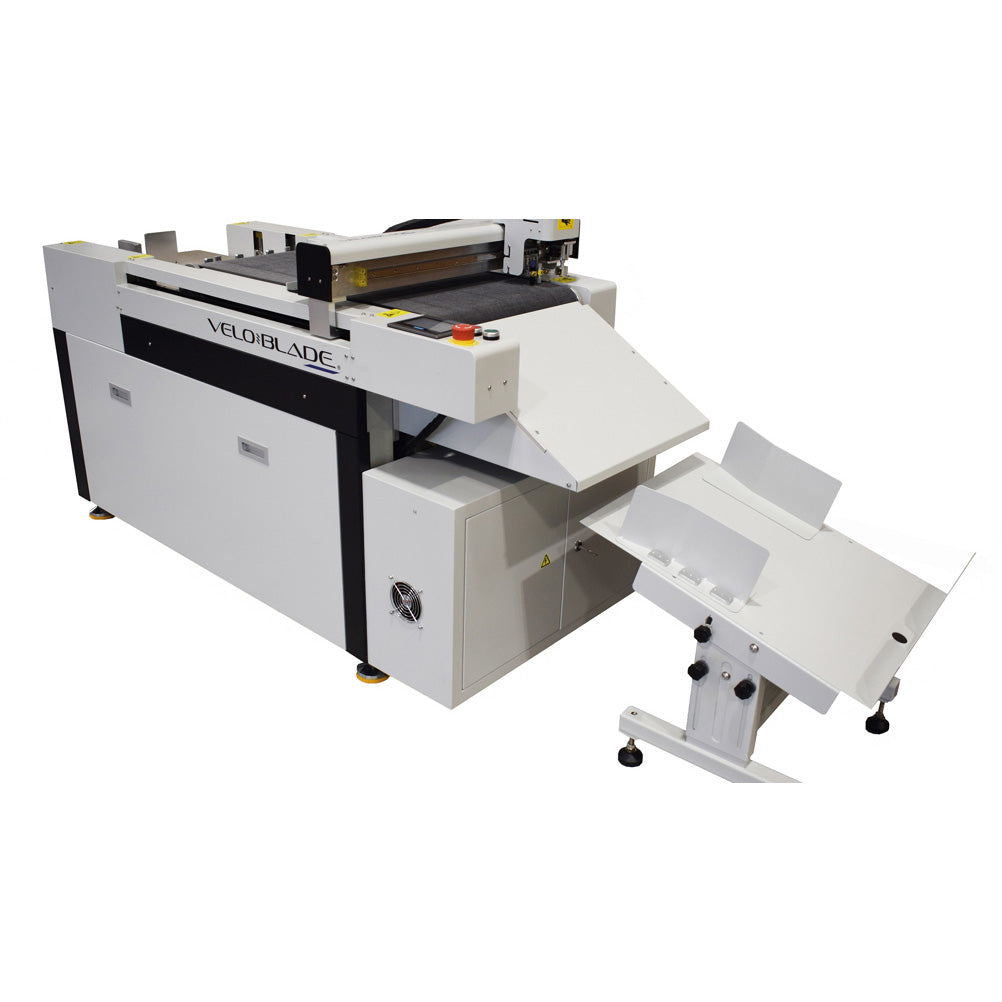

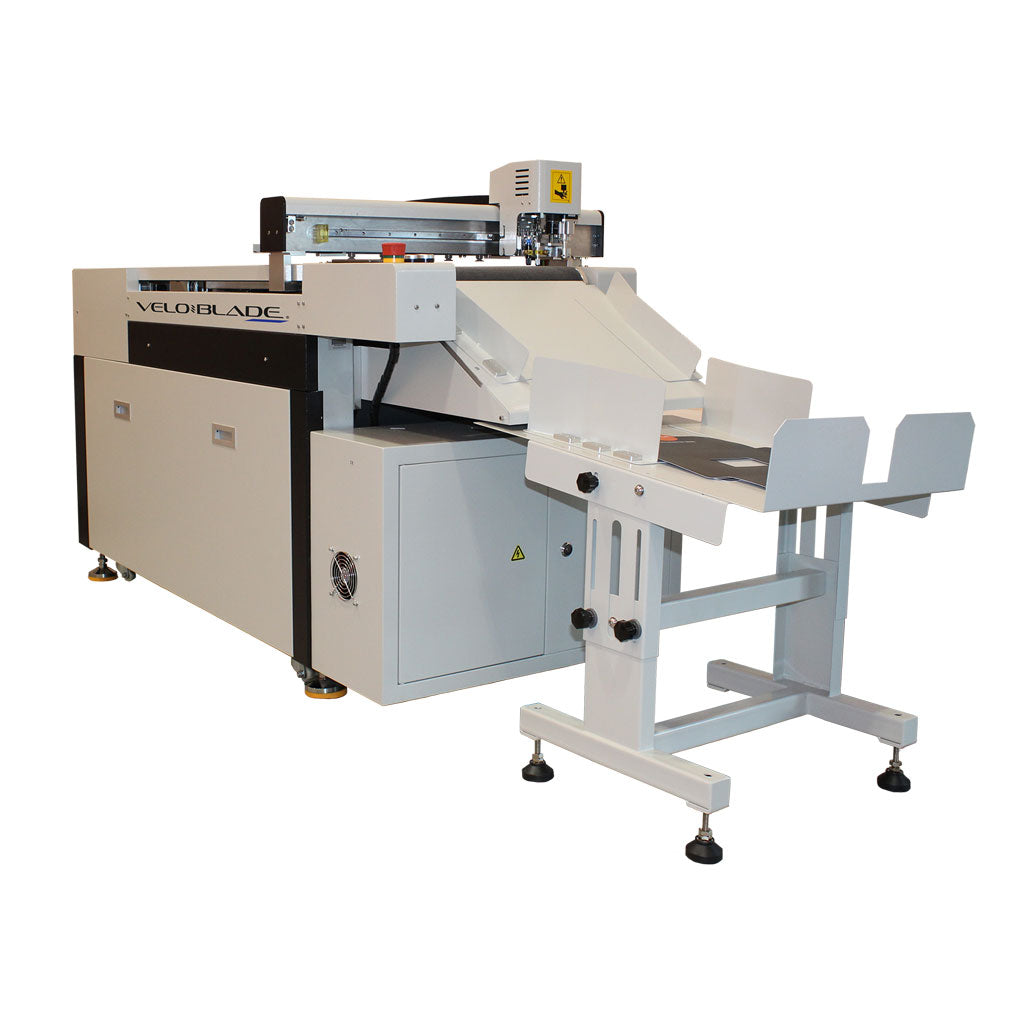

Velo Blade

A digital die-cutter that gives you the freedom to easily create unique and intricate products at the most effective price on the market.

Integrated with meticulous cutting, creasing and perforating tools, the Velo Blade enables you to cut any shape or structure directly from your designs, in just one pass.

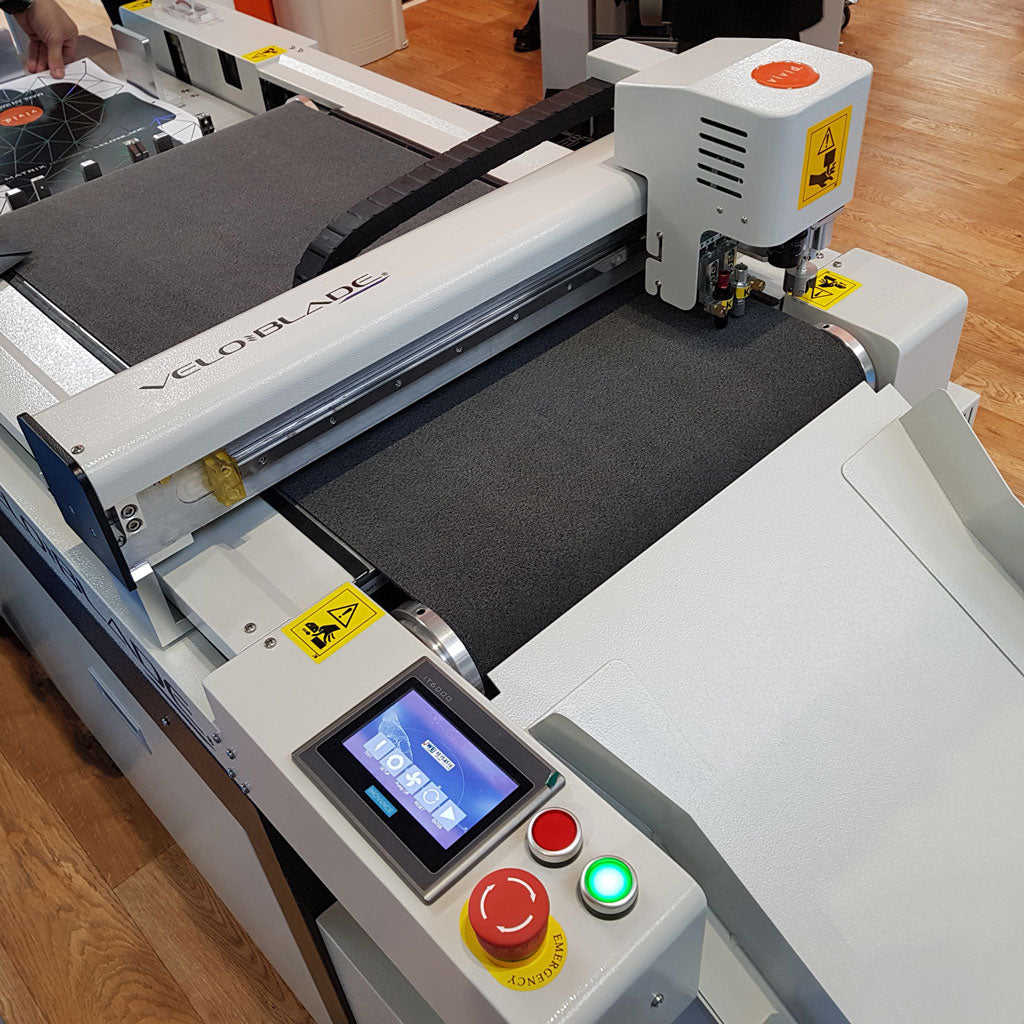

Printed and laminated sheets are held in place using the high-quality vacuum grip conveyor belt. Once cut, sheets are automatically stacked from the vacuum grip conveyor onto the collection tray.

Stack up to 100mm of paper to feed automatically, this is then read by the Industrial CCD registration camera, allowing for unattended production.

  • Auto sheet capacity - 100mm
  • Feeding system - Vacuum feed with clamps
  • Max sheet size - 600 x 400mm
  • Min sheets size - 210 x 297mm
  • Tools - Cut knife, kiss cut knife, creasing wheels & camera
  • Cutting system - M5 control system
  • Blade - Tungsten steel
  • Productivity - 15-45 seconds per SRA3 sheet
  • Max cutting speed - 800mm per second
  • Max cutting depth - 1.5mm / up to 1200gsm
  • Cutting media - Plastic board, PVC board, PU, Cardboard, Fibrous board
  • Repeat accuracy - +0.1mm
  • Software - JWCS productivity controller
  • Camera Registration system - CCD registered system

Dimensions - 2250  x800 x 1100mm

For more information on this machine contact us on 01908 563149 / sales@chilvers.co.uk
