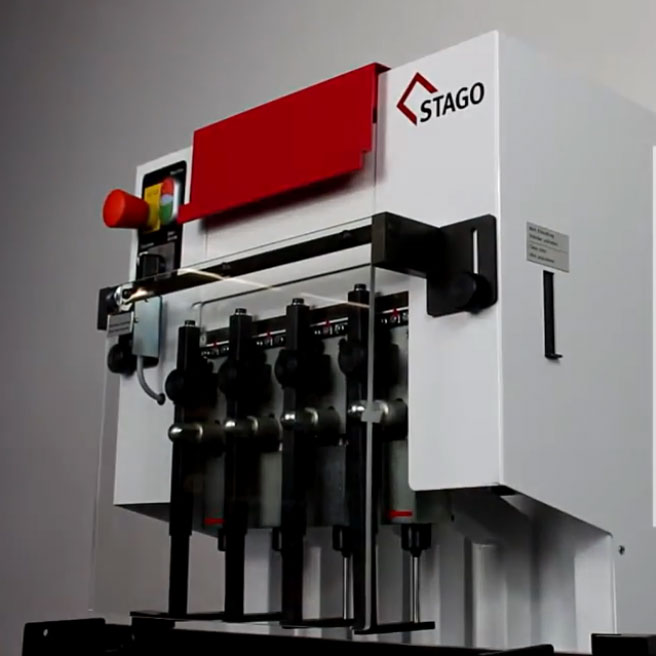

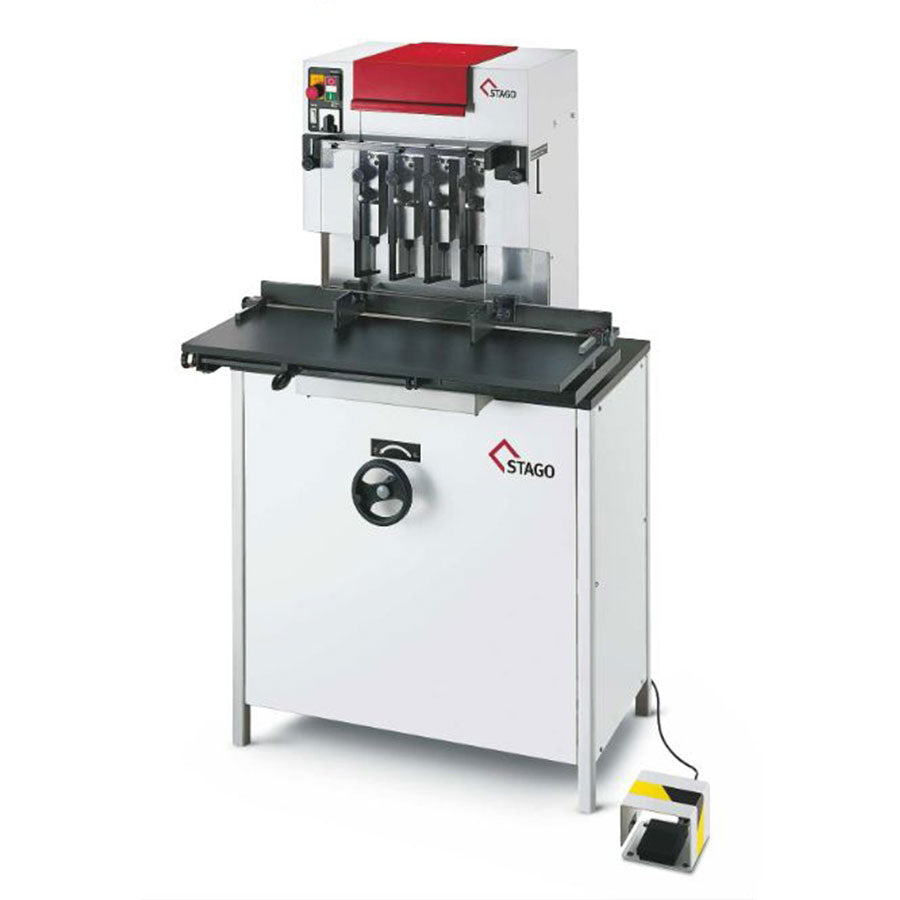

Stago 5010 four head Paper Drill

Long-term high performance and absolute precision. This sentence describes the basic concept of the Stago 5010 machine series exactly. The Stago 5010 heavy duty treadle operated four head paper drill is suitable for drilling paper, cardboard, textiles, leather and some plastics.

The hole spacing can be adjusted within the range of 40-250 mm. The large dimensions of the support table variants sets the standard in the professional environment. The ergonomic design enables effortless operation and high productivity.

The spindle stroke is done either manually by a foot peddle or automatically by a foot switch and motor drive. The increased machine frame, the high-precision guides and maintenance-free drives guarantee a long machine life. For extreme applications with high heat generation, the optional drill cooling and lubrication ensures a perfect drilling result.

• Large waste bin
• Will take 2-10mm drill bits
• Easy drill bit change
• Will drill a full ream (500 sheets 80gsm) paper or 60mm stack

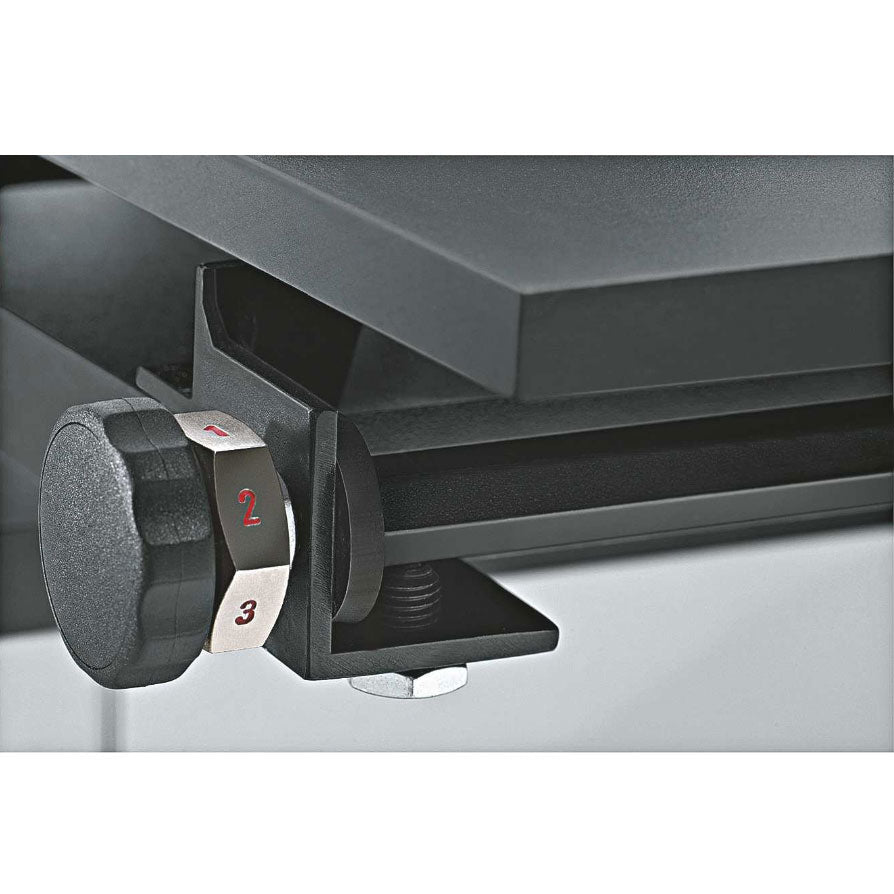

• Adjustable back stop
• Adjustable hole spacing, can be adjusted within the range of 40-250mm
• Large support table - size 800 x 415mm
• Drilling Speeds: up to 2400 RPM
• Paper Sizes: up to A3
• Designed for constant use.
• 60mm drilling depth

• Throat depth 75mm

• Program bar
• Variable speed
• Designed for constant use

Used by Commercial and Digital Printers, In-Plants, Copy Shops, Quick Printers, Local and National Government Print departments.

Chilvers Reprographics stock a full range of drill bits to fit the Stago including Teflon coated and Tungsten for drilling more difficult stocks.
