Morgana SFT Squareback / Squarefold and Trimmer

View or download a PDF for this product Download PDF

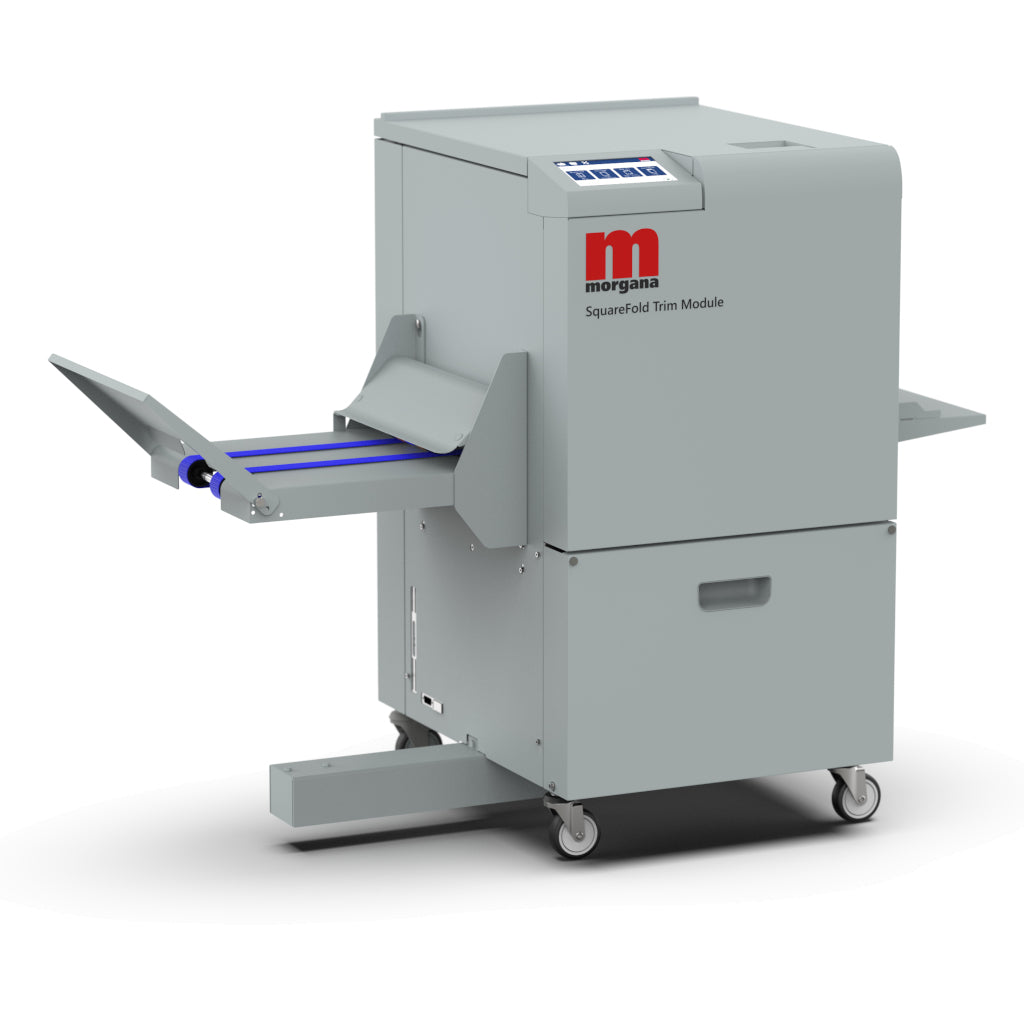

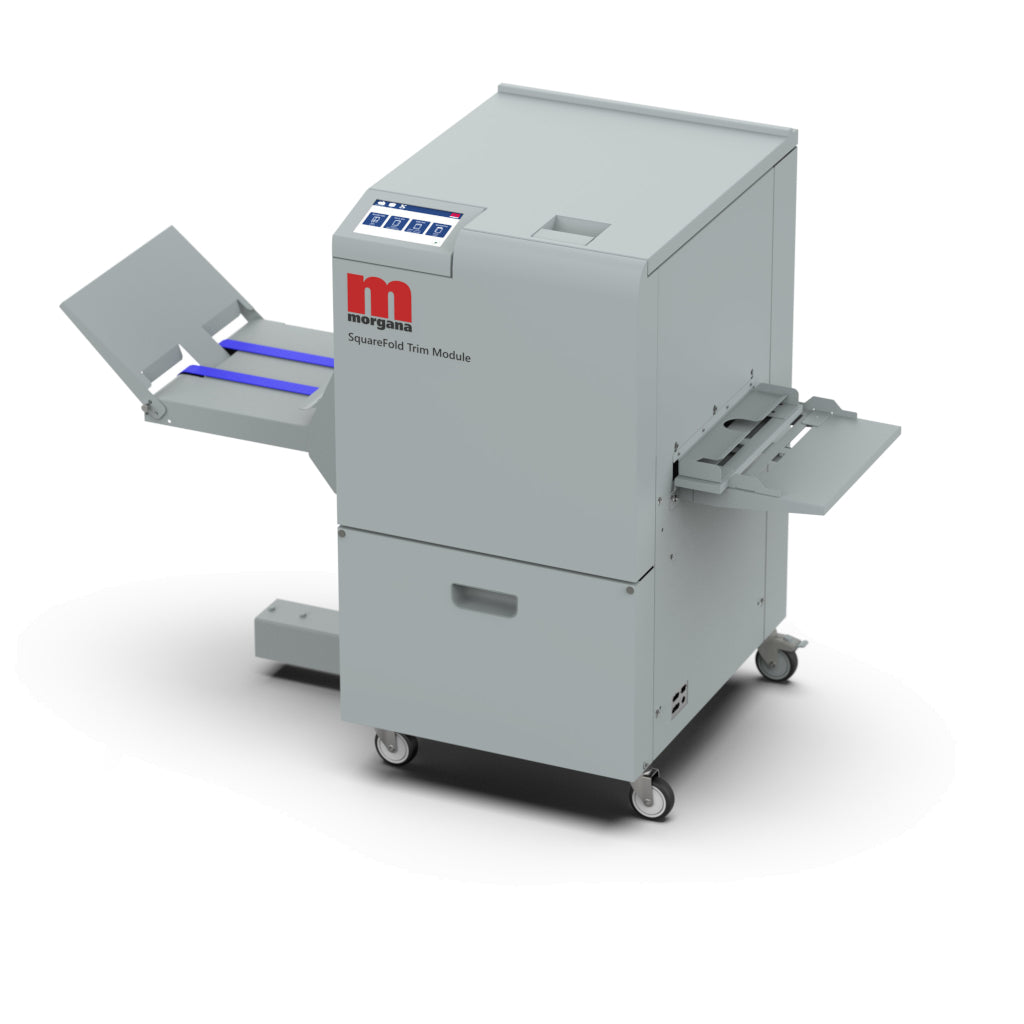

The Morgana SFT SquareBack / SquareFold and Trimmer is the industries first combined booklet trimmer and squareback / squarefold machine, perfect machine to complement an existing booklet making machine.

The trimmer stops the angled finish to the open edge of the booklet, combined with the squareback / squarefold function, it gives the booklets a flat finish, like a perfect bound (glue bound) book. Operator assisted three-side trimming allows trimming on full bleed booklets. The incorporated belt stacker allows the finished booklets to stack neatly.

The square spine gives you also the option to print text on the spine to get that magazine/book look! Add increased value to your booklets, offer your customer a professional look at a fraction of the cost for a perfect bound book. The ideal choice from Copy Shops and Quick Printers up to medium sized and large Commercial Printers.

The end product allows your book to lie flat allowing you to print on the spine at a fraction of the cost of perfect binding.


  • Up to 50 stapled and folded sheets
  • Min booklet size 148.5mm x 105mm
  • Max booklet size 320 x 310mm
  • Min paper weight 63gsm
  • Max paper weight 350gsm
  • Max open edge trim 210mm
  • Max side trim 24mm
  • Dimensions (W x D) 1415mm x 700mm
