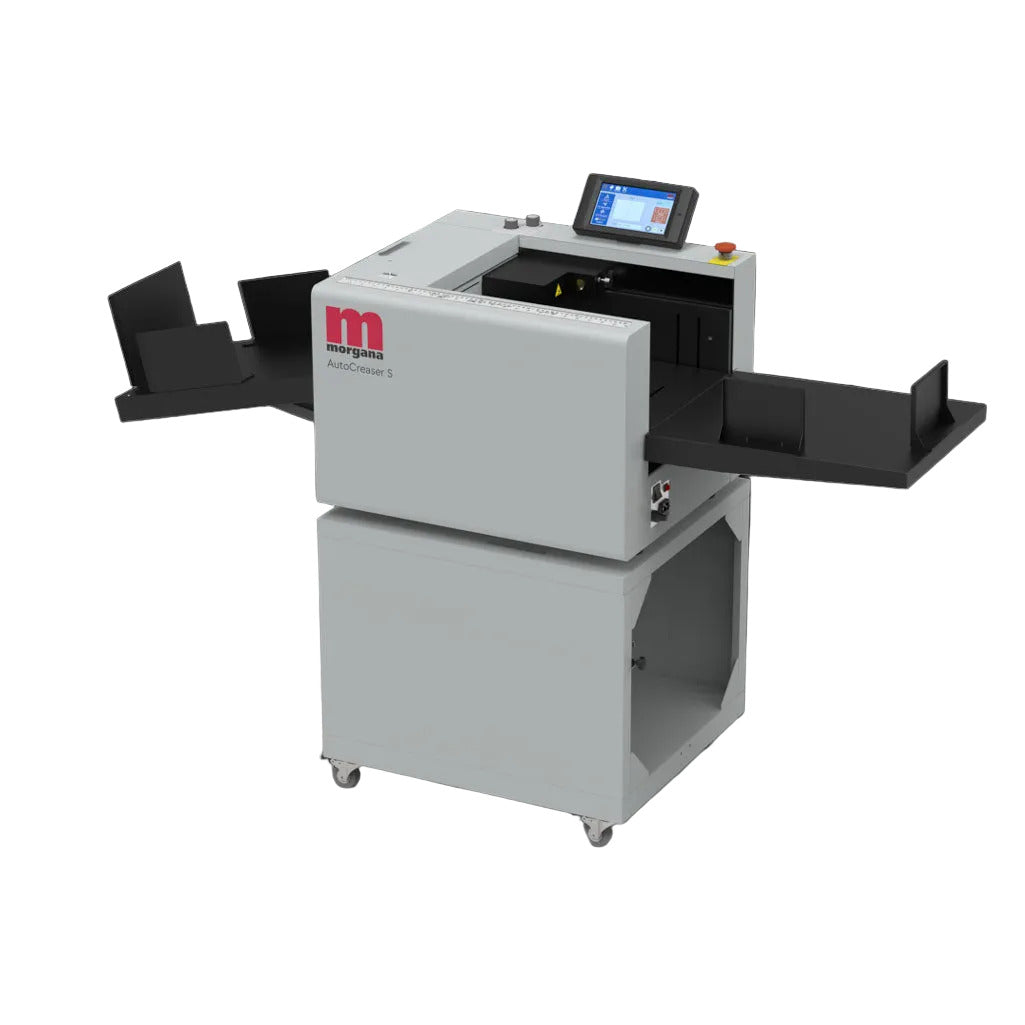

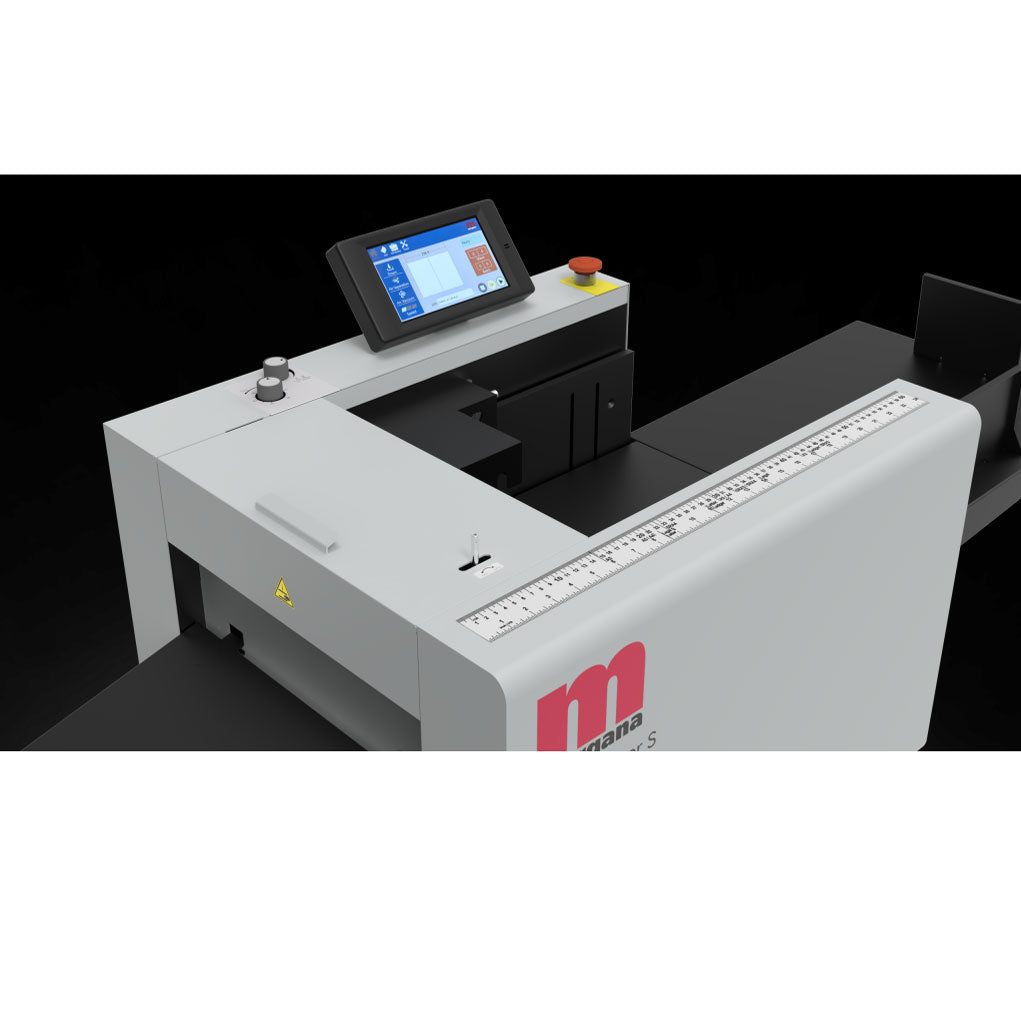

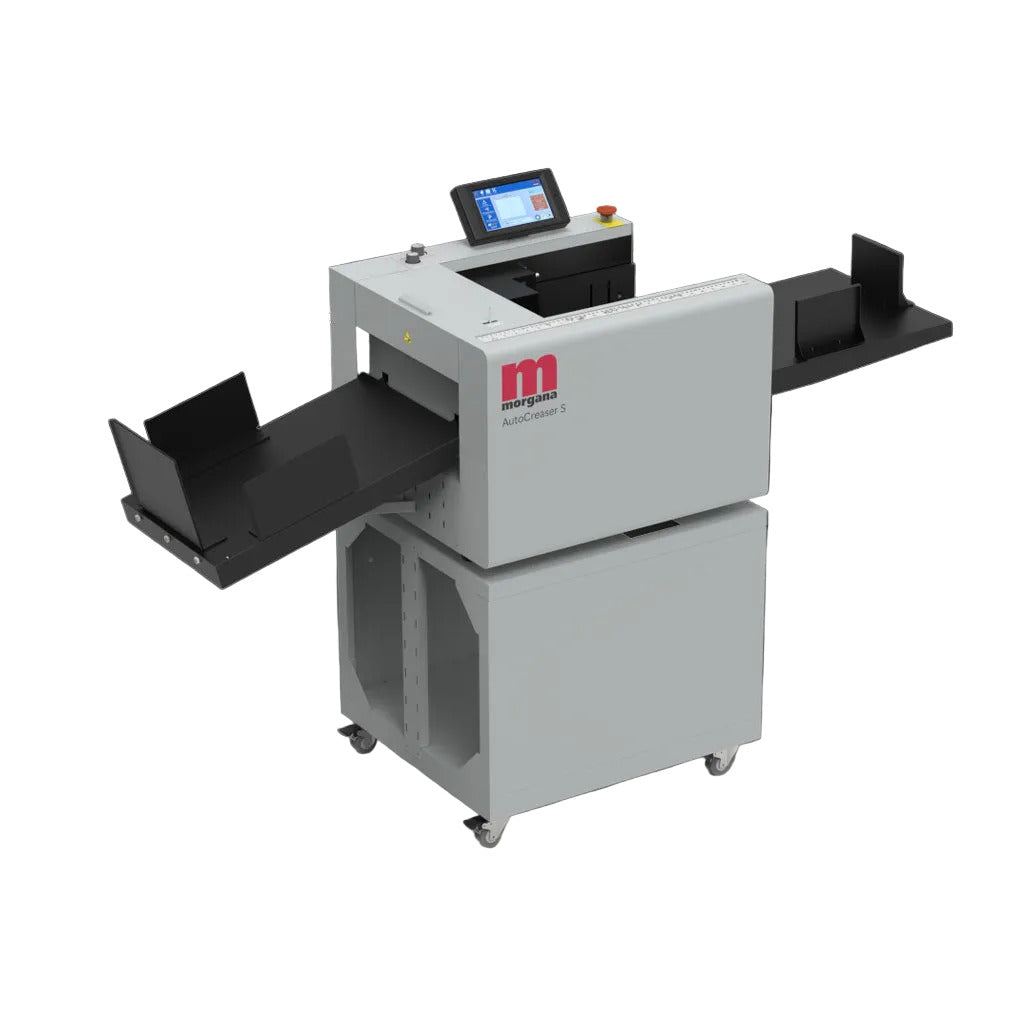

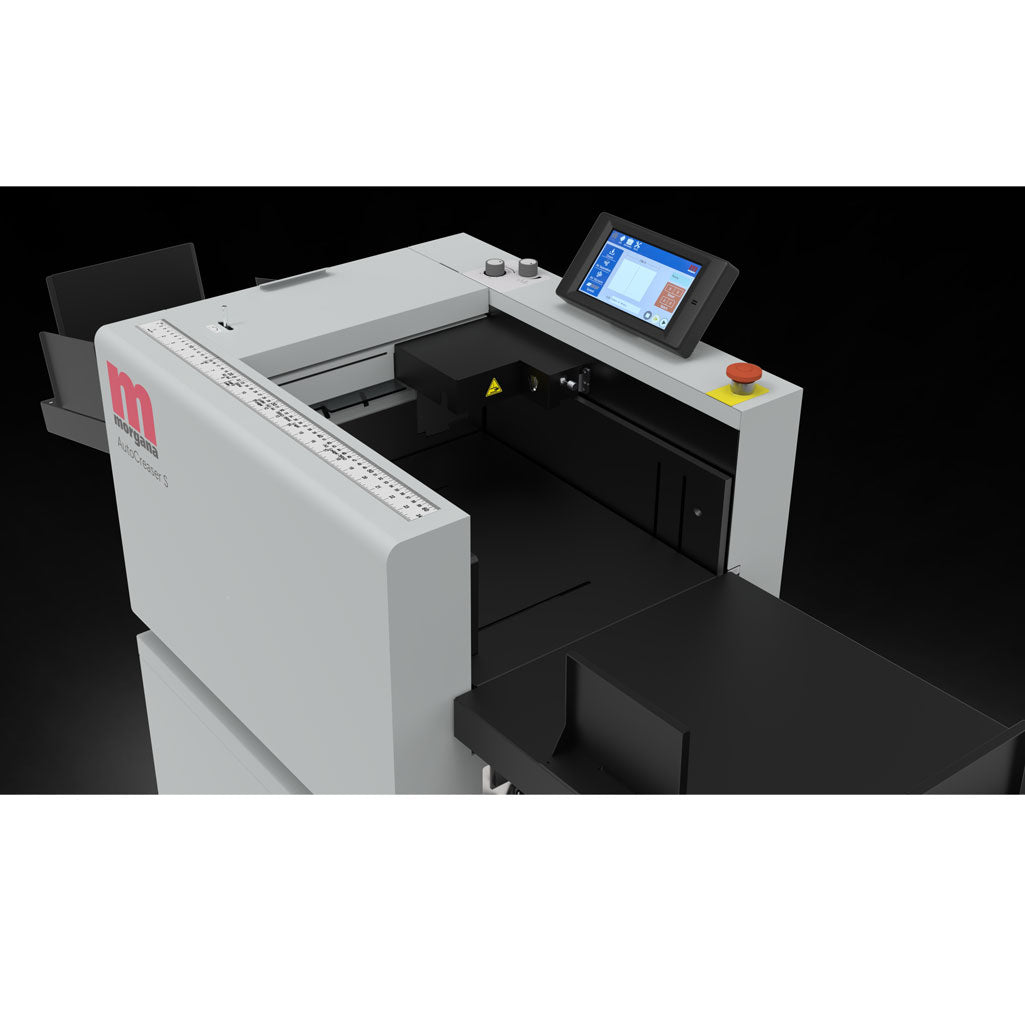

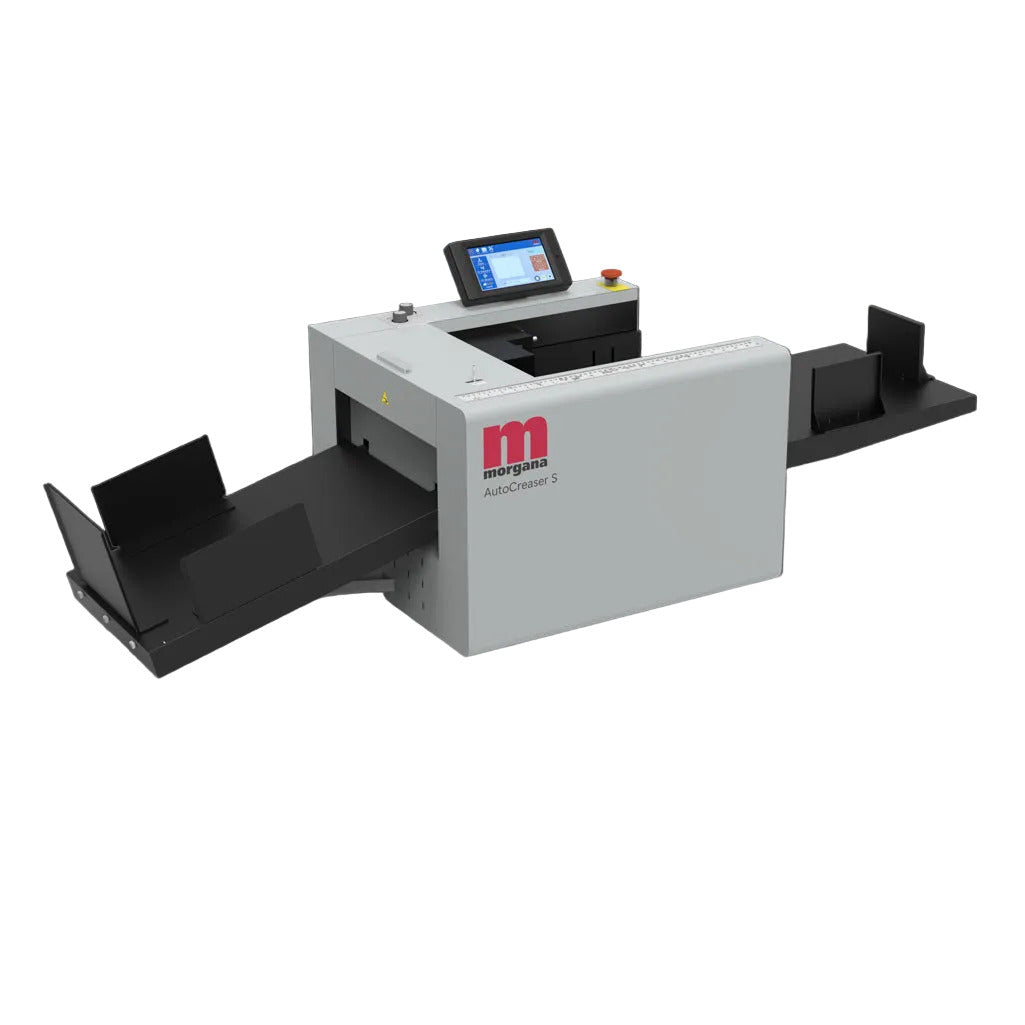

NEW Morgana AutoCreaser S entry level creaser with smart screen technology and easy blade change.
The Morgana AutoCreaser S is a new affordable addition to Morgana range of highspeed creasers, handling format up to 330x700mm (13×35”). With its compact size, crease-depth adjustment feature “on-the-fly”, intuitive SmartScreen controls of all main functions together with cost-competitive options such as combined cross- & inline-perforation kit, the AutoCreaser S truly throws punches well above its weight.
The AutoCreaser S is ideally suited for a wide array of short run jobs facing a service provider in an print finishing environment.
- Three fixed speeds - 3000/4000/5000 sheets/h
- Top feed vacuum belt & lead-edge air separation
- Maximum Sheet Size = 330 x 700mm
- Minimum Sheet Size = 99 x 150mm
- Load capacity = 100mm
- Handles stock from 80 to 350 gsm.
- Standard crease bar included (1.20mm)
- Max no of creases per sheet = 32
- Minimum distance between creases = 2mm
- Minimum distance between lead-edge to crease = 1mm
- Save up to 36 bespoke jobs, with naming function
- Pre-defined (editable) templates of 11x most common jobs
- Repetitive Accuracy = +/- 0.3mm
- Optional floor stand available (19kg)
- Optional cross perf blade bar (TPI 13)
- Optional inline/rotate perf (TPI 9). Minimum distance between inline perf lines = 25mm
-
Optional narrow crease blade (0.75mm)
- Dimensions D-560 x L-1650 x H-590mm
- Weight 83kg
DELIVERIES to UK mainland can either be dispatched on a pallet (strapped & weatherproof with film) or we can arrange for our own team to deliver, install & provide training.
Contact us on 01908 563149 / sales@chilvers.co.uk for prices.
