*NOT AVAILABLE FOR ONLINE PURCHASE* MC35A

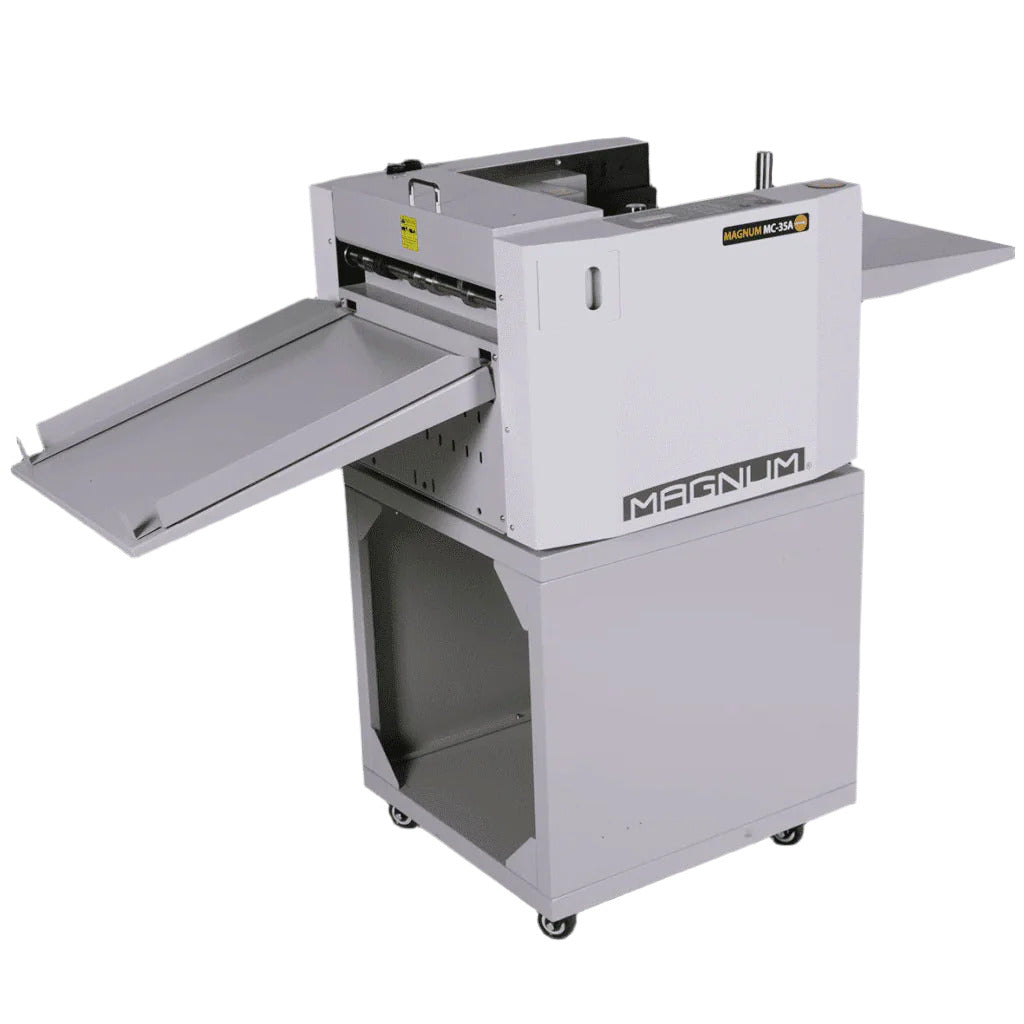

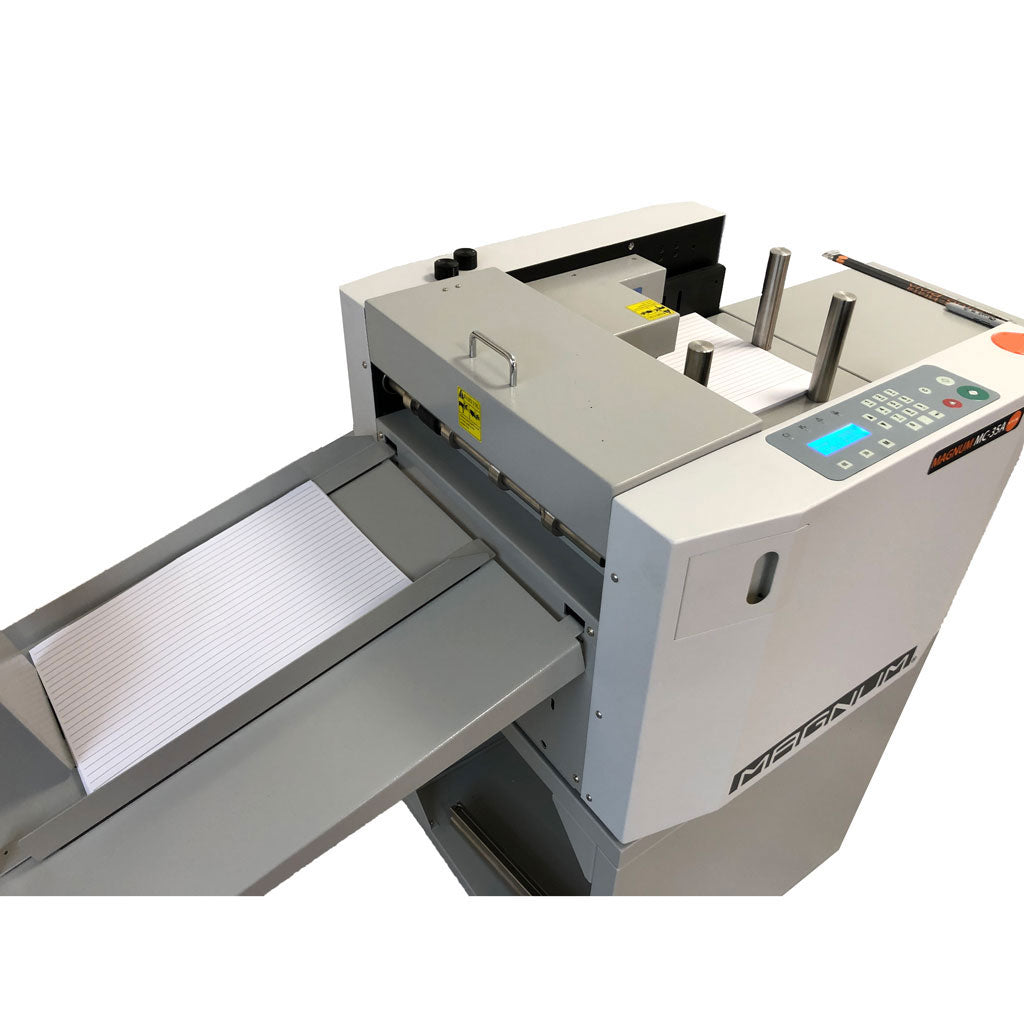

Magnum MC-35A Creaser / Perforator with Air Feed

The Magnum MC-35A is an automatic top suction feed creasing and perforating system with 110mm stack height, it also has the ability to cross-perforate. The MC-35A allows you to create rapid professional results with the preset programs.

The Magnum MC-35A is a bench top machine with the option of a mobile floor stand.

Sniper technology, no need to input measurements for crease position, simply put a pen mark or printed mark where you want the crease and the Magnum does a test sheet setup for you.

Ideal for creasing or perforating both litho or digital print.

Progressive Crease Function - Used for lay-flat books or staple and folded booklets for a square back look. Both are especially usefull for thicker paper or card.


If all the sheets are creased at the same position the bound book will not lay flat. With three kinds of crease mode even thick paper can be turned over easily and lay flat using the progressive crease technology.



Inc & Dec Progressive Crease


V-Shape Progressive Crease

The first page will crease one line as a reference and all the following sheets will be creased twice, successively to the reference line creating a squareback booklet without the need for a squareback machine, stapling to finish if required.


  • Max speed 75 sheets per minute.
  • Top suction belt feeder with 110mm stack height.
  • Min paper size 50 x 90mm.
  • Max paper size 330 x 645.
  • 30 programme memory.

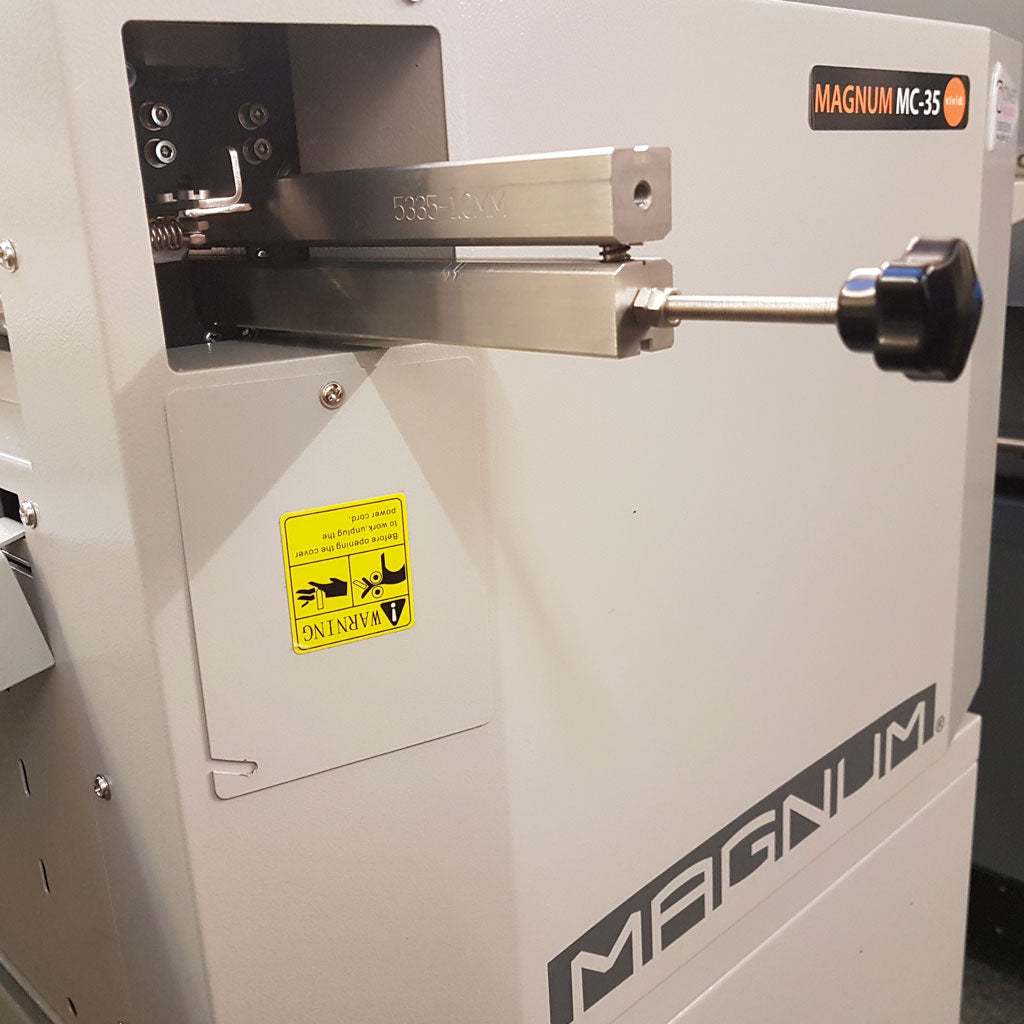

  • Interchangeable matrix creasing widths 0.6, 1, 1.2 and 1.4mm. Machine supplied with 1mm crease tool.
  • Creasing tool can be inserted for up or down crease.

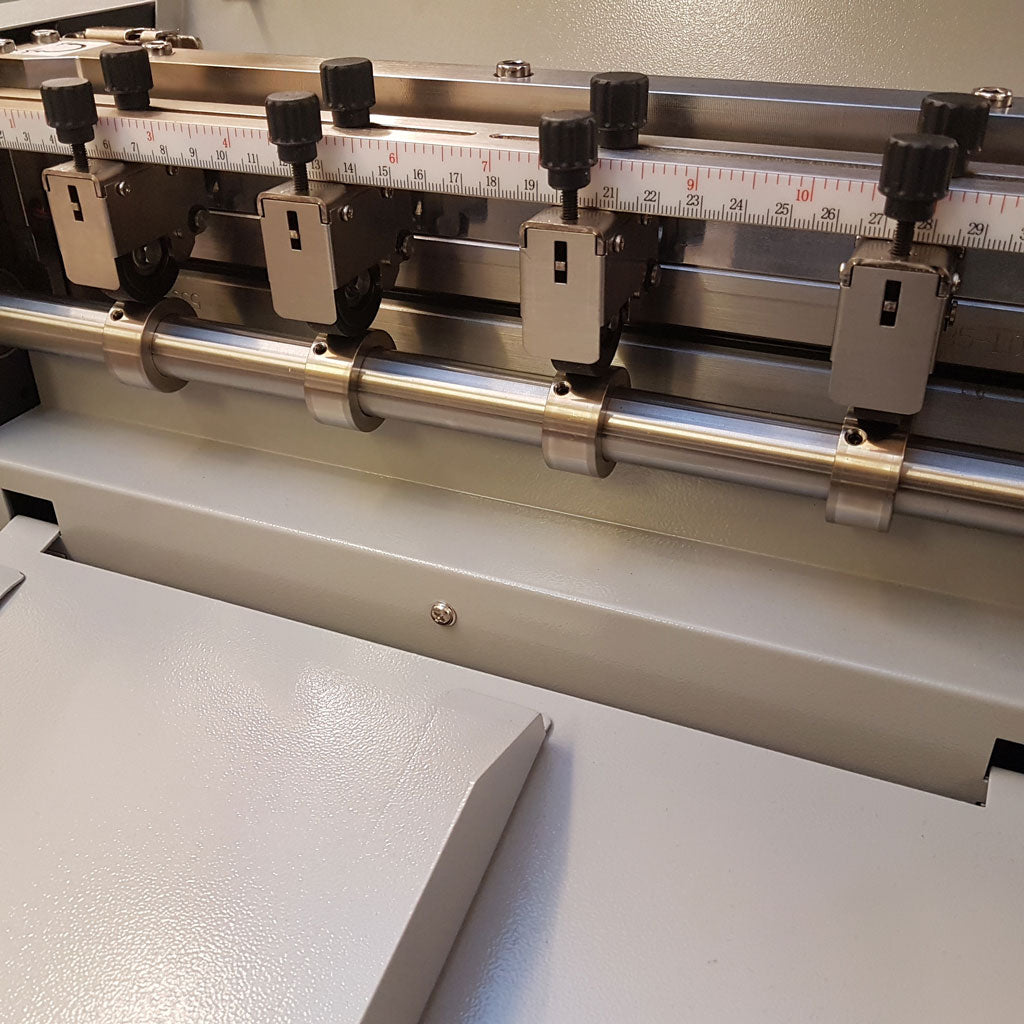

  • Create up to 32 crease/perforations in one pass using slide in matrix bars.
  • Up to 350gsm paper.
  • High precision crease position.
  • Automatic feed.

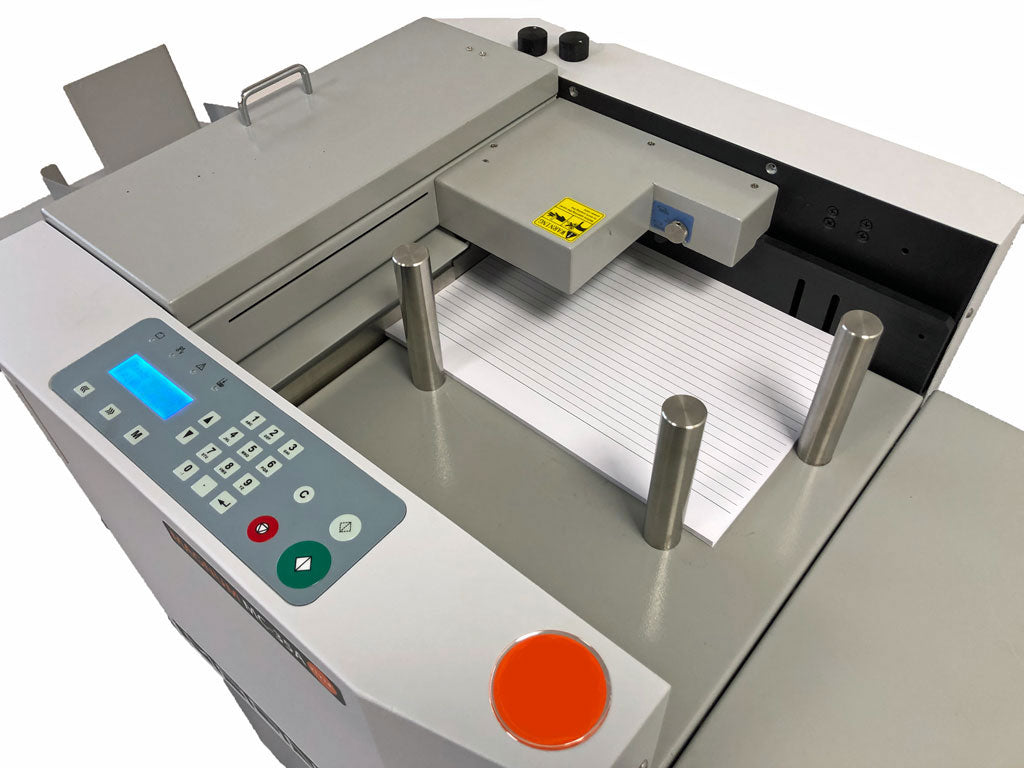

  • Top suction feed.
  • Patented Sniper technology automatically detects printed or hand drawn registration marks to automatically set crease positions.
  • Crease depth and skew adjustment.
  • Supports laminated stock.
  • Keyboard & LCD screen.
  • Optional mobile stand available.
  • Dimensions - 920 x 510 x 1100mm (including stand) / 70kg.
  • Progressive crease function

    Optional Tools available

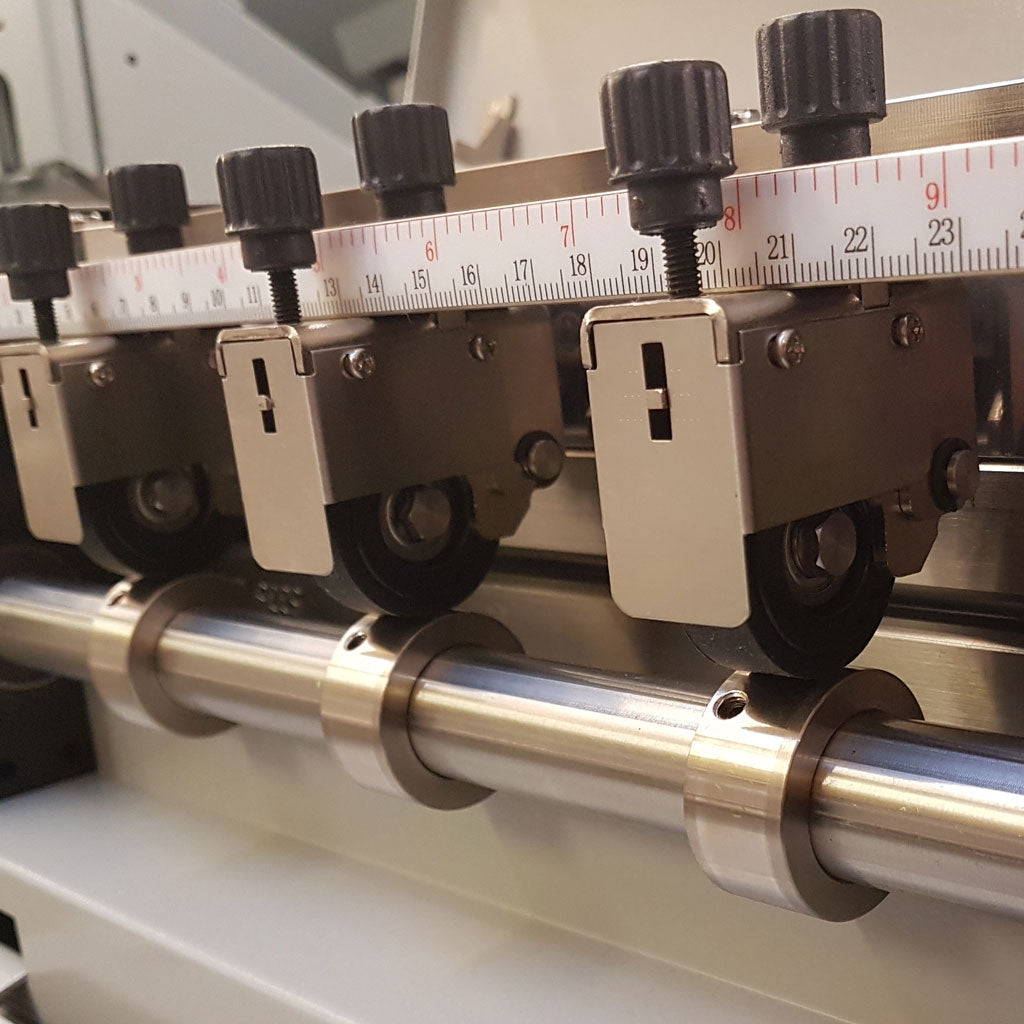

    Image above shows optional high quality adjustable linear perforating giving a nice flat finish.  Maximum of 8 can be fitted. This type of perforation is normally only found on machines costing three times more.







      Just some applications the Magnum can be used for:

      • Greeting Cards - Christmas Cards
      • Menus
      • Brochures
      • Layflat photo books
      • Order of service
      • Book covers
      • Tri-fold card brochure
      • Perforating

      Short video below of the MC-35A in action
