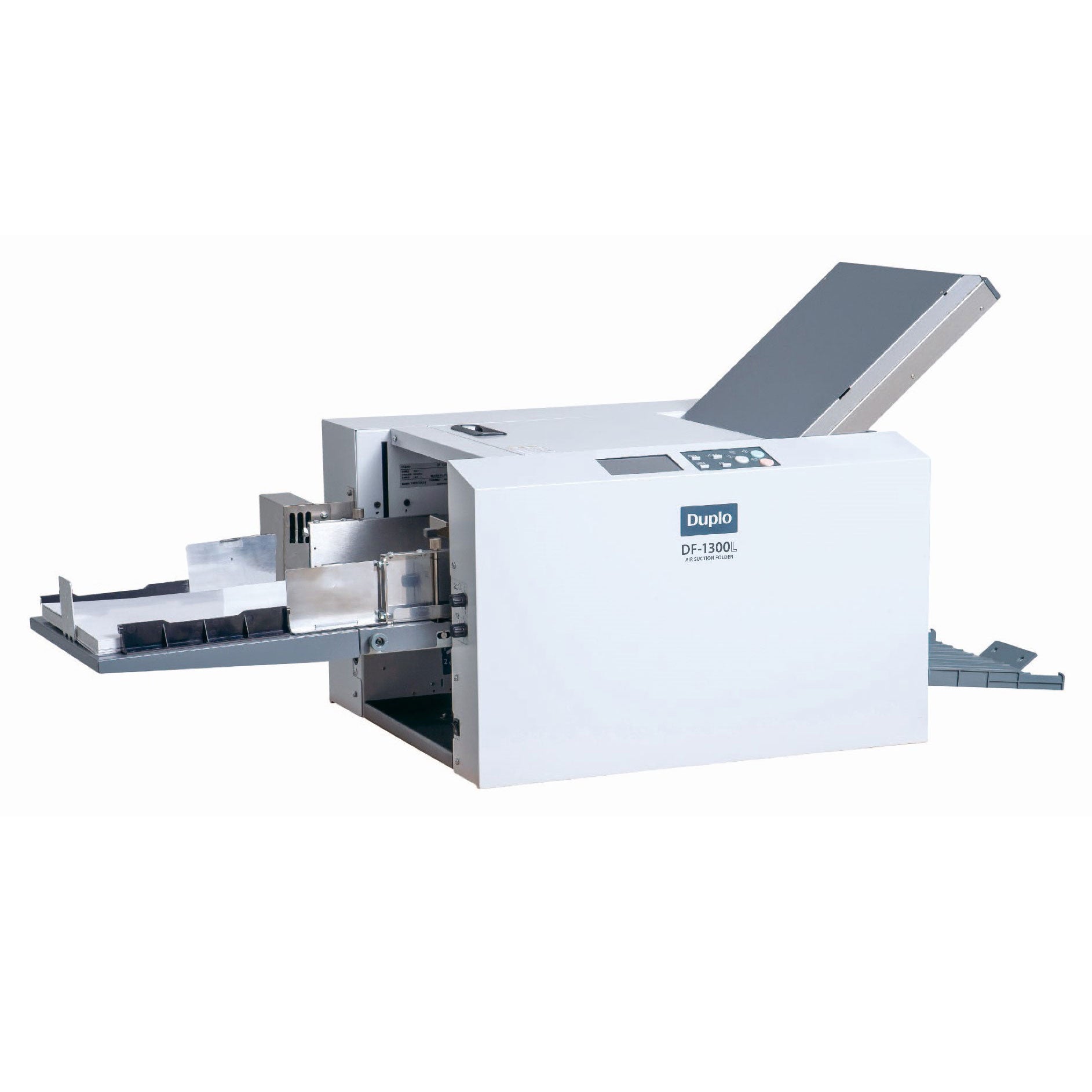

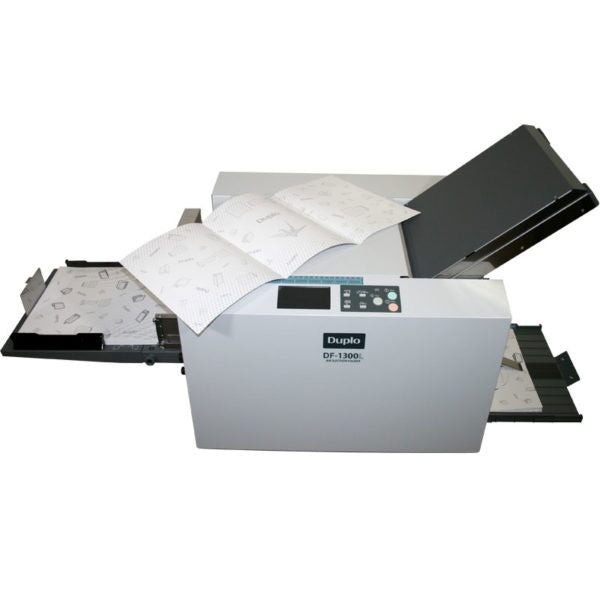

The Duplo DF-1300L (long sheet folder) is a compact suction air feed folder replaces the popular DF-1200L model. It's ability to handle ‘Long A3’ format (648mm length) banner sheets makes this product unique in its class, allowing marketing departments and small print production sites to stretch their creativity and variety of applications they can produce. The features of air suction feeding and ultrasonic double sheet detection all contribute to making this the perfect solution for folding digitally printed papers.
The DF-1300L is a simple to operate folder with automatic set up for standard formats and 30 job memories for custom jobs. Suction feed means it will handle digitally printed and coated papers without problem, while a batching function allows production to be interrupted at desired intervals while the delivery is cleared. Copes with lightweight papers (55gsm) to cover weights (230gsm).
Min paper size 120 x 182mm
Max paper size 310 x 648mm
Paper weight 55 - 160gsm (230gsm A4 single fold)
310 sheets per minute / 18,600 sheets per hour
Paper feed tray 50mm
Handles B7 to A3 paper sizes
Standard paper size detection A3, B4, A4, B5, A5 and B6 - Ideal for the digital colour market where various types of paper stock are used.
Automatic fold plate positioning for on-standard paper sizes
30 job memory
Automatic paper lift
Feeding system = Belt air suction with side air fan

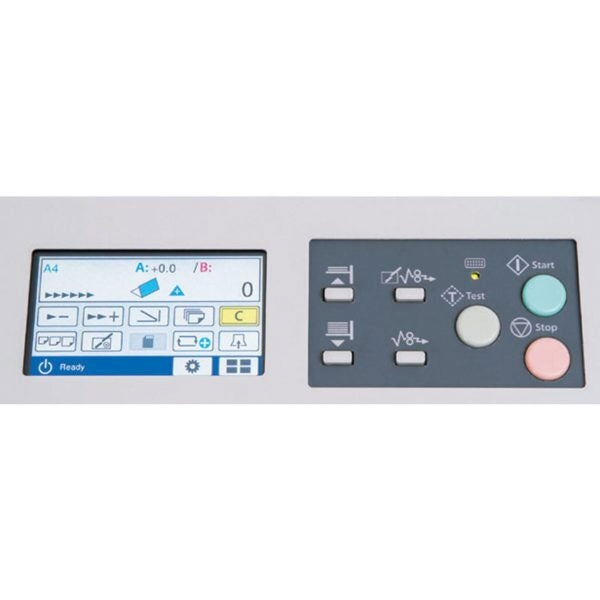

Intuative colour LCD touch screen control panel
Batch counter and interval functions
Feeder holds up to 500 sheets for uninterupted operation
Ultrasonic double feed detection ensures integrity by guaranteeing only a single sheet is fed at a time, critical when folding personalised letters or documents.
The air suction feed system with side air makes it possible to feed coated sheets as well as bond, NCR, and offset
Low noise - The DF-1300L is one of the quietest table top air sution folding machines. It is equipt with a fan rather than a compressor pump which much quieter than other suction feed folders.
8 standard folding styles: single fold, double fold, irregular accrordion fold, accrordian Z fold, letter fold, brochure fold, parallel fold, cross fold plus custom folds.
