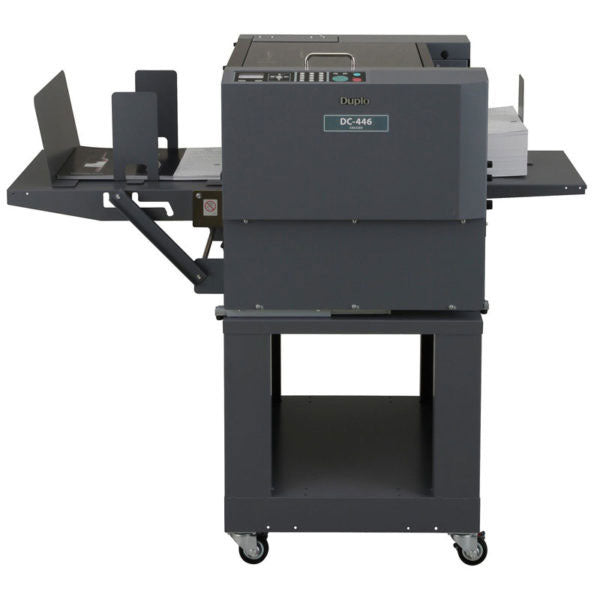

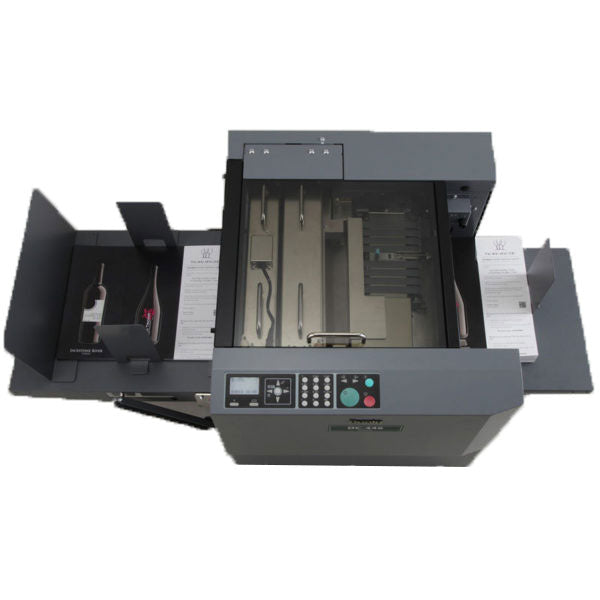

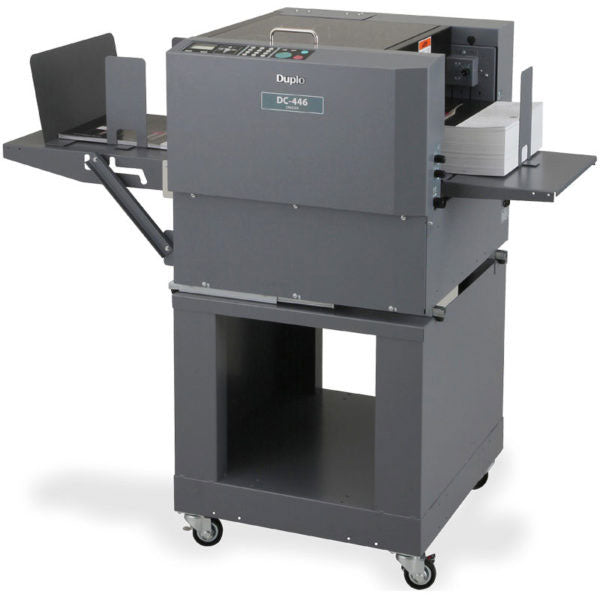

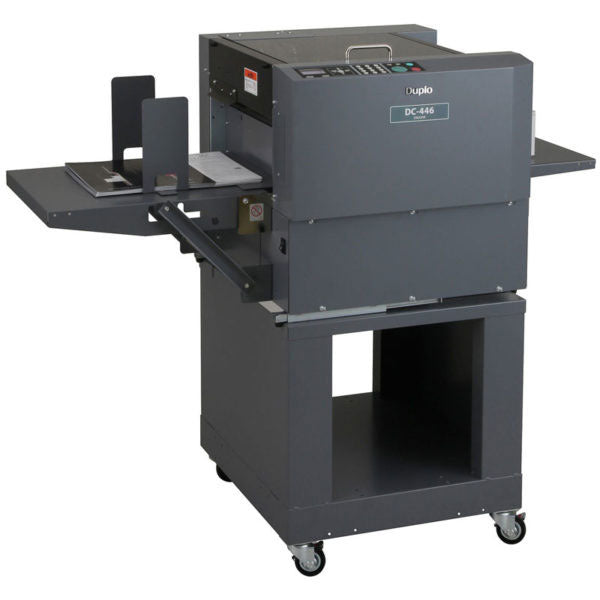

The Duplo DC446 replaces the popular DC445 card creaser. The DC446 offers faster production and more creases per sheet plus an improved 8 belt feed, it is fully automated and easy to use with ultra fast set up.
The DC446 provides a creasing solution for the problem of toner/ink cracking which results when digitally printed work is folded. Creasing is necessary to overcome toner cracking which can plague digitally printed pages and result in a quality professionally finished product. The ability to crease up to 20 times in 0.1mm increments covers a huge range of product types that any customer might require.
Designed to meet the needs of the short to medium run digital or litho print market. Ideal for Greetings cards, leaflets, tickets, brochures, book covers, CD/DVD covers, post cards etc
Why Buy
Step by step touch panel set up stores and recalls the programmes for 30 jobs to save time on repeat product types. A 100mm feed tray capacity and 110mm delivery tray means to DC-446 Du-creaser can run unattended leaving an operator to attend to other tasks. Suction fed removes the risk of marking with an optional air knife to help seperate sheets ahead of feeding if static is an issue. An optional ultrasonic double sheet detector prevents misfeeds. Skew & shrinkage adjustments compensate for any image placement issues.
- Up to 20 creases per sheet in a single pass
- 0.1mm increments and +/- and 0.3mm accuracy
- Creases up to 60 A4 sheets per minute
- 100mm feed pile height - minimises re-load time
- 110mm delivery tray
- Maximum paper width 330.5mm to accomodate 13" x 19" paper sizes
- 110-350gsm nominal paper range
- 30 job programmable memory
- 8 belt air suction feeding system
- Touch Panel
- Optional slitting and perforating tools
- Optional in-line knife folder (crease & fold in one process)
- Optional air knife - provides additional air to improve feed consistency and static issues
- Optional ultrasonic double feed detector - ensures only one document will be processed at a time
- Multiple creasing options to handle a wide range of products
DELIVERIES to UK mainland can either be dispatched on a pallet (strapped & weatherproof with film) or we can arrange for our own team to deliver, install & provide training.
