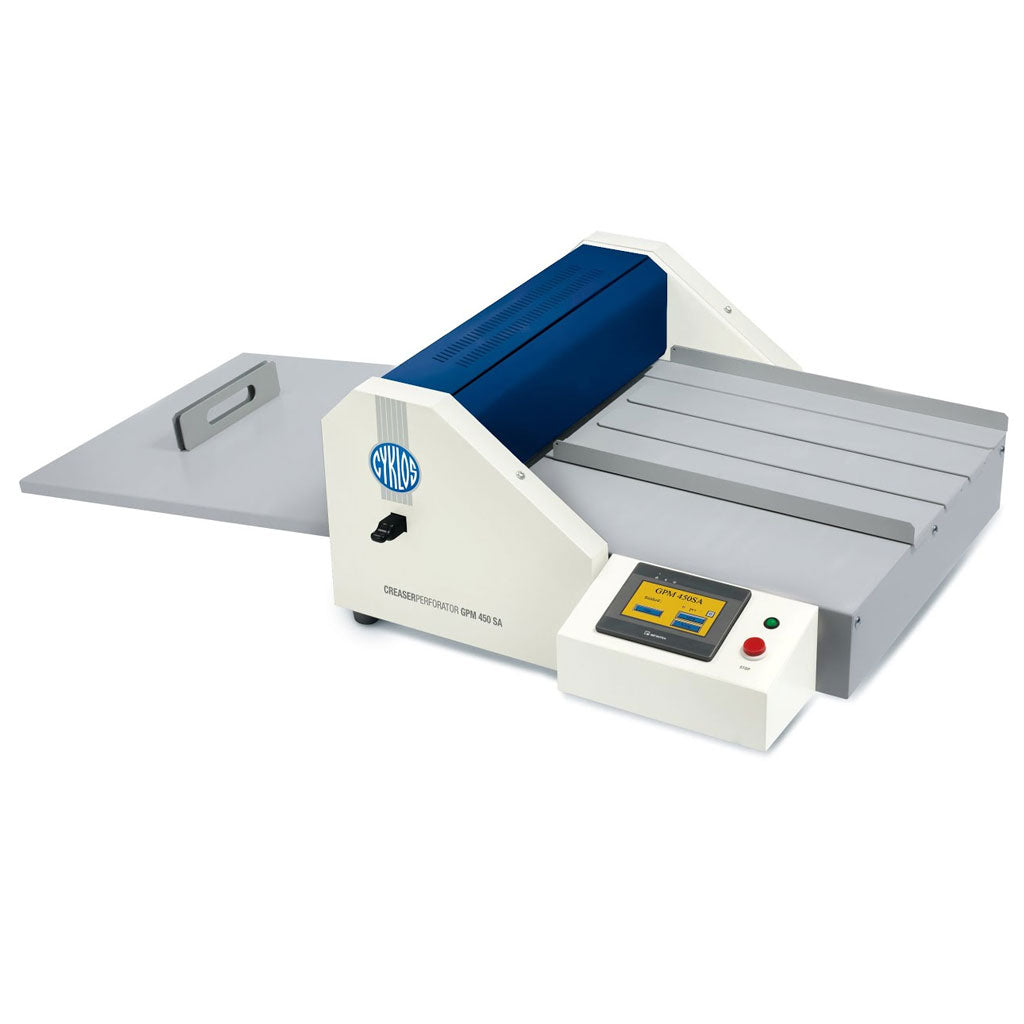

The Cyklos GPM 450 SA is a semi automatic creasing (and perforating) machine with easy 'set up' touch screen controls for fast programming of finishing jobs and easy operation, making creasing and perforating quick and efficient. The machine can be programmed to specific, custom crease or perforating positions in seconds setting up to 15 creases in one pass or even simpler â the GPM450SA comes with unique 'intelligent' pre set positions for standard jobs such as 'half fold', 'Z fold', 'gate fold' and 'spine creasing' on any size of card or paper up to to 450mm width and 400gsm thickness. The machine has been designed to work in today's 'on demand' digital print environment and performs efficiently on digital print toners â with 'creasing without cracking' technology.
Featuring its unique 'intelligent' set up for standard crease/fold positions
Up to 450mm working width (A2 format)
Takes 80-400gsm Creasing or 80-250gsm perforating
High quality digital creasing or perforating
Choice of three crease profiles 1.0 - 1.3 - 1.6mm, simple slide out bar.
Touch screen control panel
Up to 15 creases or perforations possible in one pass
Storage memory for up to 5 jobs
Automatic set up feature for standard crease jobs
Easy superfast setup for book-cover creasing
High quality metal construction
Pre-set 'intelligent' for creasing or perforating!
Half Crease (Single fold)
One third crease (Z fold)
Quarter Crease (Gate fold)
Spine Crease (Book cover fold)
The machine can be pre set in seconds for standard crease positions and works on any size of sheet by automatically measuring the sheet length in conjunction with selected job.
Max. working width 450mm
Max. working length 999mm
Max. stock thickness 400gsm (creasing)
Max. stock thickness 250 gsm (perforating)
Standard Crease profiles 1.2mm/1.5mm/1.8mm
Standard perforation 7 TPI
Max. number of creases per sheet 15
Min. distance between creases 2mm
We are one of the only UK stockists of the Cyklos GPM 450SA Semi Automatic Programmable Creaser.
