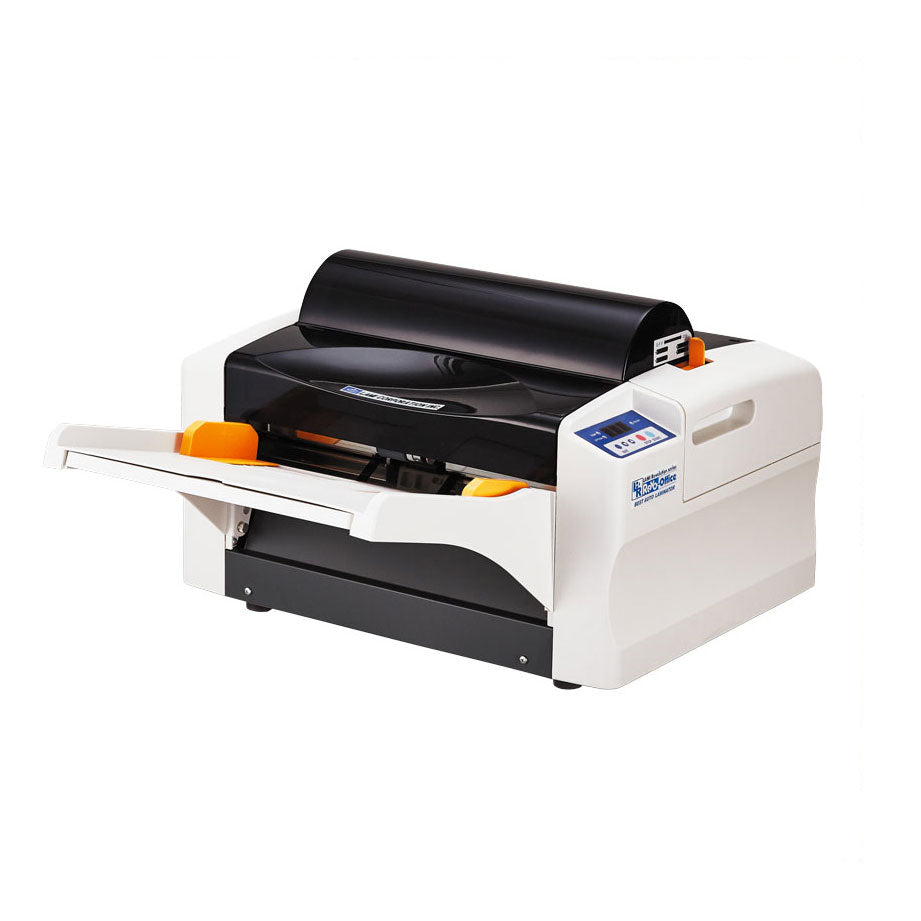

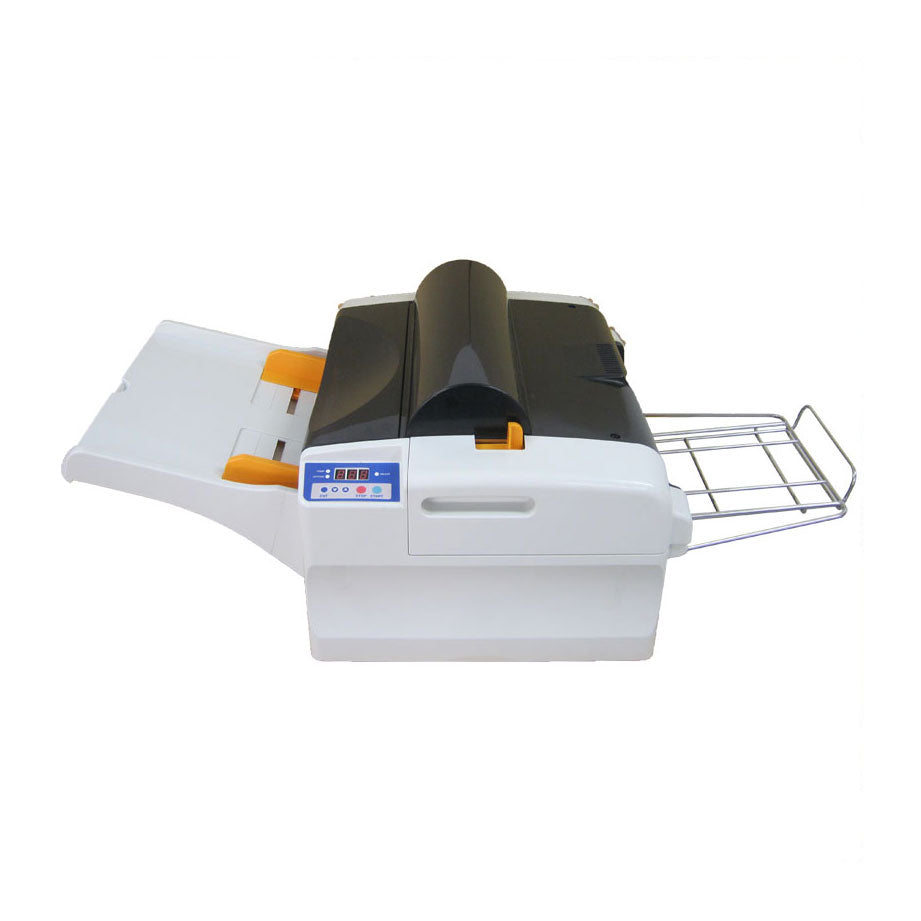

The Revo Office Laminator offers an easy to use, compact, fully automated laminating machine with auto feed for up to A3 paper, auto laminate and auto cut.
The Office remains the most popular model as it offers all the laminating film thicknesses in gloss and matt. It also has the lift out film cassette making it easy to load and can handle continuous use.
It can produce up to four times more finished product than an equivalent high speed pouch laminator plus there is no need for an operator, simply load up to 200 sheets, press go & walk away.

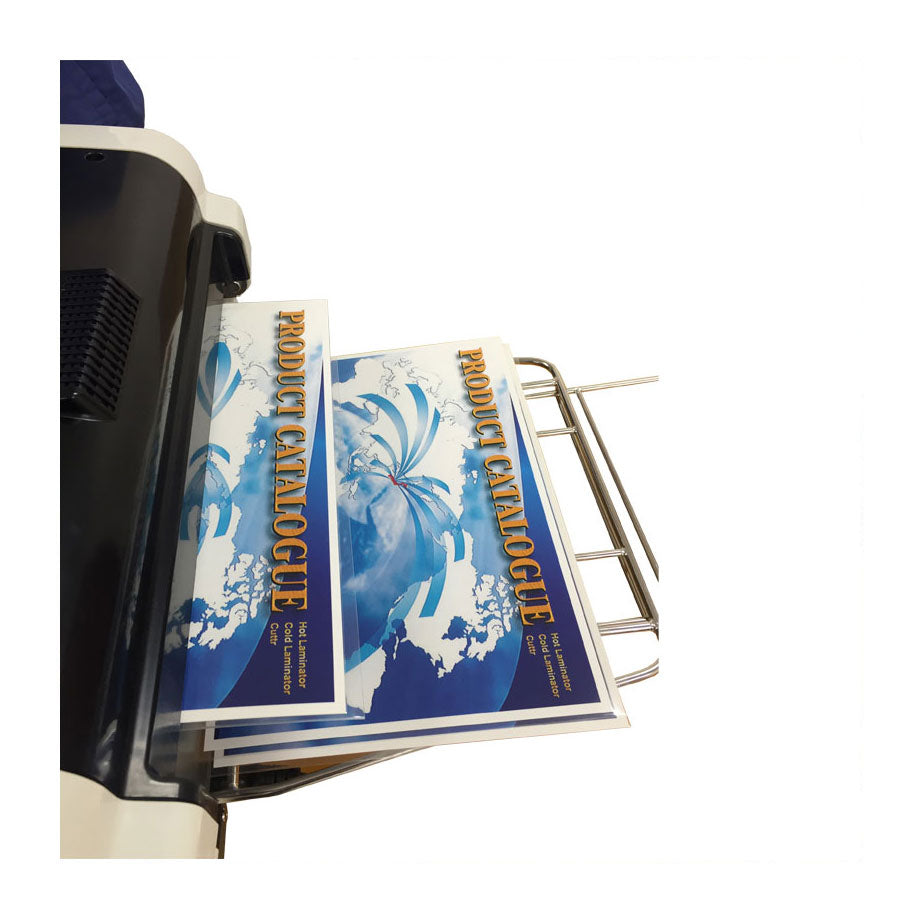

An integrated cross cutting blade at the rear of the machine accurately cuts each finished sheet. No need to enter any data information, a highly sensitive paper sensor automatically detects the leading and trailing edge of each sheet and activates the cutter unit in that position. It will also automatically register different paper sizes so even if you are loading a mixed pile of paper sizes in the same pass each sheet would be delivered to the exit tray cut to the exact size for each sheet .
- Automated feed system via friction roller with solenoid control.
- Auto sheet length recognition
- Auto sheet thickness recognition
- Laminate up to A3, maximum sheet size 420 x 297mm
- Minimum sheet size 210 x 148mm
- Suitable for 60gsm - 250gsm stock

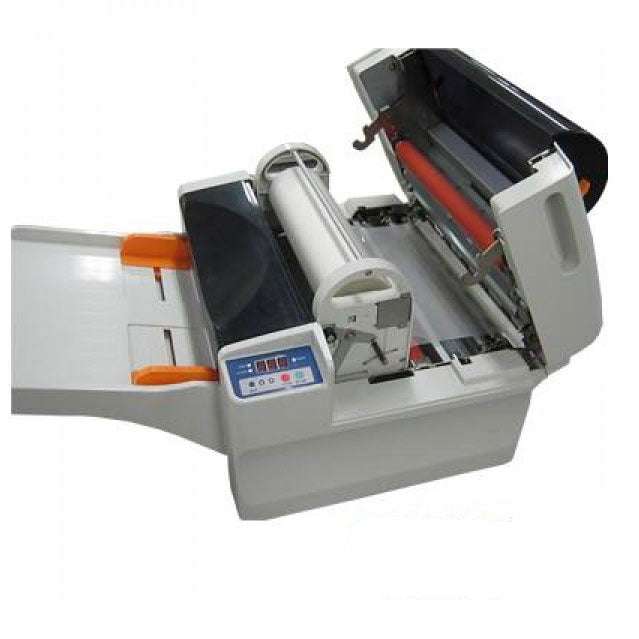

- Unique cassette system for easy loading of laminating films - Simply load the cassette and drop it in - available to order here.
- GLOSS Film Thickness 50, 80, 125 Micron / MATT Film Thickness 80 Micron.
- Warms up in 5 minutes
- Automatic cross blade trimming - Cyclone cutter uses a rotating action to cut the laminates precicely as they travel through the machine in one continuous movement. The blade never goes blunt and requires no maintenance.

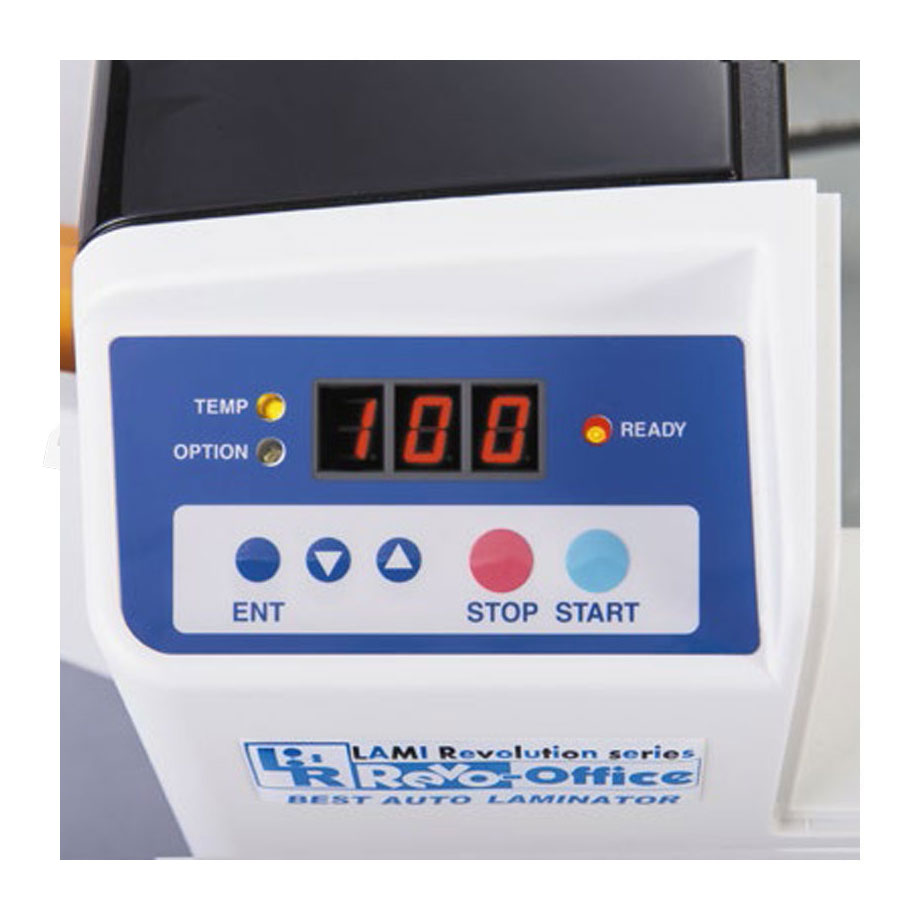

- LCD display with easy use operation panel
- Possible adjustments - front & rear margin 3-10mm
- Produces up to 240 sheets per hour / 1 meter per minute (fixed)
- Load up to 200 sheets - No need for an operator
- Operating temperature 100-120C
- Optional floor stand available
Ideal for schools, colleges, offices, copy shops, print rooms etc
Power supply 240V AC - 13 amp Standard UK plug
H-337mm / W-506mm / D-680mm - Weight 35kgs
DELIVERIES to UK mainland can either be dispatched on a pallet (strapped & weatherproof with film) or we can arrange for our own team to deliver, install & provide training.
Contact us on 01908 563149 / sales@chilvers.co.uk for prices.
