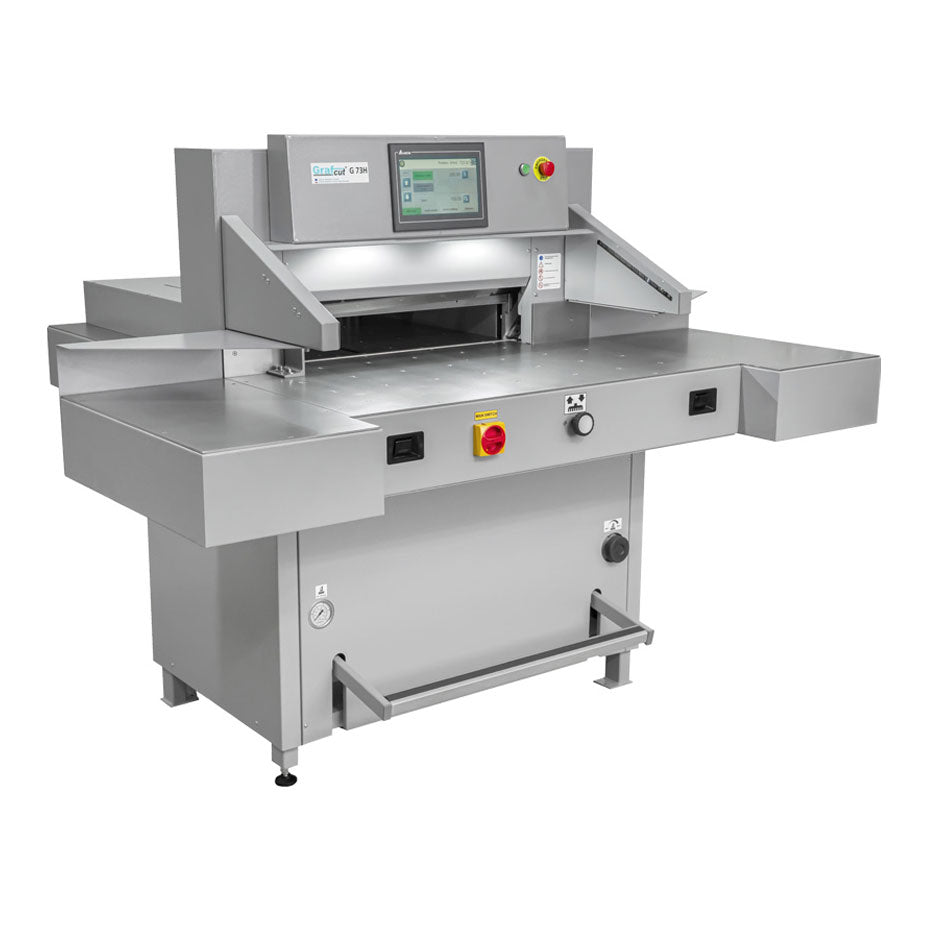

Grafcut G73H Hydraulic Guillotine

The Grafcut G73H Hydraulic guillotine is a solidly built robust and easy to use guillotine.

A fully configured professional guillotine, capable of handling all types of work up to B2 in format. Full hydraulically powered operation of both the knife and clamp ensure effortless cutting performance. Even on the most difficult stock, whilst the adjustable clamping pressures ensure even delicate media is handled without fuss. A programmable Air Table eases the movement of the stack into position by blowing air through the stainless steel bed. Optional side tables allow stacks to be positioned to increase throughput. Open framework with raised IR Safety Curtains allow for easy removal of paper waste into a waste hopper or recycle bin.

A 100 program memory with auto eject function (prevents your hands from going under the blade for document retrieval) removes the need to remember long sequences of cut patterns and means all your repeat jobs can be recalled in seconds.

An Integrated 175mm Colour Touch Screen Controller incorporating operator prompts and a pop-up qwerty keyboard makes for easy and smooth operation. The servo-driven, high speed, fully programmable back gauge moves between cut positions in seconds, optical cutting indication via a clear RED Laser Emitter and electronically controlled paper push function with manual fine positioning, all make the Grafcut G73H an exceptionally highly productive package.

As always safety is assured thanks to the two-handed operation and InfraRed (IR) safety curtain technology that is fitted as standard. Error messaging, adjustable side lay guides and the market leading safety functions further enhance the guillotines appeal as a production machine.

Grafcut guillotines are made in Europe with over 40 years experience.

• Cutting Width - 730mm

• Cutting depth - 710mm (program mode) 730mm (manual mode)
• Cutting Height - 100mm
• Smallest cut - 30mm without false clamp (60mm with falst clamp)
• Fully hydraulic system with adjustable pressure (fluent adjustment on operator panel)
• Powerful hydraulic knife and clamp drive
• Air table front & back as standard
• Front table height - 925mm
• High cutting accuracy - 0,1mm
• Clamping pressure adjustment on touch screen
• Foot pedal for material pre-clamping
• User friendly, fully programmable 7" touch screen with 100 programs/100 steps
• Programs can all be given full names
• Daily cut counter (re-settable) and total counter
• Visual diagnostics of sensors and electronic components
• Optical cutting line indicator
• Stainless steel table surface
• Option to add password, locking the guillotine
• Spare blade included
• Jogger block, 5 cutting sticks, blade change cradle and tool kit
• Side tables (dimensions 375 x 658mm) can be removed

  Dimensions with side tables - 1855 x 1755 x 1460(H) mm
  Dimensions without side tables - 1105 x 1755 x 1460(H) mm
  Weight - 690 kg  3 phase 415V 32A power supply
