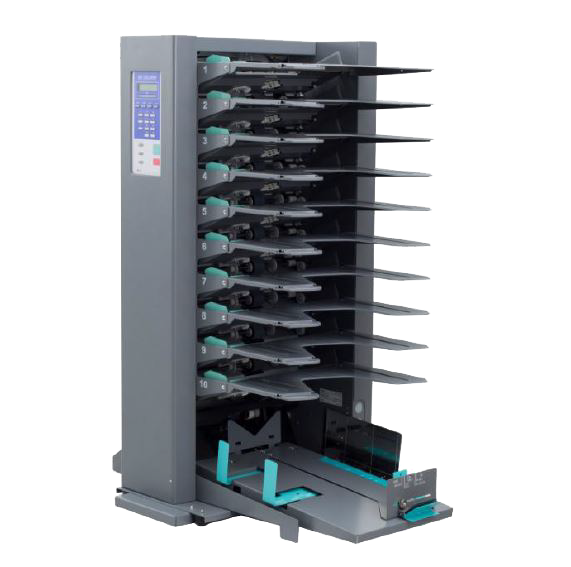

The DFC-102 friction collator is a bench-top, friction fed collating unit with 10 stations, it replaces the popular DFC-100 (10 station) and DFC-101 (10 station) collators. The three-wheel feed system provides reliable feeding of a wide range of material, including certain coated stocks. A number of options increase the versatility of the DFC-102, including integration with the Duplo DBM-150 bookletmaker.
New counting modes enable the DFC-102 to be utilized as a sheet counter. The number of processed sheets is displayed on the LCD display. Other features include count up/count down, repeat collation, test feed, paper empty detection, paper jam detection, and stacker full detection.
Highlights
- User friendly control panel offers several programmable settings - Auto bin select, normal mode, interleave mode, block mode, alternate mode.

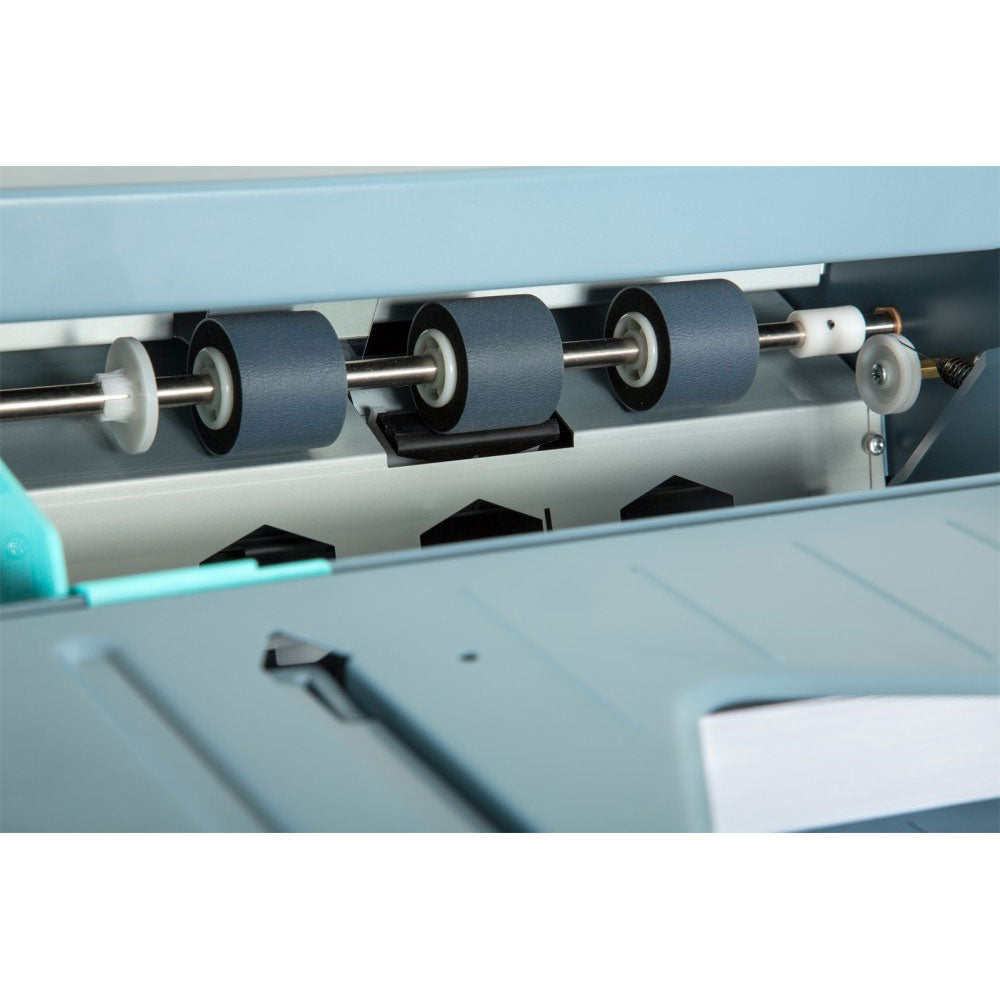

- Triple wheel feeding system provides maximum contact for flawless feeding
- Offers offset collating or straight according to the job
- Covers A5 (160 x 140mm) to SRA3 (320 x 450mm) formats
- Paper range, subject to type, covers 52.3 - 128gsm
- Sensors to detect empty bins, doubles and paper jams
- Adjustable separator and tray pressure on each bin to cope with different materials
- Production speed up to 7,800 sets an hour (A4 long edge feed)
- Optional mobile floor stand.
Typical Applications
- Booklets
- Programmes
- NCR sets
- Manuals
- Product guides
Why buy? For business owners
Robust construction and ease of use make the DFC-102 an ideal entry level collator which can build into a complete booklet making system. The feed system provides reliable paper handling, to include some coated papers. The control unit is simple to understand and offers programmed settings for standard or repeat jobs.
Why buy? For operators

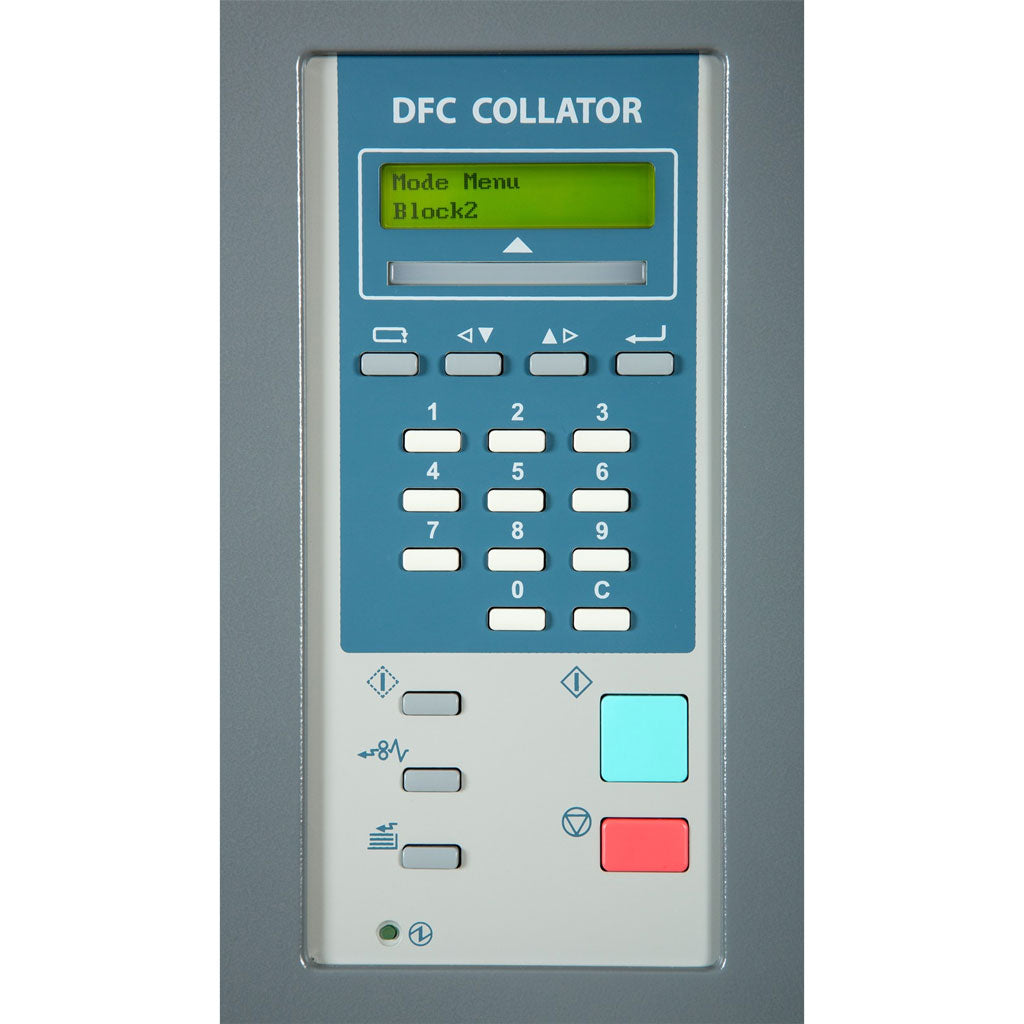

Simple to follow control panel with programmable settings makes for ease of use. Bin capacity of 28mm to hold approximately 280 sheets of 80gsm paper. Stack capacity of 80mm and automatic stop when capacity is reached enables unsupervised operation. Adjustable feeder pressure and three wheel feed system produces a trouble-free feeding system.
Weight: 65 Kg
Dimensions: 820 x 618 x 1000mm (WxDxH)
DELIVERIES to UK mainland can either be dispatched on a pallet (strapped & weatherproof with film) or we can arrange for our own team to deliver, install & provide training.
Contact us on 01908 563149 / sales@chilvers.co.uk for prices.
