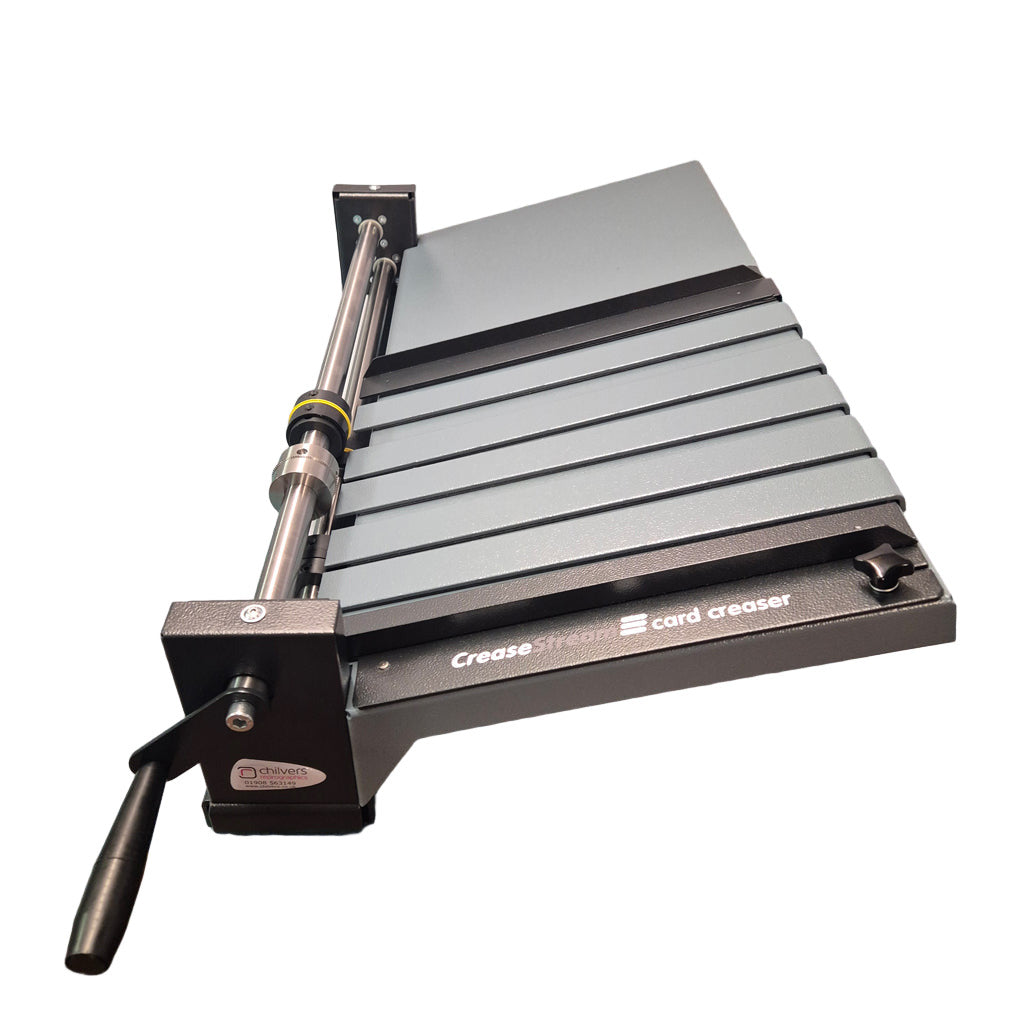

CreaseStream Card Creaser Deluxe

The CreaseStream Card Creaser Deluxe is a desktop creasing machine that is capable of creasing or perforating up to 1,500 sheets per hour. The Deluxe makes it possible to manually hand wind up to 4 creases simultaneously, easily outperforming manual matrix-platen type machines. The innovative creasing technology used in the CreaseStream Card Creaser Deluxe will produce excellent quality creasing that eliminates fibre cracking 100%.

Patented creasing technology gently manipulates and stretches the media to eliminate cracking during the folding stage. Adjustable magnetic side lays guide the media into the creasing tools. Crease tools can be reversed to crease positively into or negatively out of the sheet. This feature is very useful for fold patterns that require a positive and negative crease in the same pass, for instance a Z Fold.

The Creasestream Deluxe can take sheet sizes up to 520mm ideal for larger menus, brochures etc.

• Rotary card creasing machine.

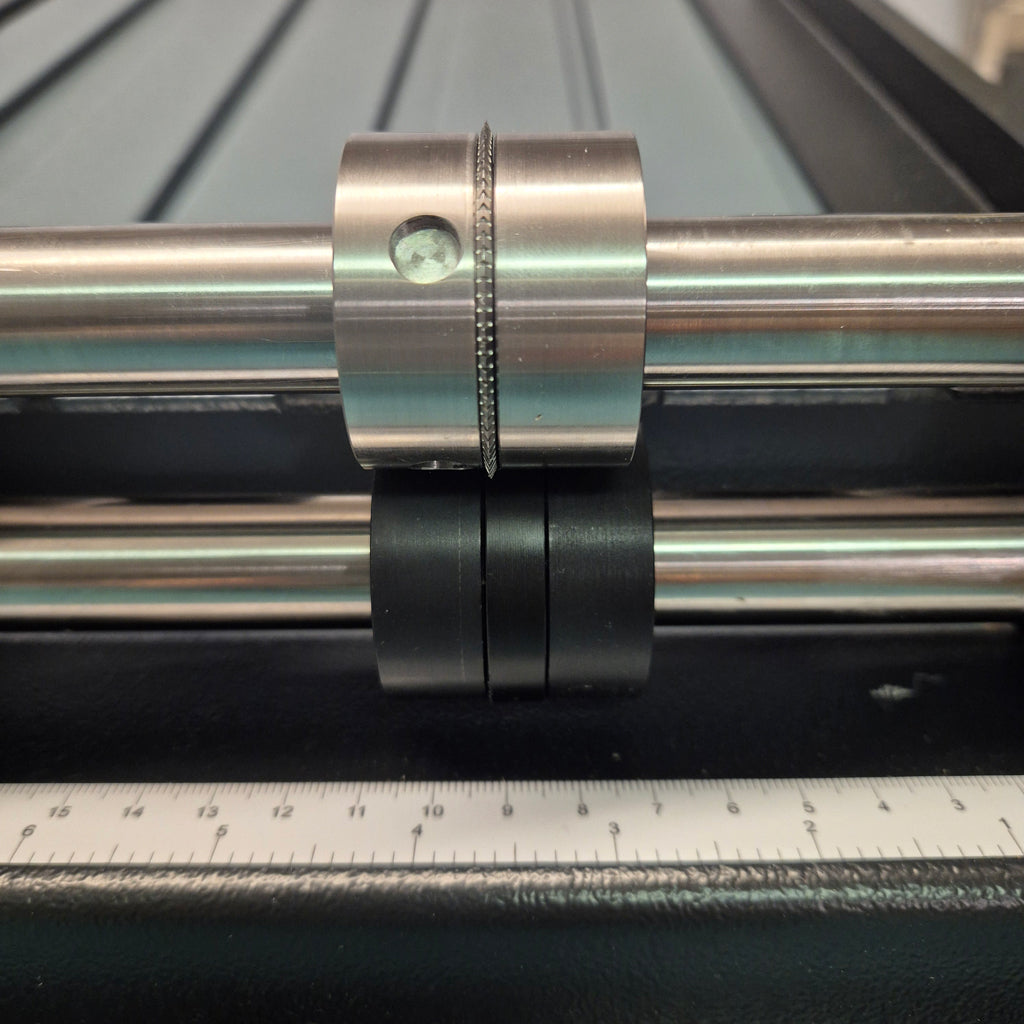

• Can be purchased with two creasing tools or two perforating tools or one of each - please select your option from the dropdown box
• Extra tools can be added up to a maximum of 4.
• Patented crease technology that 100% eliminates fibre cracking.
• Crease up to 1,500 sheets per hour.

• 6 Times faster than a handle or foot pedal operated creaser.

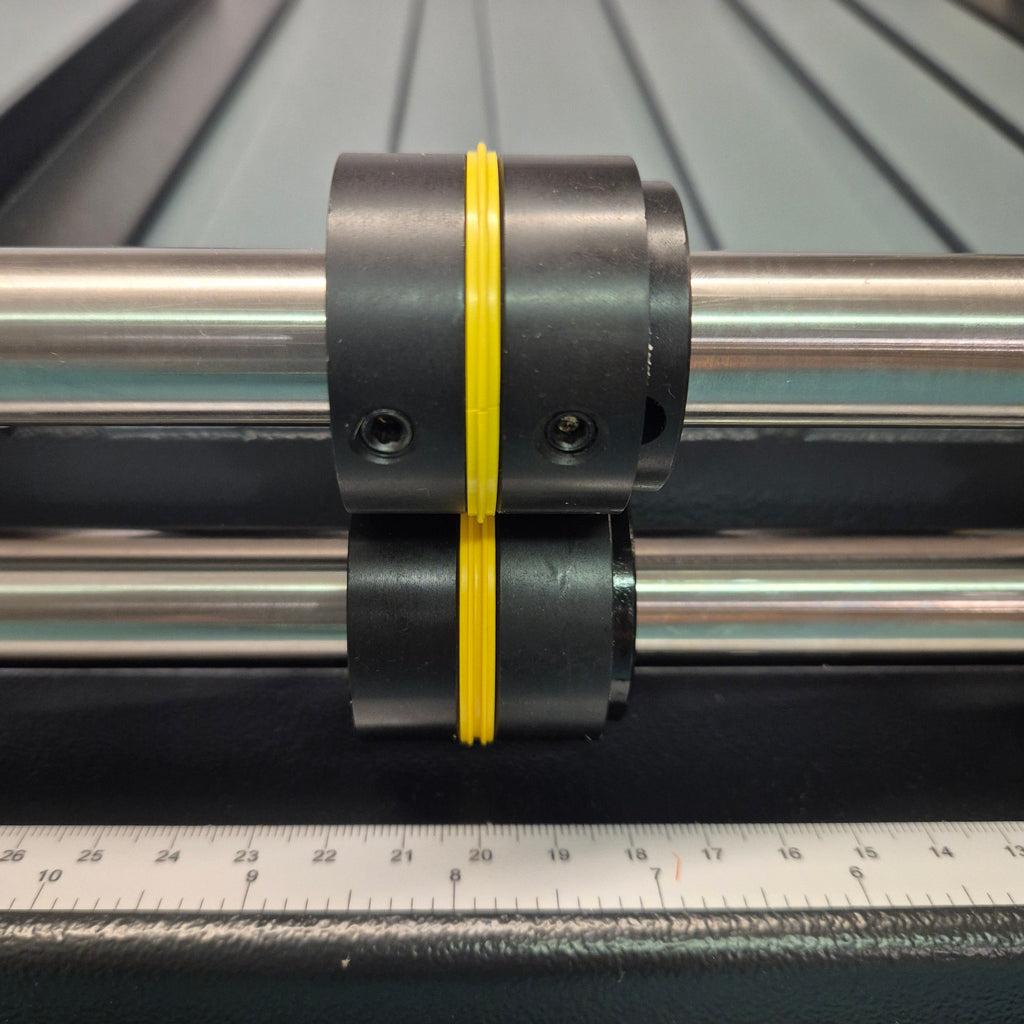

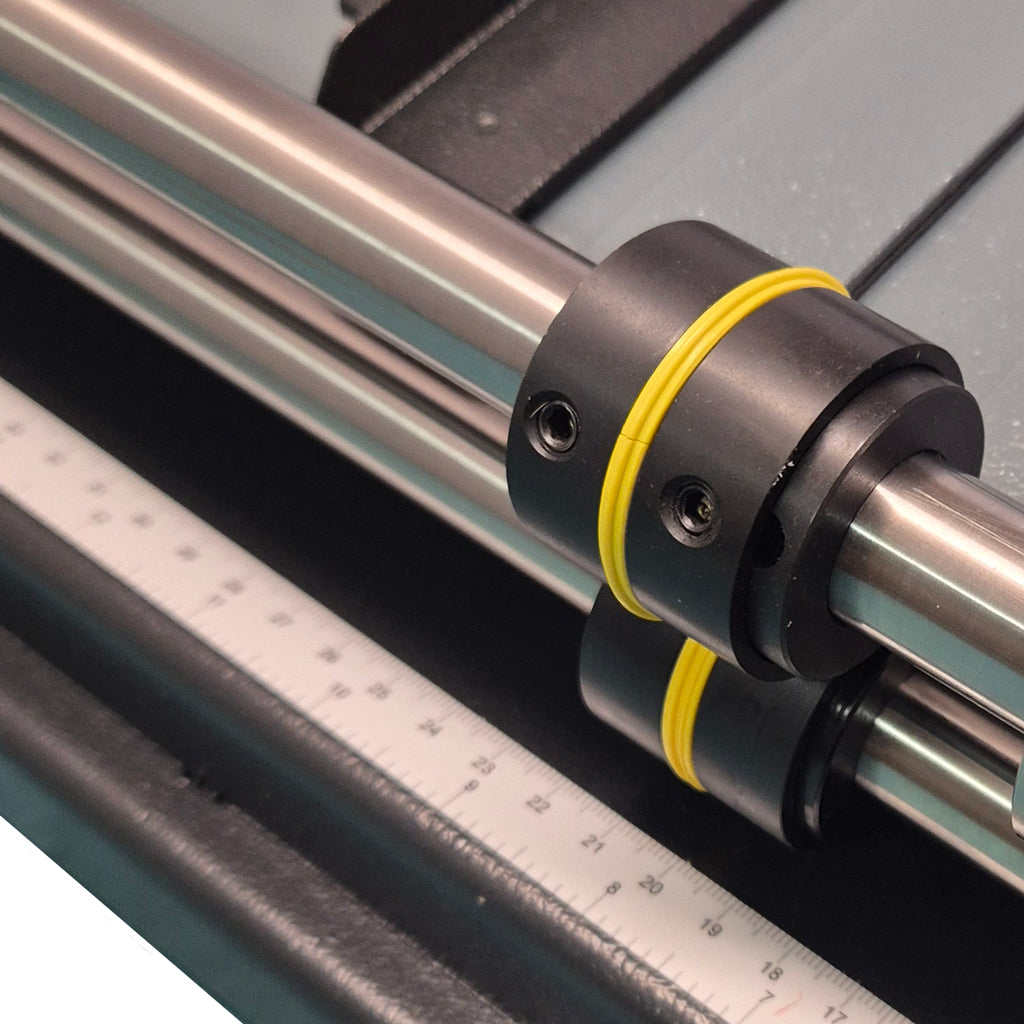

• Comes with two creasing tools with crease ribs
  ORANGE = Light paper stocks. 100-170 gsm
  BLUE = Medium-Heavy stocks 170-300 gsm
  YELLOW = Heavy .stocks 300-350 gsm
• Creasing Depth – 0.4mm.
• Apply multiple creases in the same pass.
• Crease positively or negatively to suit your application (In the same pass if needed)
• Hand crank operation – requires no electrical power.
• Ideal for Low Volume Production of Greeting Cards, Menu’s & Folded Leaflets and perforating.
• Crease up to 350gsm Stock.
• Robust All Steel Construction.

• Minimum Sheet Size – 80 x 120mm.
• Maximum Sheet Size – 520 x 520mm.
• Stock Range – 100 – 350gsm.

• Optional - Support Rollers not normally required.
• Dimensions (L x W x H) – 730 x 350 x 170mm / Weight – 16kg.

All CreaseStream machines feature the world’s first and only rotary creasing technology, developed by printers for printers. A soft creasing rib gently stretches the material to create a deep, defined crease without damaging fibres in the stock. Innovative feeding technology maintains a fast output, no matter how many creases you need.
