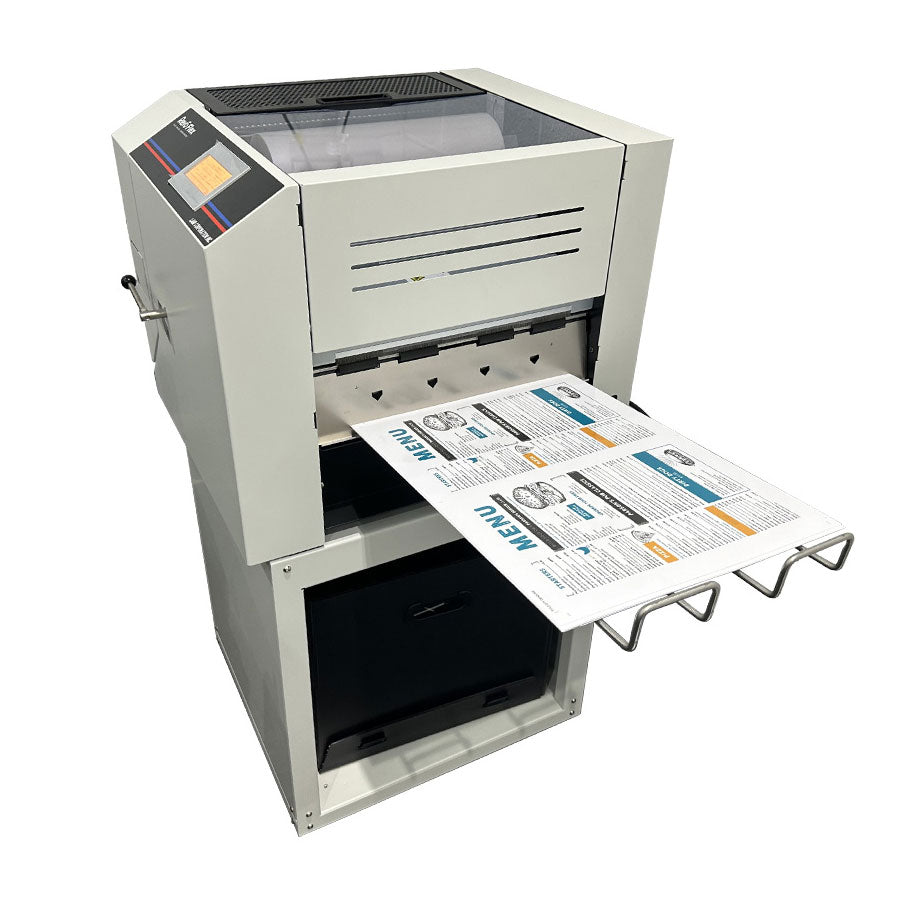

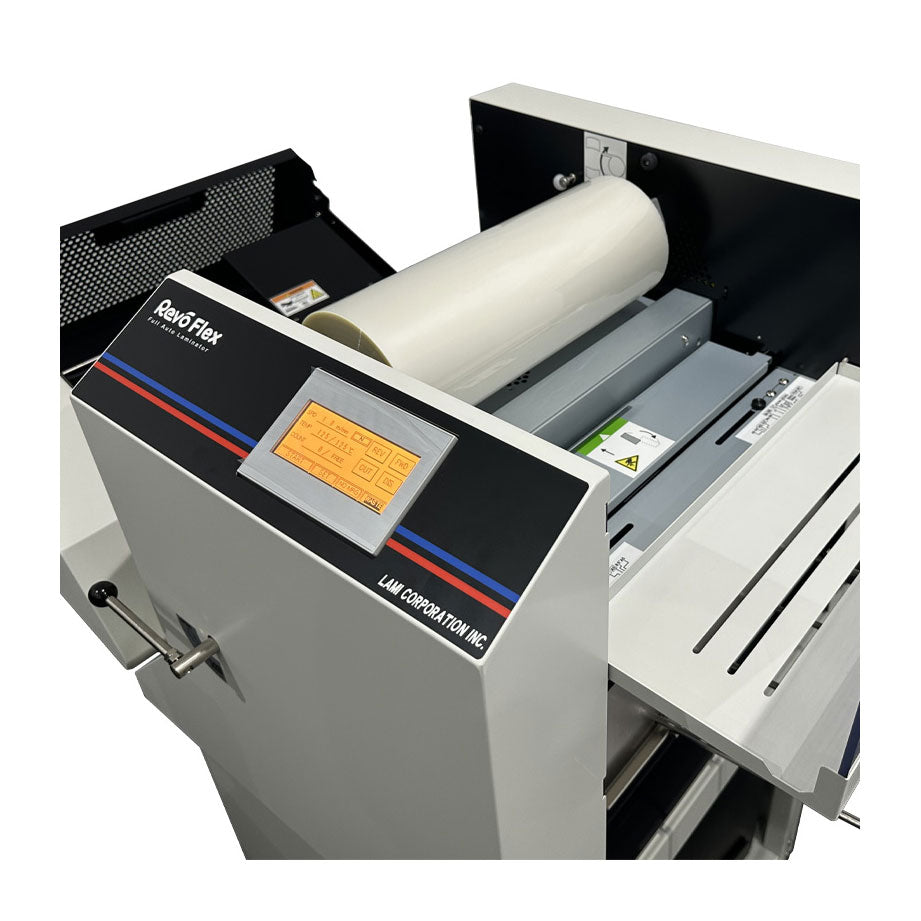

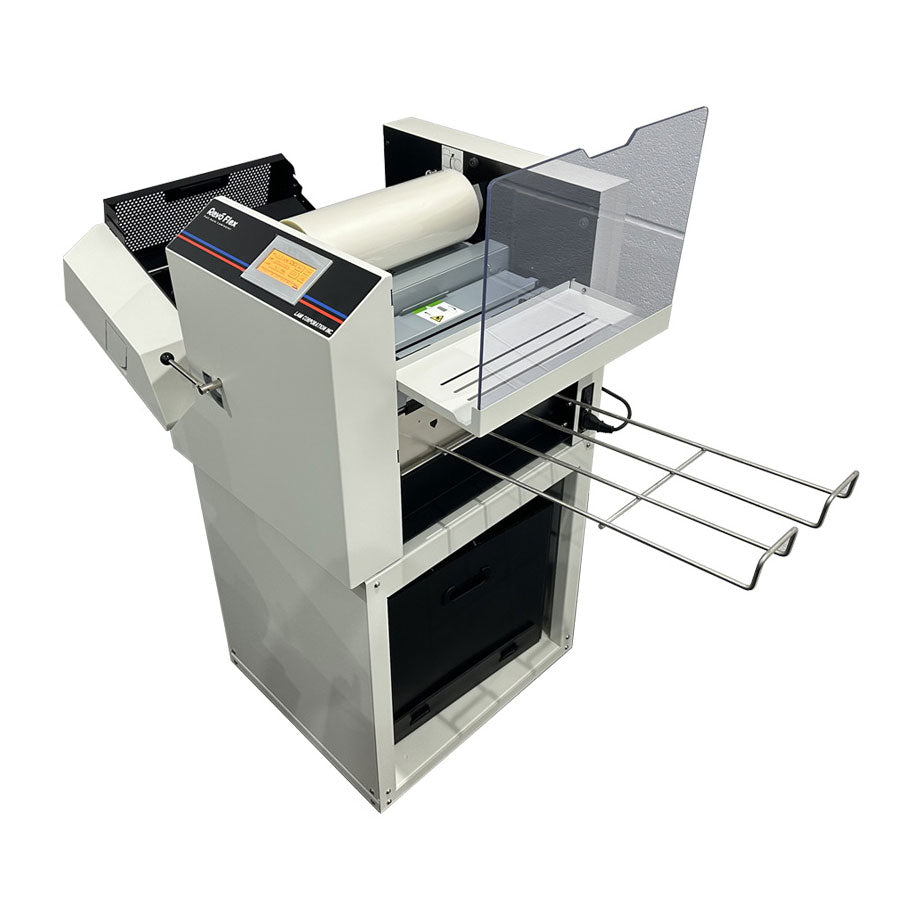

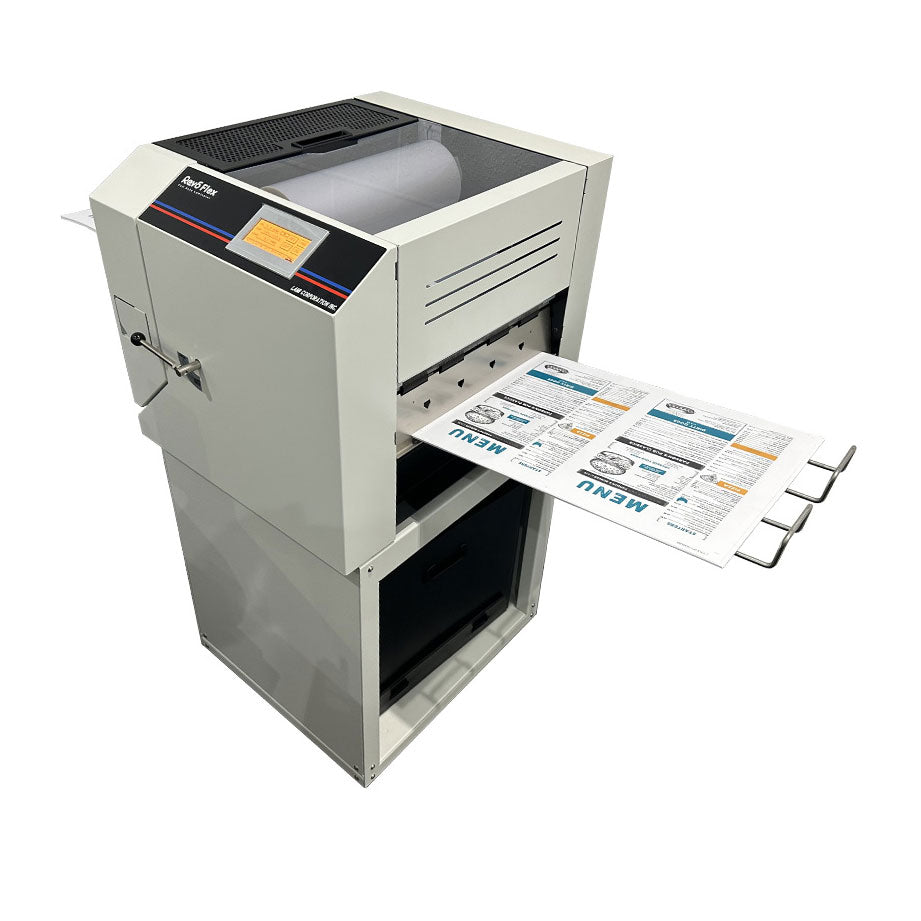

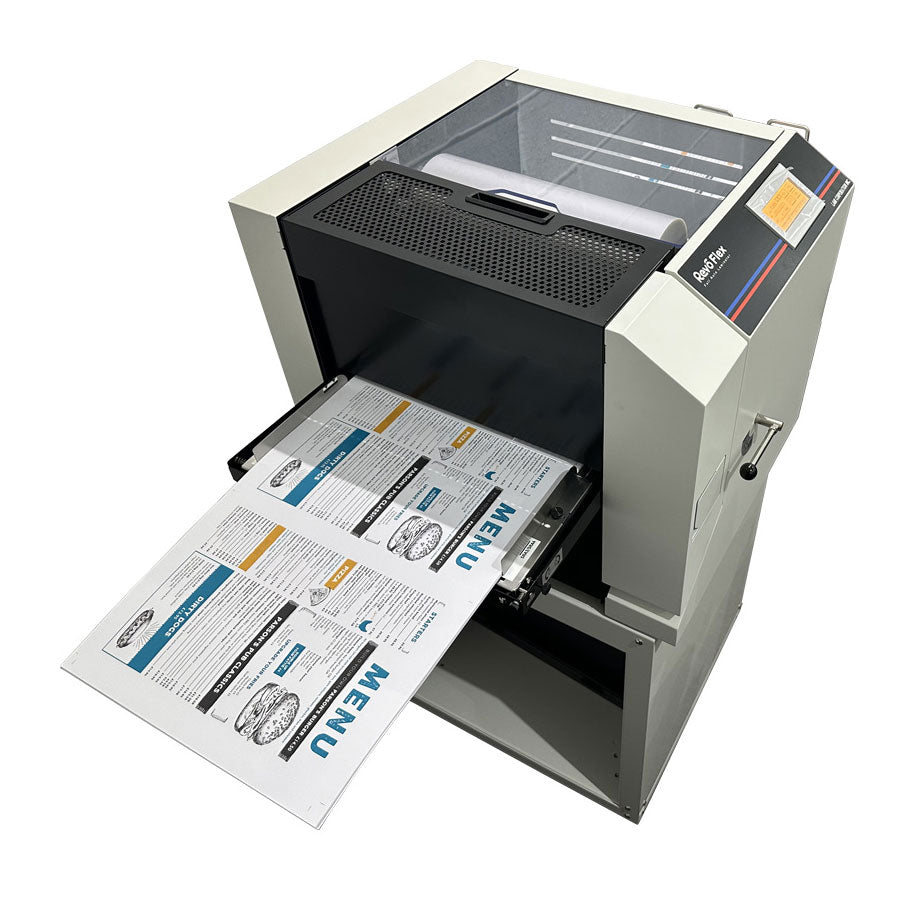

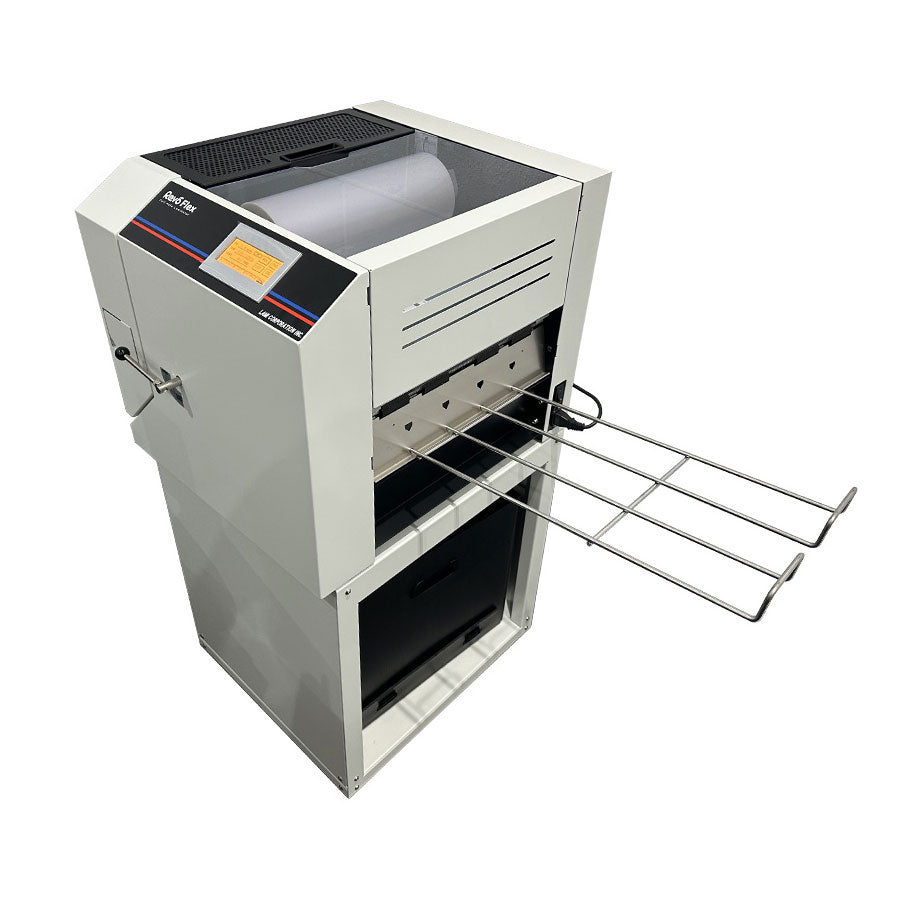

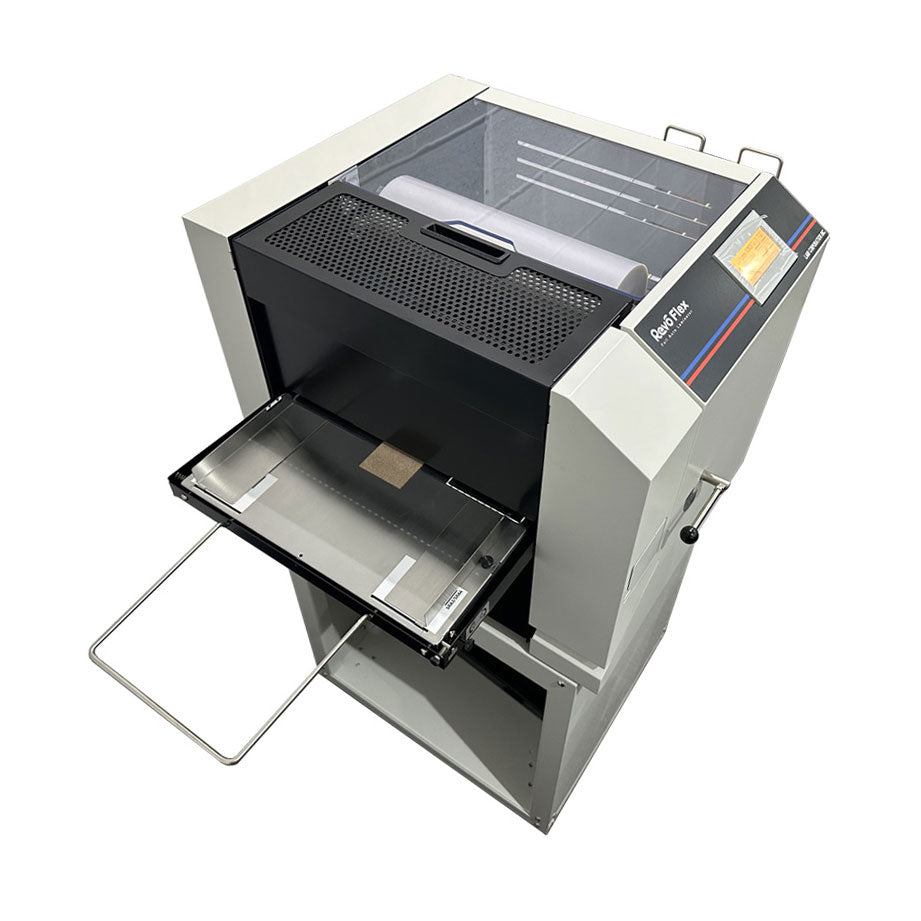

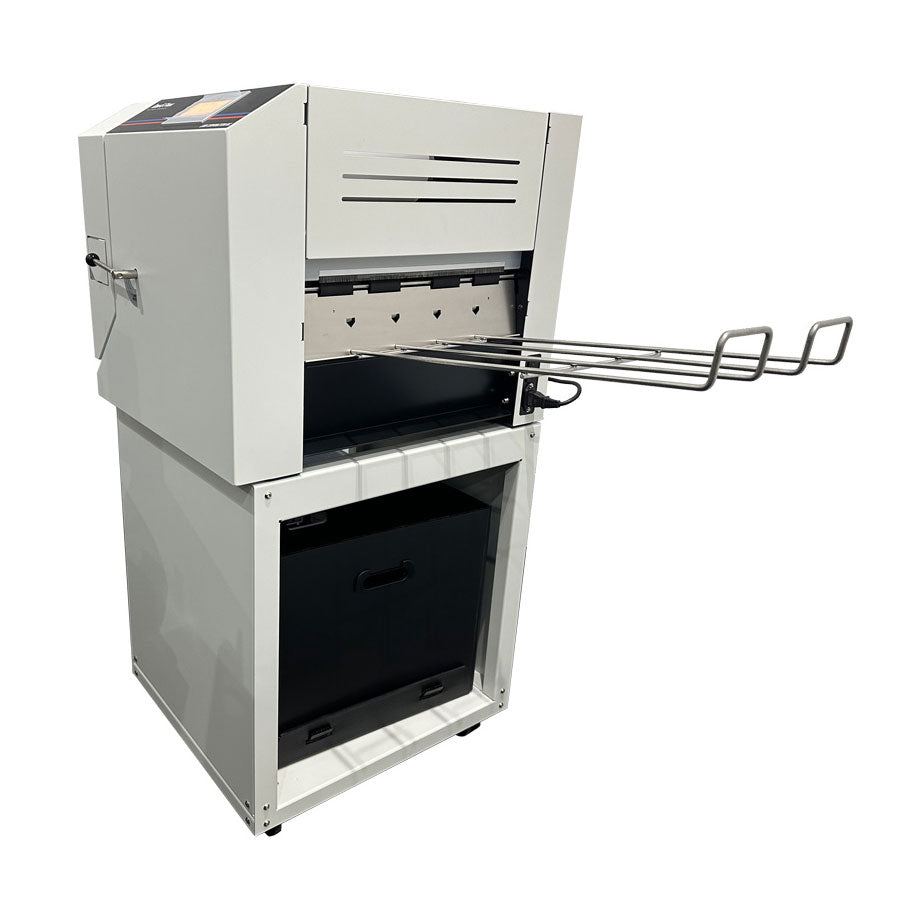

Revo Flex - Automatic Laminator with Side Trim

The Revo Flex is a revolutionary new development by Lami Corporation of Japan. The most advanced fully automated laminating solution on the market. Handling the widest range of materials from 80 to 350gsm+ in sizes from A5 to SRA3 with zero operator setup. Create borderless double sided laminates utilising the new 4 sided trimming function and bypass the guillotine.

The Revo Flex is designed for enhanced efficiency, allowing you to complete laminating jobs more quickly and effortlessly. It eliminates the need for additional processing to trim all four sides of a sheet, streamlining the entire laminating process. The Flex also offers precise customisation options, giving you control over the size and positioning of the cuts in both X & Y orientation. This enables you to achieve perfect flush cuts or create custom size encapsulation borders according to your specific requirements.

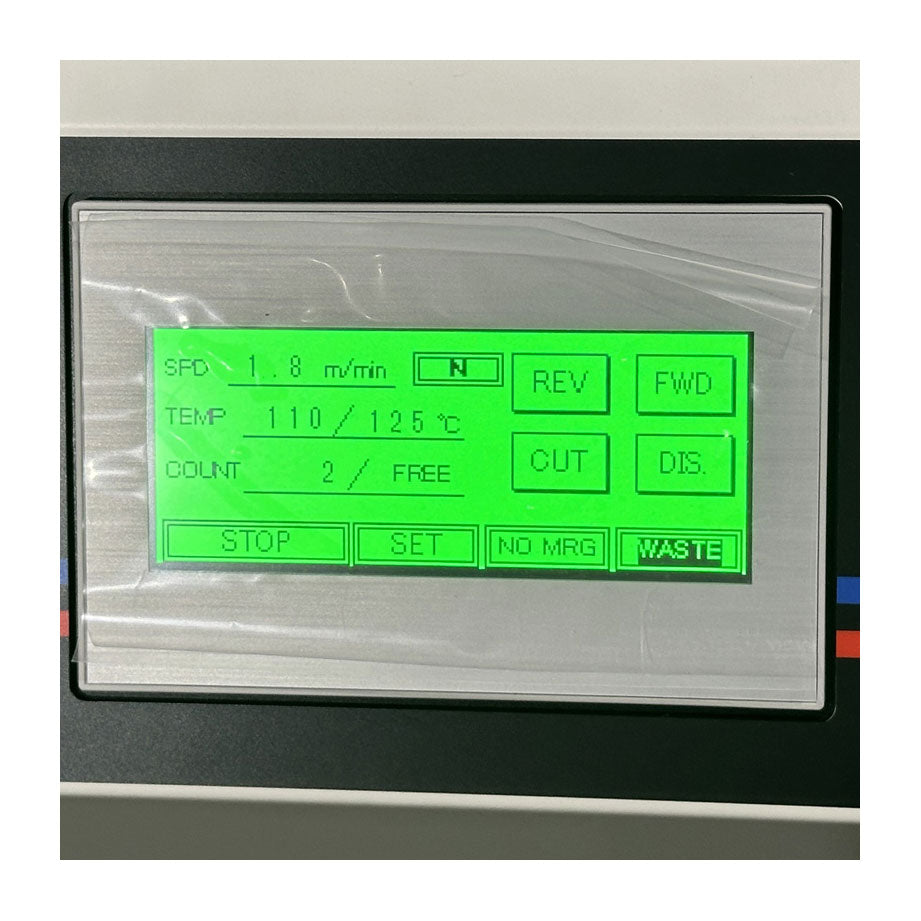

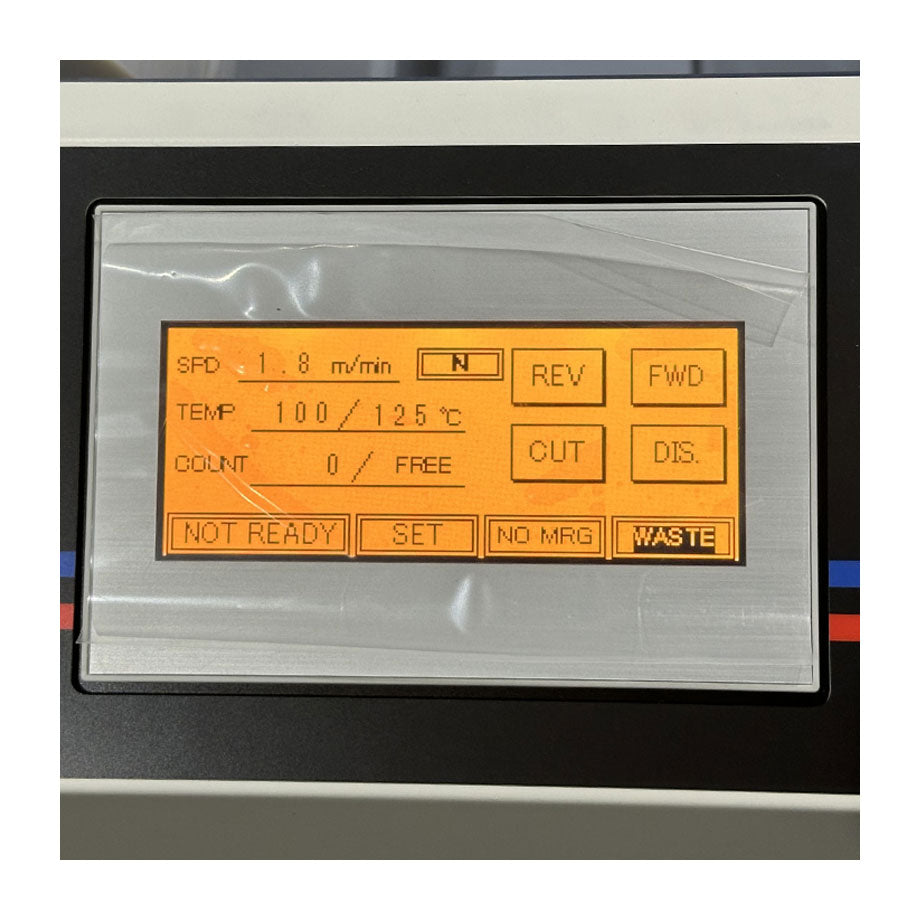

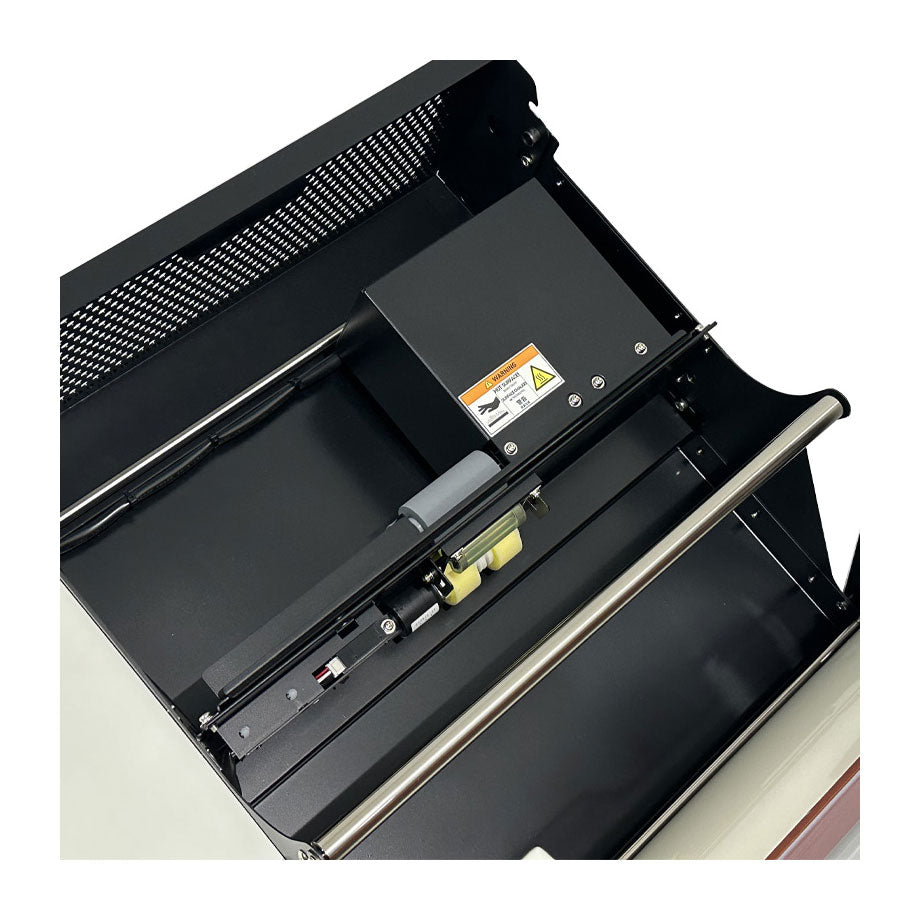

In addition to its advanced trimming system, the Revo Flex incorporates cutting-edge technology for superior laminating results. Adjustable speed, pressure and feed settings accommodate different sheet weights and film thicknesses to ensure high quality results on the widest range of materials. The newly designed feed system guarantees perfect feeding of any media whilst also preventing double feeding with its unique stop clutch design. With the Revo Flex you can experience a new era of laminating that combines automation, precision and efficiency.

Perfect for Commercial Print, Councils, Corporate Offices, Colleges, Universities, Copy Shops & on-demand printers.

The Revo FLEX Difference

The major advantage of the Revo Flex is the ability to automatically trim all 4 sides of your media to create either finished products or accurate guillotine ready laminated sheets. The Flex provides choice, allowing you to either laminate SRA3 sheets with clean flush cut borders on all 4 sides ready for guillotining; Or, guillotine your freshly printed media unlaminated for easier handling before processing through the Flex with 4 sided trim to create finished client ready products.

The Revo Flex uses PET films as opposed to BOPP, meaning you can laminate using thicker films up to 250 micron. Furthermore, PET films are more resilient than BOPP, making them ideal for heavily used items such as menu’s, posters, signage or gift tags. PET films also offer life long protection, ideal for keep sakes such as Memorial Cards.

The Revo Flex removes all the effort, stress and time from double sided laminating, simply load up, hit go and walk away.

Specifications

• Fully Automated Double Sided Laminating
• Automatically Trims all 4 Sides to Create either a Finished Product or a Guillotine Ready Sheet
• Produces Guillotine Ready SRA3 Laminated Sheets or Customer Ready Laminated Sheets
• No Special Skills or Training Needed
• Double Side Laminating & Encapsulation is Possible
• Produce up to 480 Finished Laminates Per Hour
• Perfect Sheet Alignment with Uniform Border (Adjustable)
• Zero Film Waste Mode - Economical to Run
• Production Speed – Up to 240 SRA3 Guillotine Ready Sheets Per Hour (480 A4 sheets)
• Cycling Speed – Adjustable up to 2.0 Metres per Minute
• Maximum Sheet Weight – 350gsm
• Minimum Sheet Weight – 64gsm
• Maximum Sheet Size – 330mm x Infinite Length
• Minimum Sheet Size – 196 x 145mm
• Laminating Temperature Range – 0/150 Degrees Celsius
• Warm Up Time – Under 5 Minutes
• Laminate Film Types – Gloss & Matt

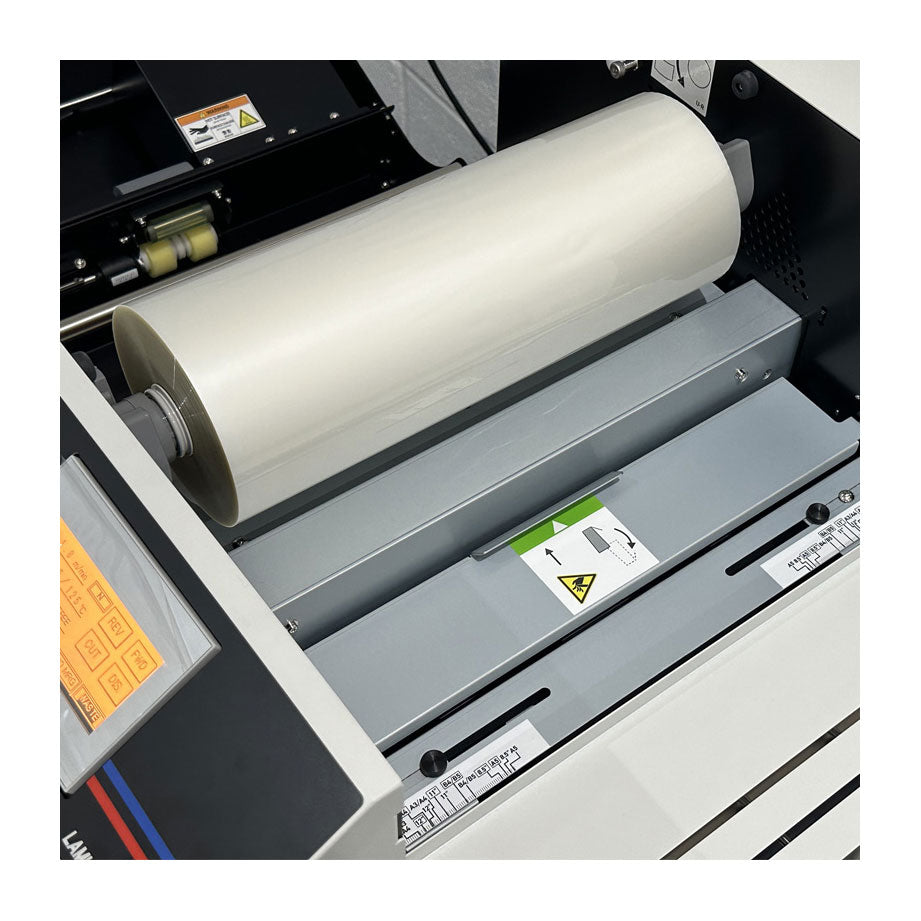

• Film Thicknesses – 38, 50, 80, 125 Micron
• Loading Method – Pull Rollers with Loading Board
• Feeding Method – Automated
• Cutting Method – Rotary Blades (Both X & Y) Self Sharpening
• Borders – Flush Cut or Adjustable from 1 to 10mm
• Waste Free Mode – Yes – Perfect One Cut Between Sheets when Leaving a Border
• Power Requirement – 240V 13A
• Power Consumption – 1,150W
• Gross Weight – 70kgs
• Dimensions (W x D x H) – 1,340 x 570mm x 1,080mm (Setup & Operational)

Typical Applications

• Double Side Laminating Applications (Menu’s, Order of Service Cards etc)
• Protect & Enhance your Prints
• Posters
• Signage
• Site Plans
• Instructional Documents
• General Encapsulation
• Protection of Documents in a Ring Binder (Extended Border)

Lami Corporation is a Japanese manufacturer of high end laminating solutions established in 1980. The idea of the Revo series of automated laminators is to offer a solution to replace traditional pouch laminating. Push button simplicity with Japanese build quality, a perfect combination.
